| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Profiled Litz Wire 0.05mmx1740 PI Insulation Rectangular Stranded Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Cover Material: | PI |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 180 | Key Word: | Profiled Litz Wire 0.05mmx1740 PI Insulation Rectangular Stranded Wire |
| No. Of Strands: | 1740 | ||
| Highlight: | profiled copper litz wire,rectangular copper litz wire,0.05mm copper multi strand wire |
||

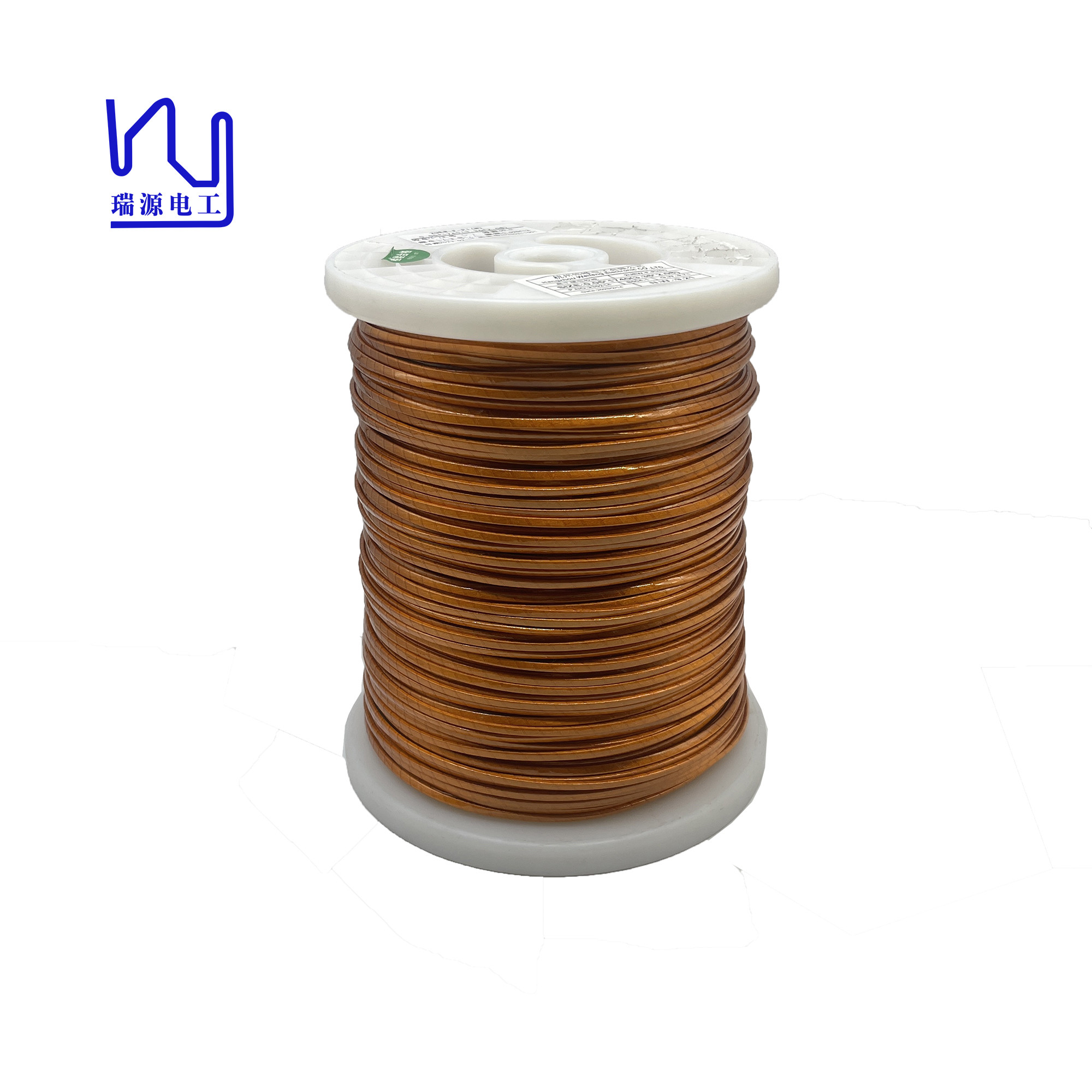

Profiled Litz Wire 0.05mmx1740 PI insulation Rectangular Stranded Wire
Polyimide film is a high temperature, high strength, high resistance bonding material. It has excellent electrical, mechanical and chemical properties. Polyimide films are very chemically resistant and can withstand extreme temperatures and environments. The manufacturing process of flat square wire is a highly automated process. The production line can continuously produce wire rods in rolls or cut to length. The wire can pass through the equipment smoothly, making the finished wire relatively flat and ensuring high-quality production.
| Characteristics | Technical requests | Test Results |
| Outer diameter of single wire(mm) | 0.056-0.069 | 0.058-0.062 |
| Conductor diameter(mm) | 0.05±0.003 | 0.048-0.050 |
| Width(mm) | 3.3-3.48 | |
| Thickness(mm) | 2.14-2.26 | |
| No. Of strands | 1740 | 1740 |
| Pitch(mm) | 60±3 | √ |
| Maximum Resistance(Ω/m 20℃) | 0.005885 | 0.005335 |
| Dielectric strength(V) | 6000 | 13500 |
| Solderability | 390±5℃, 12s | √ |
| Tape(overlap %) | Min.50 | 54 |
|
Name |
Profiled Litz Wire 0.05mmx1740 PI insulation Rectangular Stranded Wire |
|
Key word |
Mylar litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
1740 |
|
Type |
Profiled Litz Wire 0.05mmx1740 PI insulation Rectangular Stranded Wire |
