Name: Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Copper litz wire
Price: Negotiable USD
Availability: InStock

Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Custom USTC White Silk Covered Round Enameled Copper Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Custom USTC White Silk Covered Round Enameled Copper Litz Wire
No. Of Strands:	400
Highlight:	litz round enamelled copper wire , custom ustc wire , white silk covered ustc wire

Product Description

Custom USTC white silk covered round enameled copper litz wire

As a high-quality wire material, silk covered litz wire is widely used in various industries. In the electronics manufacturing industry, silk covered litz wires are mainly used for the connection of circuit boards and the production of windings, which can ensure the stability and safety of electrical equipment.

In the household appliance industry, silk covered litz wires are not only used for the connection of circuit boards, but also can play their advantages in motor manufacturing and other aspects.

Datasheet for nylon6
Model	Lot No	Tensile strength(CN/dtex)	CV value	Breaking Elongation	CV value
93dtex/48f	8501	4.31	3.84	66.6	3.12
	8502L	4.27	3.87	67.5	3.53

Characteristics	Technical requests	Test Results
Conductor diameter(mm)	0.10±0.003	0.098-0.10
Overall diameter(mm)	Max.3.44	2.7	2.82
No. Of strands	400	√
Pitch(mm)	47±3	√
Maximum Resistance(Ω/m 20℃)	0.00595	0.00547	0.00546
Minimum Breakdown Voltage(V)	1100	3300	3200
Solderability	390±5℃, 12s	√
Pinhole(faults/6m)	Max. 80	28	30

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

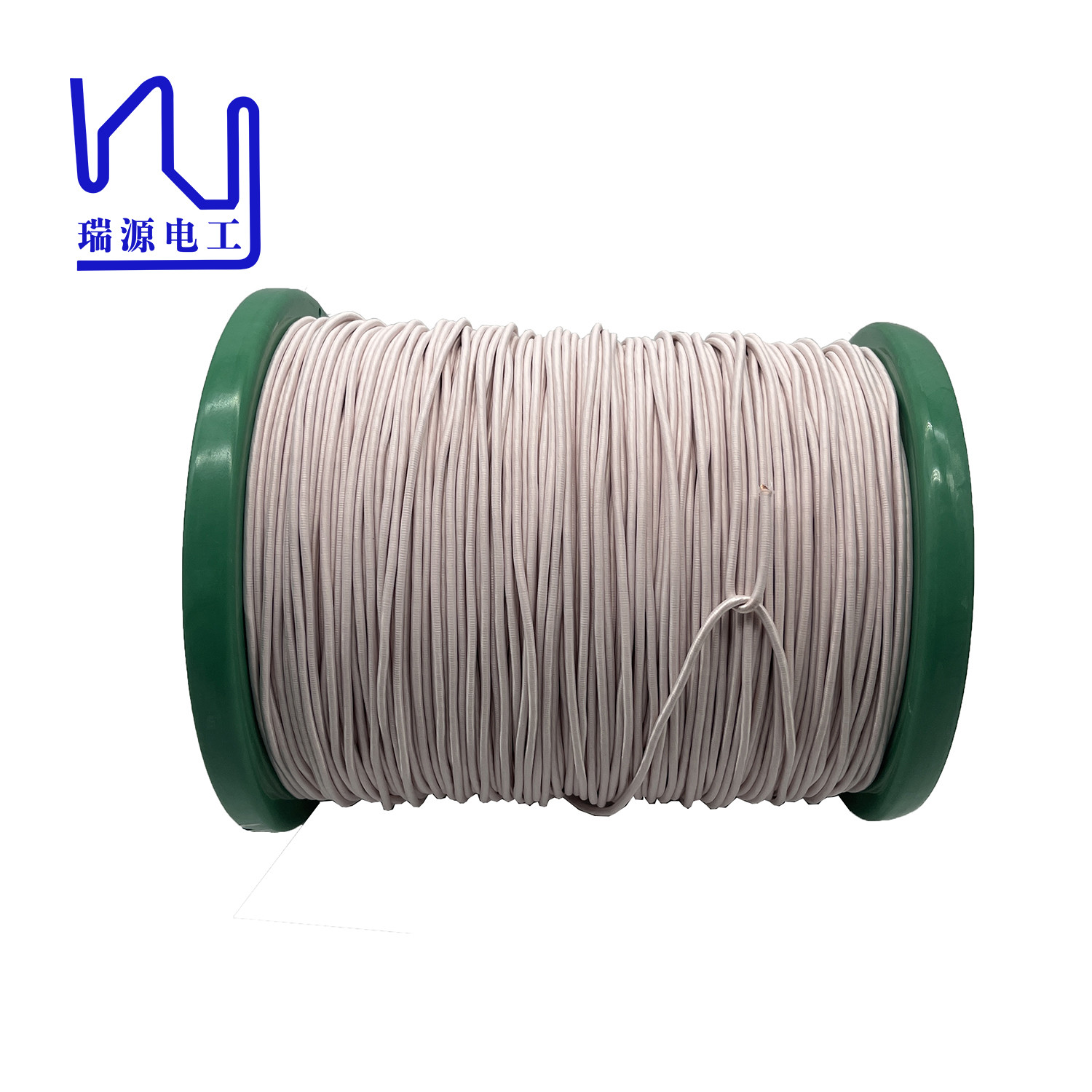

Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire 0

Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire 1

Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire 2

Custom Ustc Wire White Silk Covered Round Enameled Copper Litz Wire 3
