| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC 0.1mm 0.2mm Custom Stranded Copper Wire Nylon Served Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 0.1mm 0.2mm Custom Stranded Copper Wire Nylon Served Litz Wire |
| No. Of Strands: | 400 | ||
| Highlight: | 0.1mm ustc litz wire,nylon served ustc litz wire,0.2mm ustc wire |
||

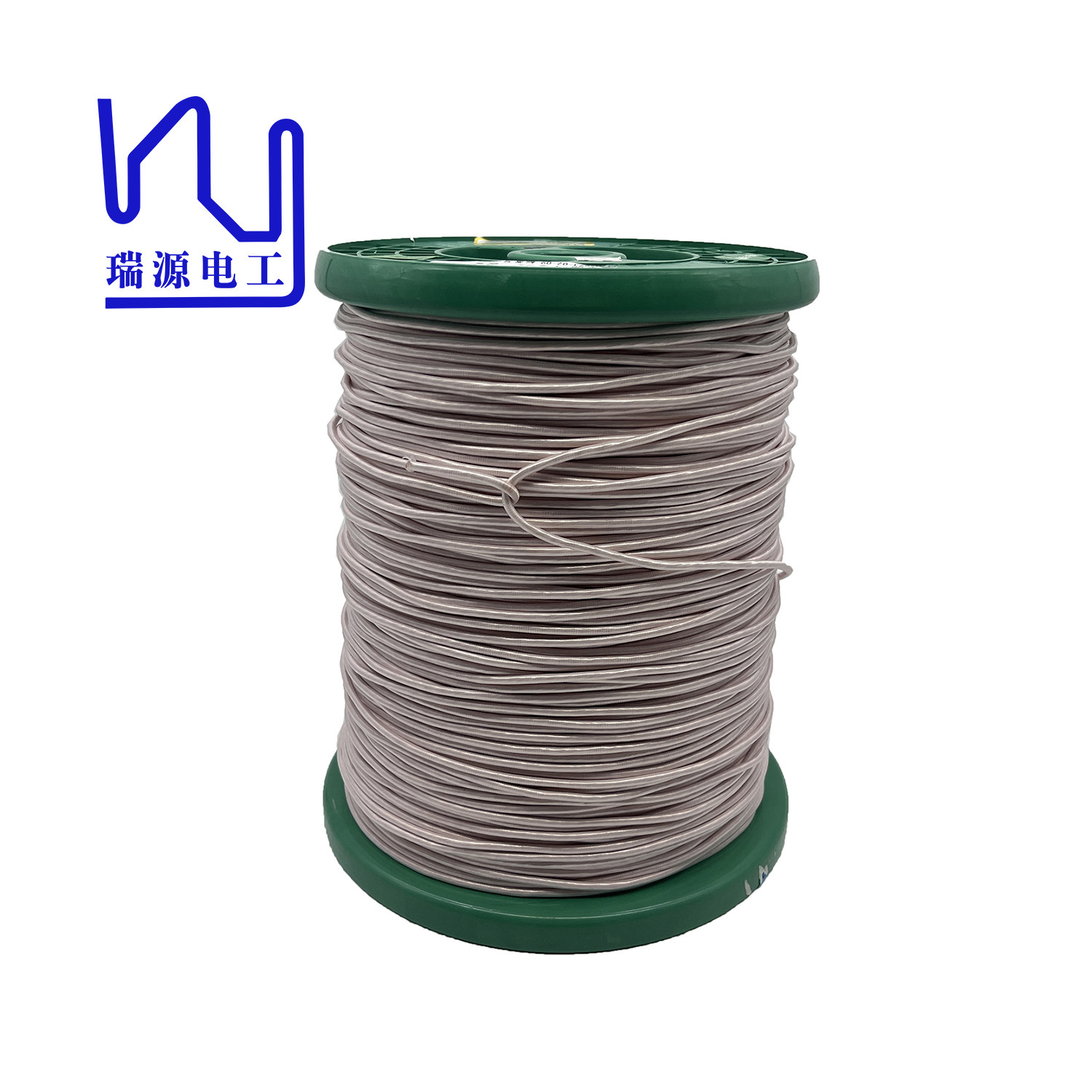

USTC 0.1mm 0.2mm Custom stranded copper wire Nylon served litz wire
Silk covered litz wire has good high temperature resistance, and the temperature resistance level can reach 155 degrees, which can be used in electronic assembly, motor manufacturing and other industries under high temperature environment.
|
Datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
| Characteristics | Technical requests | Test Results | |
| Conductor diameter(mm) | 0.10±0.003 | 0.098-0.10 | |
| Overall diameter(mm) | Max.3.44 | 2.7 | 2.82 |
| No. Of strands | 400 | √ | |
| Pitch(mm) | 47±3 | √ | |
| Maximum Resistance(Ω/m 20℃) | 0.00595 | 0.00547 | 0.00546 |
| Minimum Breakdown Voltage(V) | 1100 | 3300 | 3200 |
| Solderability | 390±5℃, 12s | √ | |
| Pinhole(faults/6m) | Max. 80 | 28 | 30 |
