| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC155 0.1mm*400 High Frequency Nylon Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155 0.1mm*400 High Frequency Nylon Served Copper Litz Wire |
| No. Of Strands: | 400 | ||
| Highlight: | ustc155 copper litz wire,high frequency copper litz wire,nylon served ustc wire |
||

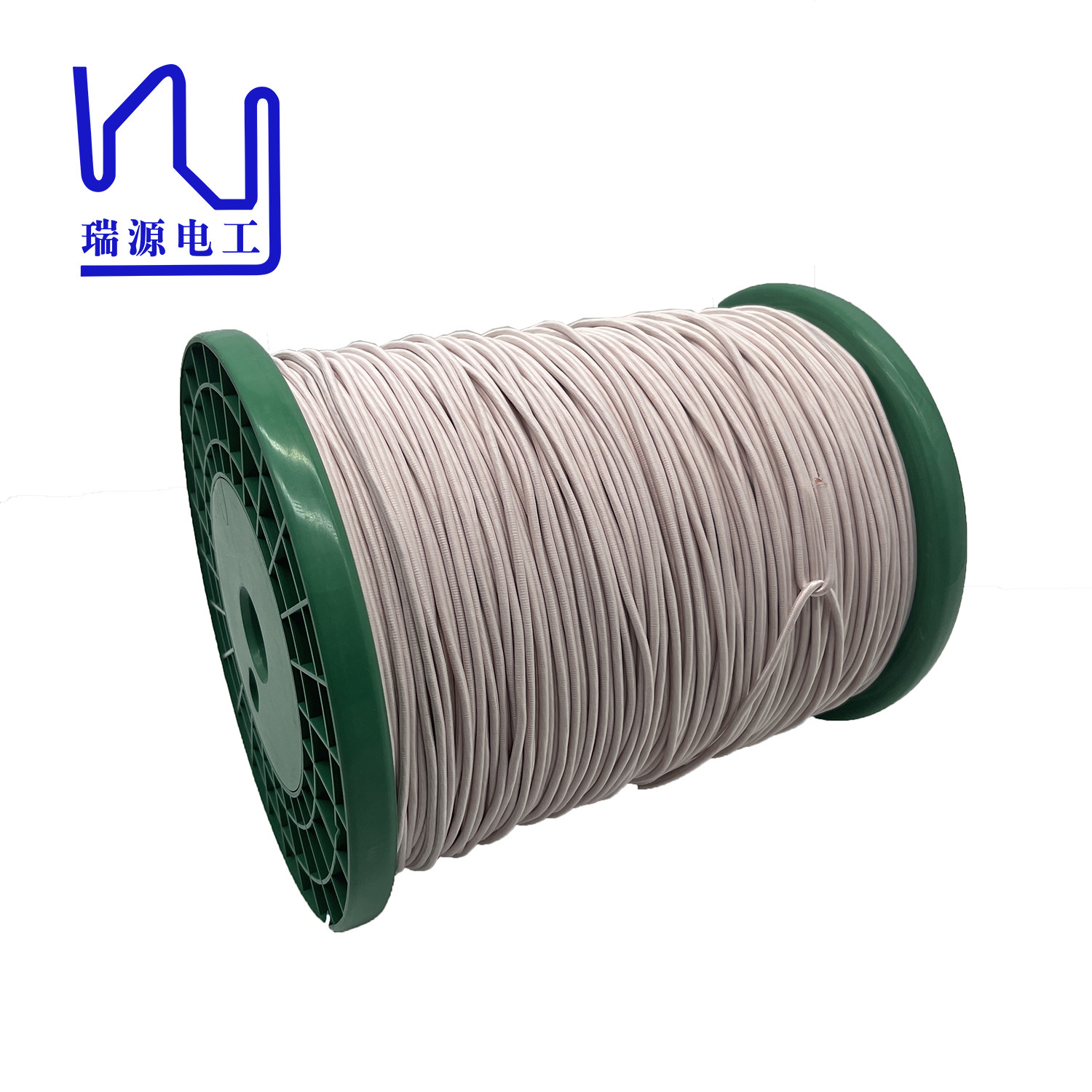

USTC155 0.1mm*400 high frequency Nylon served copper litz wire
This article will introduce the advantages and uses of silk covered wire. The advantages of silk covered litz wire in electronic manufacturing are mainly reflected in its insulation performance and temperature resistance.
Its insulating layer is made of enameled copper wire, which can prevent the wire from being scratched and short-circuited, and ensure the stable operation of electrical equipment. The outer layer is covered with nylon, which enhances the wear resistance and corrosion resistance of the wire, ensuring the safe operation of electrical equipment in harsh environments.
|
Datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
| Characteristics | Technical requests | Test Results | |
| Conductor diameter(mm) | 0.10±0.003 | 0.098-0.10 | |
| Overall diameter(mm) | Max.3.44 | 2.7 | 2.82 |
| No. Of strands | 400 | √ | |
| Pitch(mm) | 47±3 | √ | |
| Maximum Resistance(Ω/m 20℃) | 0.00595 | 0.00547 | 0.00546 |
| Minimum Breakdown Voltage(V) | 1100 | 3300 | 3200 |
| Solderability | 390±5℃, 12s | √ | |
| Pinhole(faults/6m) | Max. 80 | 28 | 30 |
