| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | UDTCF 155 Grade 0.1mm/400 Nylon Silk Served Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | UDTCF 155 Grade 0.1mm/400 Nylon Silk Served Copper Litz Wire |
| No. Of Strands: | 400 | ||
| Highlight: | super enamelled copper ustc litz wire,0.1 mm ustc litz wire,nylon silk served copper ustc wire |
||

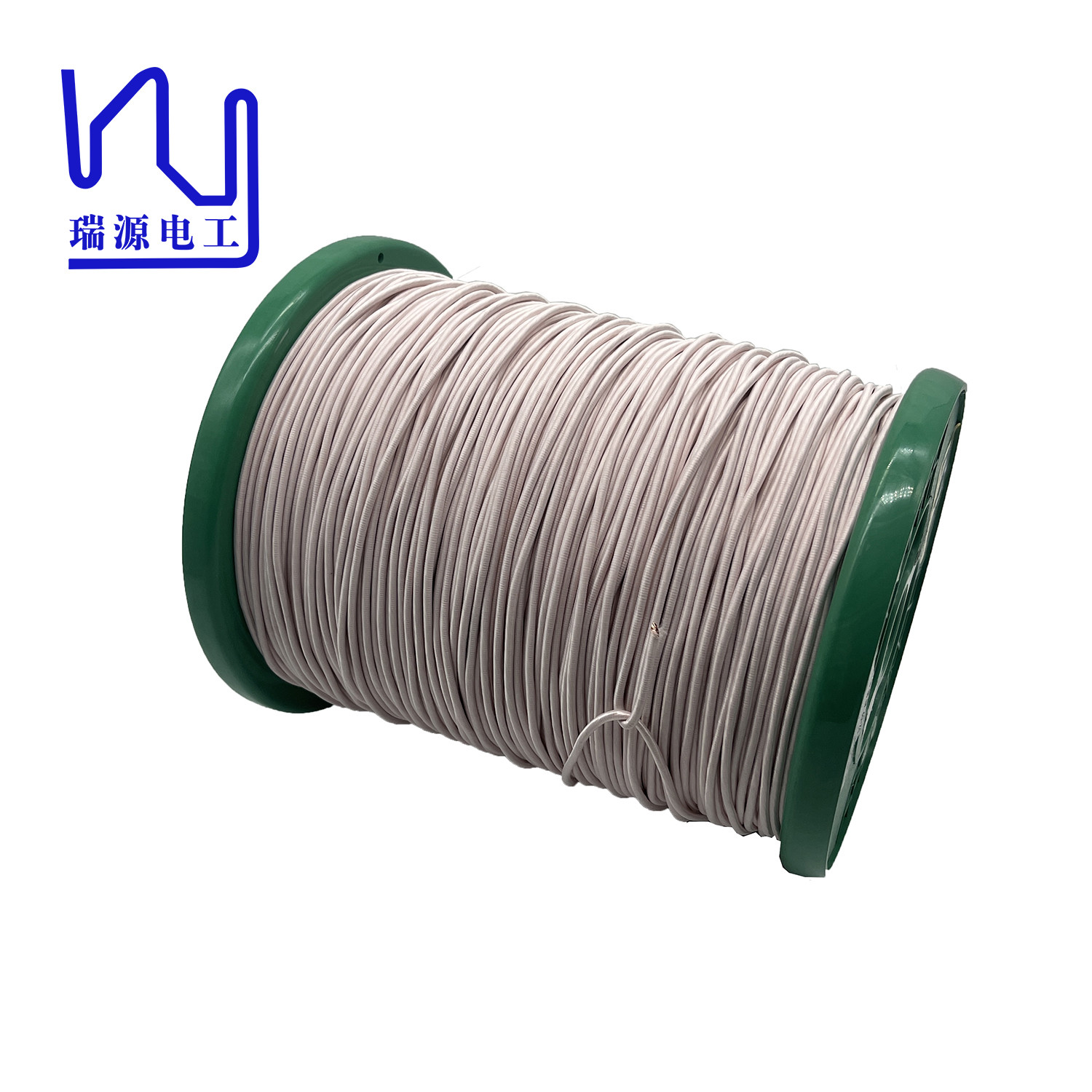

UDTCF 155 Grade 0.1mm/400 Nylon silk served copper litz wire
As a high-quality wire material, silk covered litz wire has a wide range of applications and is favored by customers in electronics manufacturing and other industries.
The single wire of the silk covered litz wire is 0.1mm enameled copper wire, the number of strands is 400 strands, the temperature resistance grade is 155 degrees, and the outer layer is wrapped with nylon.
|
datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
| Characteristics | Technical requests | Test Results | |
| Conductor diameter(mm) | 0.10±0.003 | 0.098-0.10 | |
| Overall diameter(mm) | Max.3.44 | 2.7 | 2.82 |
| No. Of strands | 400 | √ | |
| Pitch(mm) | 47±3 | √ | |
| Maximum Resistance(Ω/m 20℃) | 0.00595 | 0.00547 | 0.00546 |
| Minimum Breakdown Voltage(V) | 1100 | 3300 | 3200 |
| Solderability | 390±5℃, 12s | √ | |
| Pinhole(faults/6m) | Max. 80 | 28 | 30 |
