| Name: | Custom High Frequency Silk Covered Litz Wire For Transformer Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom High Frequency Silk Covered Litz Wire For Transformer Winding |
| No. Of Strands: | 1500 | ||
| Highlight: | 0.03mm custom litz wire,transformer winding high frequency litz wire,ustc high frequency litz wire |
||

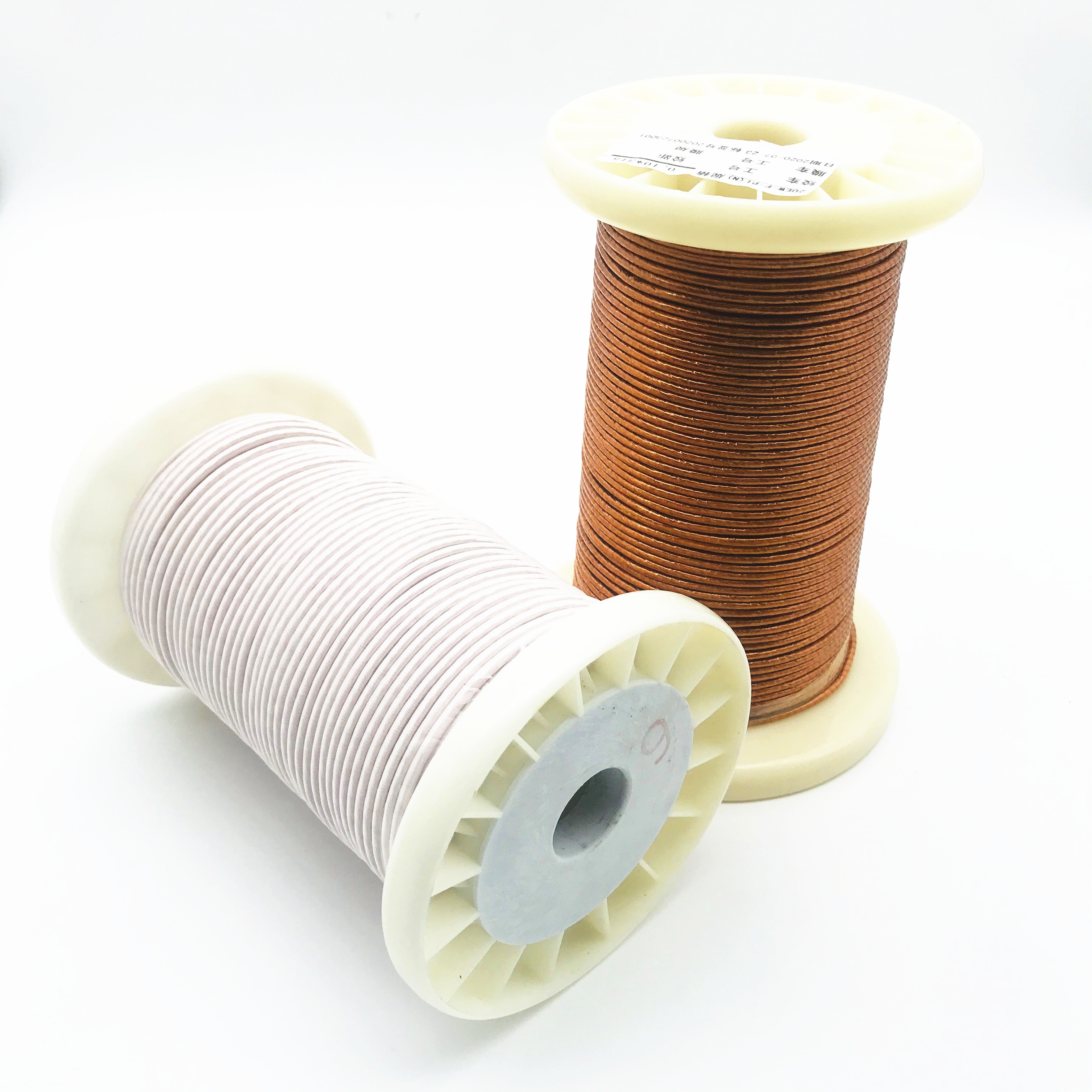

Custom High Frequency silk covered litz wire for Transformer winding
Silk covered copper litz wire is widely used in electrical transformers as it provides superior insulation to the fine strands of high-grade bare solid or stranded conductors. It is also immune to humidity and prevents oxidation. This wire allows for a higher current rating, lower voltage drop, and greater power efficiency than standard solid or stranded wires.
|
datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
| Product | USTC155/180 0.03mm Super thin silk covered litz wire for voice coils |
| Key word | USTC155/180 0.03mm Super thin silk covered litz wire for voice coils |
| Type | Silk covered litz wire |
| MOQ | 3KG |
Technical and structural requirement
| DescriptionConductor diameter*Strand number |
2USTC-F 0.03*19 |
|
|
Single wire |
Conductor diameter(mm) | 0.030 |
| Conductor diameter tolerance (mm) | ±0.003 | |
| Minimal insulation thickness(mm) | 0.0015 | |
| Maximal overall diameter (mm) | 0.044 | |
| Thermal Class(℃) | 155 | |
|
Strand Composition |
Strand number | 19 |
| Pitch(mm) | 16±3 | |
| Stranding direction | S | |
|
Insulation layer |
Category | Nylon |
| UL | / | |
| Material specs(mm*mm or D) | 200 | |
| Times ofWrapping | 1 | |
| Overlap(%) or thickness(mm),mini | 0 02 | |
| Wrapping direction | S | |
|
Characteristics |
Max O. D (mm) | 0.25 |
| Max pin holes faults/6m | / | |
| Max resistance (Ω/Km at20℃) | 1519 | |
| Mini breakdown voltage (V) | 400 | |
| Certificate | / | |
| package | spool | / |
| Weight per spool (KG) |
/ |
|
