| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC 0.03mm 0.04mm 0.05mm Nylon Served High Frequency Litz Wire For Wireless Charger | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC 0.03mm 0.04mm 0.05mm Nylon Served High Frequency Litz Wire For Wireless Charger |
| No. Of Strands: | 1500 | ||
| Highlight: | 0.04 mm ustc wire,wireless charger ustc wire,ustc wire high frequency |
||

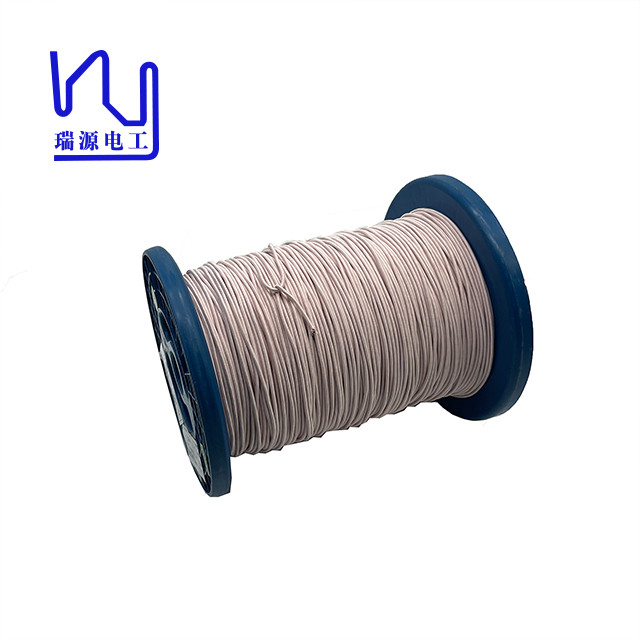

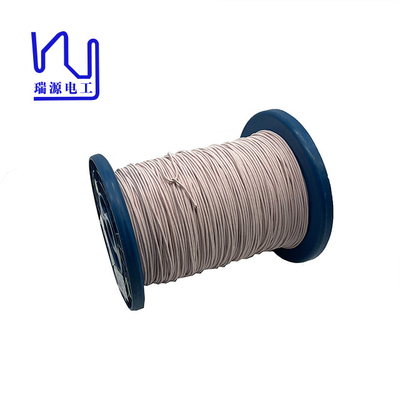

USTC 0.03mm 0.04mm 0.05mm Nylon Served High Frequency Litz Wire For Wireless Charger
Wireless transmission benefits from the use of copper-clad Litz wire in several ways. It improves efficiency due to its lower resistance compared to other wiring materials, and also helps reduce interference problems by providing more effective shielding from external electromagnetic fields. Plus, its flexibility allows for easier passage through tight spaces.
|
datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
|
Item |
Standard |
Sample 1 |
Sample 2 |
|
single wire conductor diameter (mm) |
0.04±0.002 |
0.038 |
0.04 |
|
Outer diameter of single wire(mm) |
0.043-0.056 |
0.047 |
0.049 |
|
Maximum overall dimension (mm) |
2.70 |
2.23 |
2.39 |
|
Pitch(mm) |
32±3 |
√ |
√ |
|
Max.Resistance((Ω/m at20℃) |
0.01045 |
0.00923 |
0.00920 |
|
Mini breakdown voltage (V) |
500 |
2600 |
2700 |
|
Max pin holes faults/6m |
/ |
/ |
/ |
|
Solderablilty |
390±5℃, 10s
|
√ |
√ |
|
Surface |
Smooth |
√ |
√ |
