| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC Class F 0.04mm / 1500 Nylon Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC Class F 0.04mm / 1500 Nylon Silk Covered Litz Wire |
| No. Of Strands: | 1500 | ||
| Highlight: | ustc litz wire 0.04 mm,nylon silk covered ustc litz wire,ustc wire 0.04 mm |
||

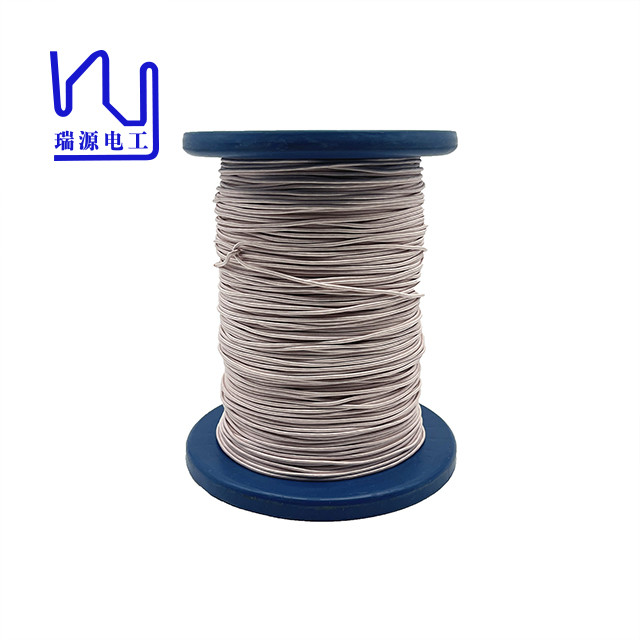

2USTC Class F 0.04mm / 1500 Nylon Silk Covered Litz Wire
Ruiyuan attracts many outstanding technical and management talents, and our founders have built the best team in the industry with our long-term vision. We respects the values of each employee and provides them with a platform to make Ruiyuan a great place to grow a career.
|
datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
|
Item |
Standard |
Sample 1 |
Sample 2 |
|
single wire conductor diameter (mm) |
0.04±0.002 |
0.038 |
0.04 |
|
Outer diameter of single wire(mm) |
0.043-0.056 |
0.047 |
0.049 |
|
Maximum overall dimension (mm) |
2.70 |
2.23 |
2.39 |
|
Pitch(mm) |
32±3 |
√ |
√ |
|
Max.Resistance((Ω/m at20℃) |
0.01045 |
0.00923 |
0.00920 |
|
Mini breakdown voltage (V) |
500 |
2600 |
2700 |
|
Max pin holes faults/6m |
/ |
/ |
/ |
|
Solderablilty |
390±5℃, 10s
|
√ |
√ |
|
Surface |
Smooth |
√ |
√ |
