| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UDTC180 High Frequency 0.04mm 0.05mm Polyester Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UDTC180 High Frequency 0.04mm 0.05mm Polyester Silk Covered Litz Wire |
| No. Of Strands: | 1500 | ||
| Highlight: | 2udtc180 high frequency litz wire,high frequency litz wire 0.05 mm,polyester silk covered ustc wire |
||

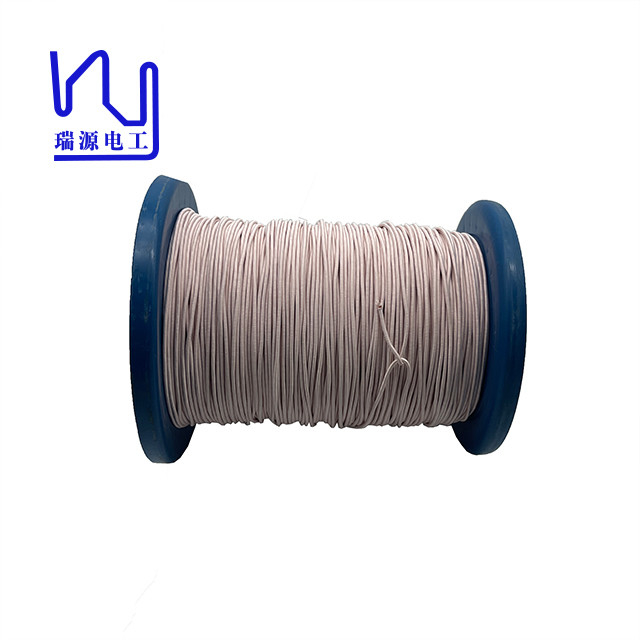

2UDTC180 High Frequency 0.04mm 0.05mm Polyester Silk Covered Litz Wire
Ruiyuan has a heritage of innovation, along with advancements in enameled wire, our company has grown through an unwavering commitment to integrity, service and responsiveness to our customers. As a leading supplier of enamel copper wire, we have earned a reputation for providing a superior customer experience and first-class quality and cooperation. We look forward to continuing to grow on the basis of quality, innovation and service.We rival the internationally renowned enameled wire brands for production, technology, raw materials.We surpass them in terms of "service, quick response".
|
datasheet for nylon6 |
|||||
|
Model |
Lot No |
CV value |
Breaking Elongation |
CV value |
|
|
93dtex/48f |
8501 |
4.31 |
3.84 |
66.6 |
3.12 |
|
|
8502L |
4.27 |
3.87 |
67.5 |
3.53 |
|
Item |
Standard |
Sample 1 |
Sample 2 |
|
single wire conductor diameter (mm) |
0.04±0.002 |
0.038 |
0.04 |
|
Outer diameter of single wire(mm) |
0.043-0.056 |
0.047 |
0.049 |
|
Maximum overall dimension (mm) |
2.70 |
2.23 |
2.39 |
|
Pitch(mm) |
32±3 |
√ |
√ |
|
Max.Resistance((Ω/m at20℃) |
0.01045 |
0.00923 |
0.00920 |
|
Mini breakdown voltage (V) |
500 |
2600 |
2700 |
|
Max pin holes faults/6m |
/ |
/ |
/ |
|
Solderablilty |
390±5℃, 10s
|
√ |
√ |
|
Surface |
Smooth |
√ |
√ |
