| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2USTC/UDTC180 0.04mm 0.05mm Stranded Copper Wire Polyester Silk Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC/UDTC180 0.04mm 0.05mm Stranded Copper Wire Polyester Silk Litz Wire |
| No. Of Strands: | 1500 | ||
| Highlight: | stranded copper ustc litz wire,polyester silk ustc litz wire,polyester silk ustc wire |
||

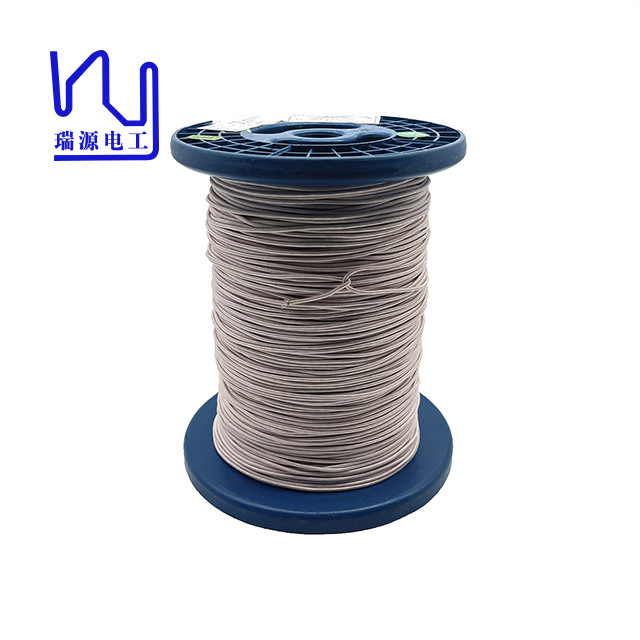

2USTC/UDTC180 0.04mm 0.05mm Stranded Copper Wire Polyester Silk Litz Wire
Specification:
Material: Copper
Single wire dimeter: 0.03mm-0.8mm
Material of silk: Polyerster/nylon
Temperature resistance: 155℃. Maximum resistivity is 10.45Ω/KM.
We support small batch order, MOQ is 20kg.
| datasheet for nylon6 | |||||
| Model | Lot No | Tensile strength(CN/dtex) | CV value | Breaking Elongation | CV value |
| 93dtex/48f | 8501 | 4.31 | 3.84 | 66.6 | 3.12 |
| 8502L | 4.27 | 3.87 | 67.5 | 3.53 | |
| Item | Standard | Sample 1 | Sample 2 |
| single wire conductor diameter (mm) | 0.04±0.002 | 0.038 | 0.04 |
| Outer diameter of single wire(mm) | 0.043-0.056 | 0.047 | 0.049 |
| Maximum overall dimension (mm) | 2.70 | 2.23 | 2.39 |
| Pitch(mm) | 32±3 | √ | √ |
| Max.Resistance((Ω/m at20℃) | 0.01045 | 0.00923 | 0.00920 |
| Mini breakdown voltage (V) | 500 | 2600 | 2700 |
| Max pin holes faults/6m | / | / | / |
| Solderablilty |
390±5℃, 10s
|
√ | √ |
| Surface | Smooth | √ | √ |
