| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC155/180 Super Thin Nylon Silk 0.03mm Enameled Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155/180 Super Thin Nylon Silk 0.03mm Enameled Copper Litz Wire |
| No. Of Strands: | 19 | ||
| Highlight: | super thin ustc litz wire,ustc litz wire 0.03mm,ustc copper litz cable |
||

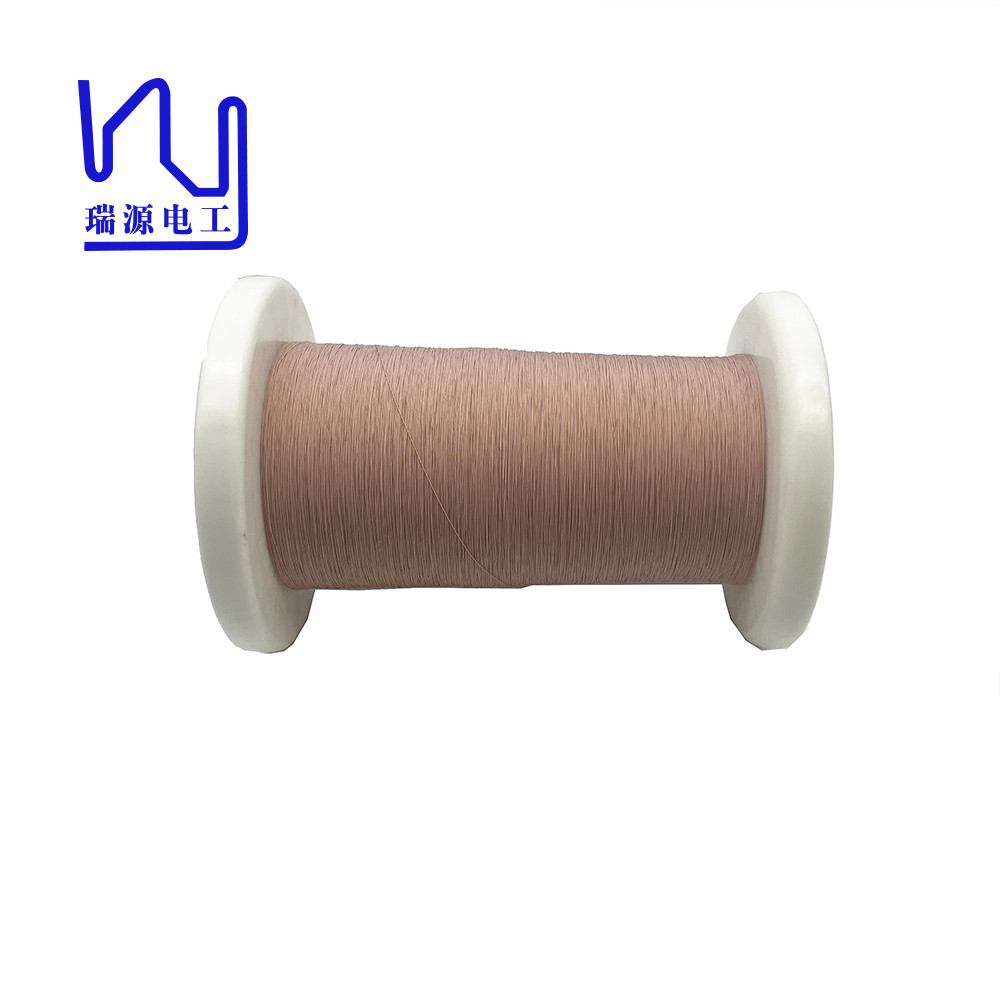

USTC155/180 Super thin Nylon Silk 0.03mm Enameled Copper Litz Wire
Ruiyuan is capable of producing all kinds of USTC Wire. Our USTC wire fits for a wide range of applications such as hf transformers, converters, transceivers, chokes, electrical drives, relays, etc. Other customized wires can be provided according to your requirements.
Single wire diameter: 0.03mm-1mm
No. of strands: 2-6,000 strands
Max. Overall diameter: 10mm
Self bonding ustc wire is also available for customization
MOQ: 10kg is enough for you to get a customized wire!
|
Product |
USTC155/180 Super thin Nylon Silk 0.03mm Enameled Copper Litz Wire |
|
Key word |
USTC155/180 Super thin Nylon Silk 0.03mm Enameled Copper Litz Wire |
|
Type |
Silk covered litz wire |
|
MOQ |
3KG |
Technical and structural requirement
|
DescriptionConductor diameter*Strand number |
2USTC-F 0.03*19 |
|
|
Single wire |
Conductor diameter(mm) |
0.030 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0.0015 |
|
|
Maximal overall diameter (mm) |
0.044 |
|
|
Thermal Class(℃) |
155 |
|
|
Strand Composition |
Strand number |
19 |
|
Pitch(mm) |
16±3 |
|
|
Stranding direction |
S |
|
|
Insulation layer |
Category |
Nylon |
|
UL |
/ |
|
|
Material specs(mm*mm or D) |
200 |
|
|
Times ofWrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0 02 |
|
|
Wrapping direction |
S |
|
|
Characteristics |
Max O. D (mm) |
0.25 |
|
Max pin holes faults/6m |
/ |
|
|
Max resistance (Ω/Km at20℃) |
1519 |
|
|
Mini breakdown voltage (V) |
400 |
|
|
Certificate |
/ |
|
|
package |
spool |
/ |
|
Weight per spool (KG) |
/ |
|
