| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 3kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Class 155 Nylon Covered 0.03mm*19 Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Class 155 Nylon Covered 0.03mm*19 Copper Litz Wire |
| No. Of Strands: | 19 | ||
| Highlight: | class 155 custom litz wire,nylon covered custom litz wire,ustc litz magnet wire |
||

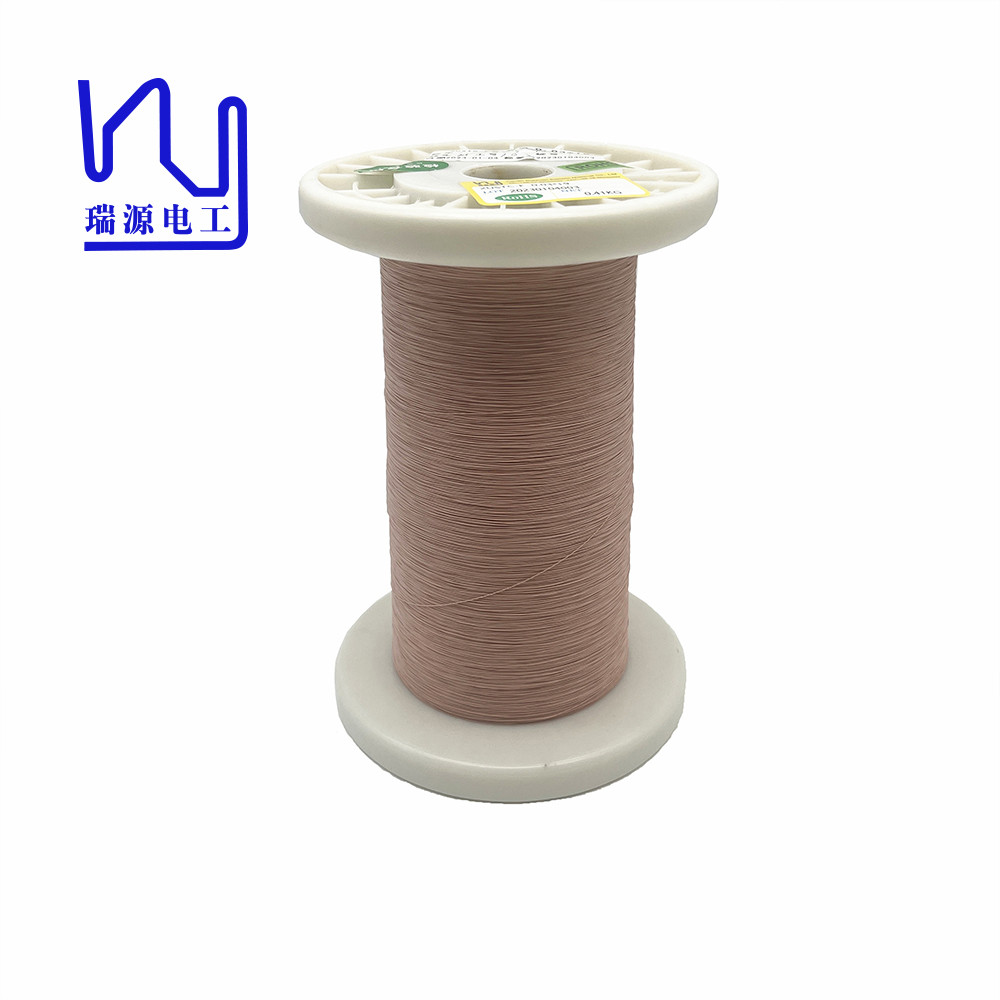

Class 155 Nylon Covered 0.03mm*19 copper Litz Wire
Characteristics of 2USTC 0.03mm*19 strands litz wire. Our wire conforms to JISC 3202 and internal standards with UL, RoHs, REACH, ISO 9001, ISO 14001 certifications.
Ruiyuan is capable of producing all kinds of USTC Wire. Our USTC wire fits for a wide range of applications such as hf transformers, converters, transceivers, chokes, electrical drives, relays, etc. Other customized wires can be provided according to your requirements.
|
Product |
Class 155 Nylon Covered 0.03mm*19 copper Litz Wire |
|
Key word |
Class 155 Nylon Covered 0.03mm*19 copper Litz Wire |
|
Type |
Silk covered litz wire |
|
MOQ |
3KG |
Technical and structural requirement
|
DescriptionConductor diameter*Strand number |
2USTC-F 0.03*19 |
|
|
Single wire |
Conductor diameter(mm) |
0.030 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0.0015 |
|
|
Maximal overall diameter (mm) |
0.044 |
|
|
Thermal Class(℃) |
155 |
|
|
Strand Composition |
Strand number |
19 |
|
Pitch(mm) |
16±3 |
|
|
Stranding direction |
S |
|
|
Insulation layer |
Category |
Nylon |
|
UL |
/ |
|
|
Material specs(mm*mm or D) |
200 |
|
|
Times ofWrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0 02 |
|
|
Wrapping direction |
S |
|
|
Characteristics |
Max O. D (mm) |
0.25 |
|
Max pin holes faults/6m |
/ |
|
|
Max resistance (Ω/Km at20℃) |
1519 |
|
|
Mini breakdown voltage (V) |
400 |
|
|
Certificate |
/ |
|
|
package |
spool |
/ |
|
Weight per spool (KG) |
/ |
|
