| Name: | 2USTC Covered 0.03mm*19 High Frequency Litz Wire For Transformers Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.03mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2USTC Covered 0.03mm*19 High Frequency Litz Wire For Transformers Winding |
| No. Of Strands: | 19 | ||
| Highlight: | high frequency ustc litz wire,transformers winding ustc litz wire,enameled ustc litz wire |
||

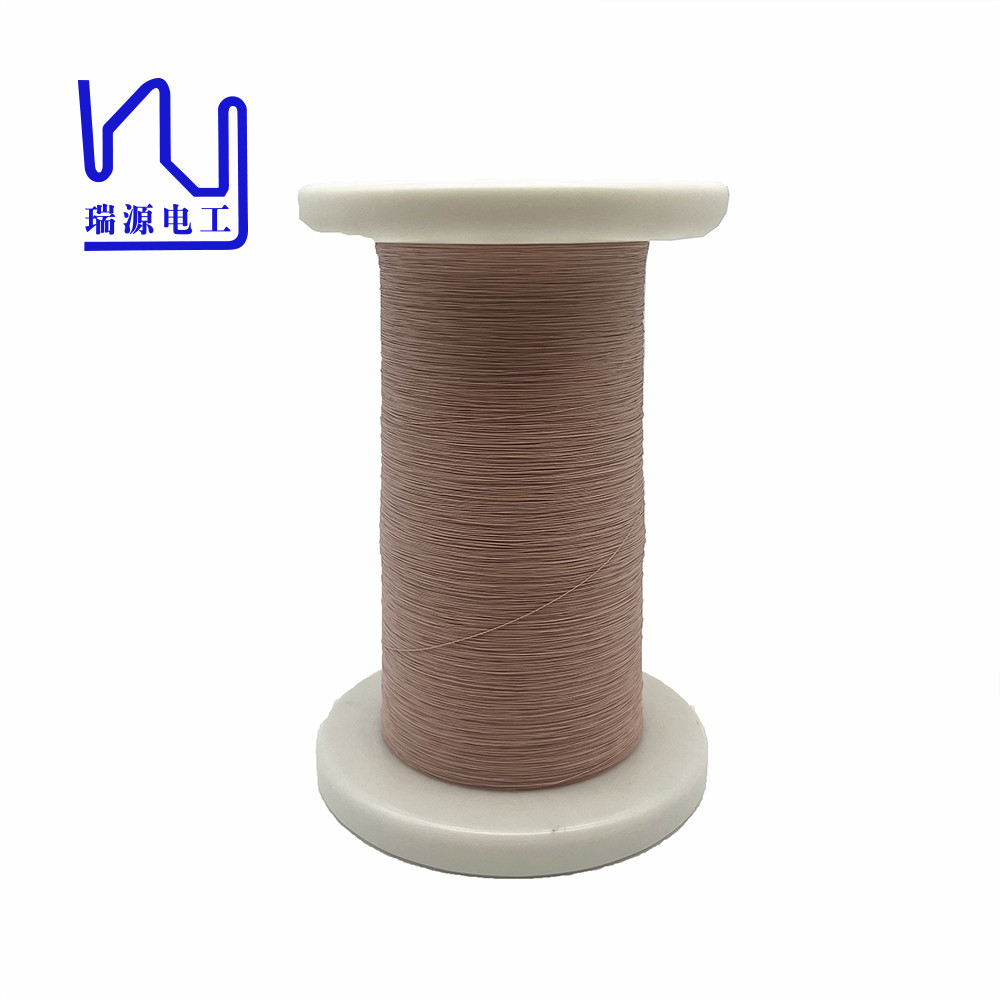

2USTC Covered 0.03mm*19 High Frequency Litz Wire for Transformers Winding
Introduction
What is USTC wire? It's a special wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk or adhesive yarns) on the surface of single enameled wire or stranded wire and often used in electronics. Multi strands of wires helps reduce skin effect and proximity effect losses in conductors.
|
Product |
2USTC Covered 0.03mm*19 High Frequency Litz Wire for Transformers Winding |
|
Key word |
2USTC Covered 0.03mm*19 High Frequency Litz Wire for Transformers Winding |
|
Type |
Silk covered litz wire |
|
MOQ |
3KG |
Technical and structural requirement
|
Description Conductor diameter*Strand number |
2USTC-F 0.03*19 |
|
|
Single wire |
Conductor diameter(mm) |
0.030 |
|
Conductor diameter tolerance (mm) |
±0.003 |
|
|
Minimal insulation thickness(mm) |
0.0015 |
|
|
Maximal overall diameter (mm) |
0.044 |
|
|
Thermal Class(℃) |
155 |
|
|
Strand Composition |
Strand number |
19 |
|
Pitch(mm) |
16±3 |
|
|
Stranding direction |
S |
|
|
Insulation layer |
Category |
Nylon |
|
UL |
/ |
|
|
Material specs(mm*mm or D) |
200 |
|
|
Times ofWrapping |
1 |
|
|
Overlap(%) or thickness(mm),mini |
0 02 |
|
|
Wrapping direction |
S |
|
|
Characteristics |
Max O. D (mm) |
0.25 |
|
Max pin holes faults/6m |
/ |
|
|
Max resistance (Ω/Km at20℃) |
1519 |
|
|
Mini breakdown voltage (V) |
400 |
|
|
Certificate |
/ |
|
|
package |
spool |
/ |
|
Weight per spool (KG) |
/ |
|
