| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 46 AWG Mult- Strand Litz Wire Nylon Silk Covered Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 46 AWG Mult- Strand Litz Wire Nylon Silk Covered Copper Litz Wire |
| No. Of Strands: | 140 | ||
| Highlight: | 46 awg ustc wire,multi strand ustc wire,silk covered ustc litz wire |
||

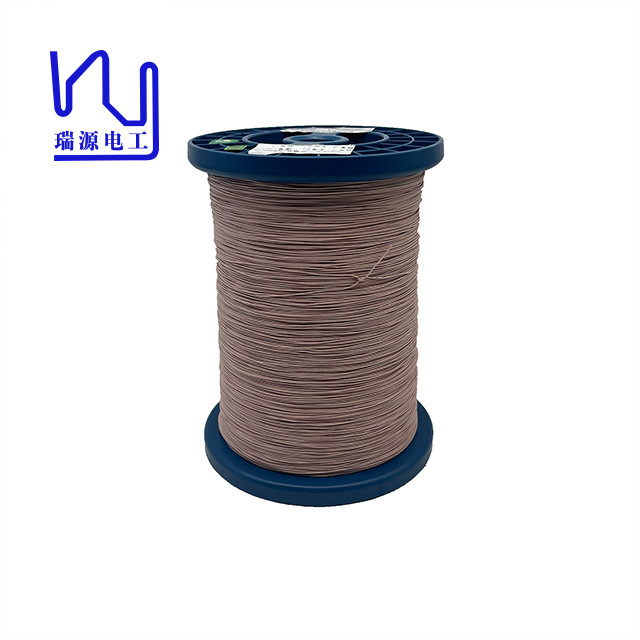

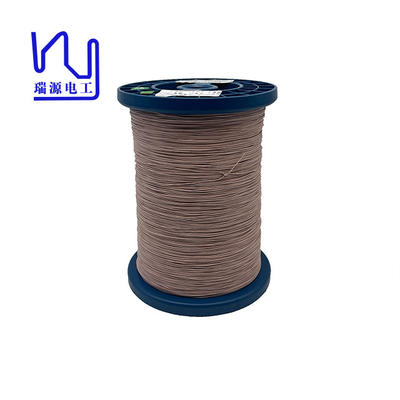

46 AWG Mult- strand litz wire nylon silk covered copper litz wire
Specification:
Material: Copper
Single wire dimeter: 0.03mm-0.8mm
Thermal class: 155/180 degrees
Material of silk: Polyerster/nylon
The wire will come on a reel for ease of use, approx lengths per 1kg is round 611 meters.
In addition to silk covered litz wire, we can also produce other types of Litz wire, such as Mylar wire, profiled litz wire, braided silk covered litzwire, etc. We support small batch order, MOQ is 20kg.
|
Item |
Standard |
Sample 1 |
Sample 2 |
|
single wire conductor diameter (mm) |
0.04±0.002 |
0.038 |
0.0.004 |
|
Outer diameter of single wire(mm) |
0.045-0.076 |
0.052 |
0.0554 |
|
Maximum overall dimension (mm) |
0.86 |
0.71 |
0.75 |
|
Pitch(mm) |
27±3 |
√ |
√ |
|
Max.Resistance((Ω/m at20℃) |
0.1119 |
0.1010 |
0.1006 |
|
Mini breakdown voltage (V) |
1300 |
3900 |
4100 |
|
Max pin holes faults/6m |
24 |
5 |
4 |
|
Solderablilty |
390±5℃, 6s
|
√ |
√ |
|
Surface |
Smooth |
√ |
√ |
