| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Super Thin 0.04mm High Frequency Litz Wire Polyster Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Super Thin 0.04mm High Frequency Litz Wire Polyster Silk Covered Litz Wire |
| No. Of Strands: | 140 | ||
| Highlight: | superthin ustc litz wire,ustc litz wire high frequency,0.04 mm ustc litz wire |
||

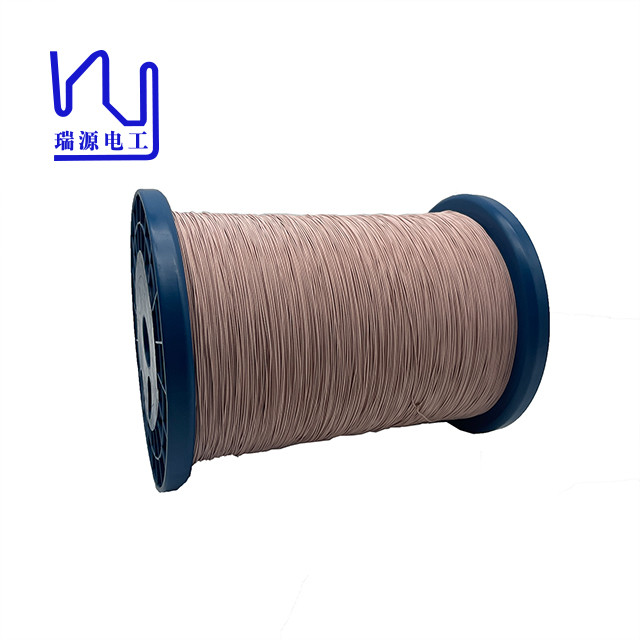

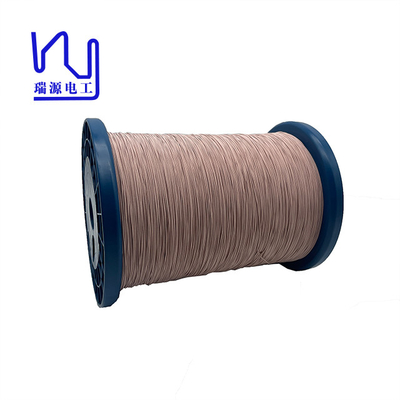

Super thin 0.04mm High Frequency litz wire polyster silk covered litz wire
The multiple strand makes the wire very flexible. The number of strands of this silk covered litz wire is 140 strands, and the temperature resistance rating is 155 degrees.
HF-Litz wires are mainly used in chokes and transformers to reduction skin-effect occuring in single copper wires at high value of current. We have in offer wide range of HF-litz in different configuration of diameter single wires.
Item | Standard | Sample 1 | Sample 2 |
single wire conductor diameter (mm) | 0.04±0.002 | 0.038 | 0.0.004 |
Outer diameter of single wire(mm) | 0.045-0.076 | 0.052 | 0.0554 |
Maximum overall dimension (mm) | 0.86 | 0.71 | 0.75 |
Pitch(mm) | 27±3 | √ | √ |
Max.Resistance((Ω/m at20℃) | 0.1119 | 0.1010 | 0.1006 |
Mini breakdown voltage (V) | 1300 | 3900 | 4100 |
Max pin holes faults/6m | 24 | 5 | 4 |
Solderablilty | 390±5℃, 6s
| √ | √ |
Surface | Smooth | √ | √ |
