| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC155 0.04mmx140 Shares Multi-strand Nylon Silk Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.04mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC155 0.04mmx140 Shares Multi-strand Nylon Silk Copper Litz Wire |
| No. Of Strands: | 140 | ||
| Highlight: | 0.04mm enameled wire,enameled wire multi strand,ustc enameled wire |
||

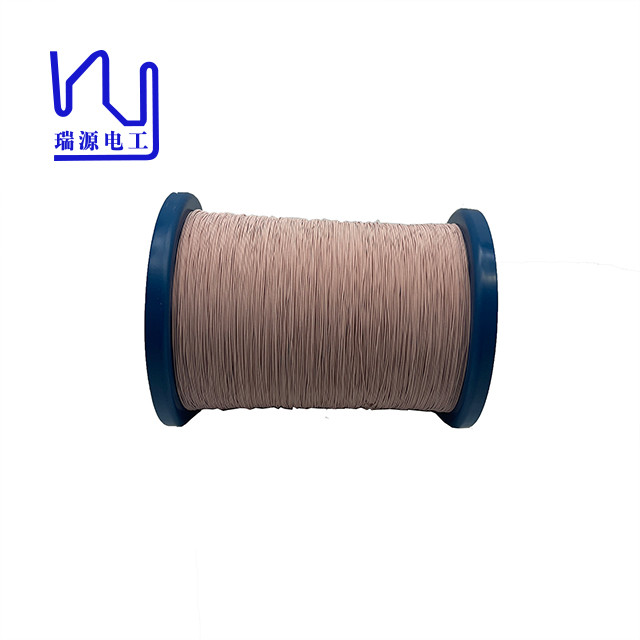

USTC155 0.04mmx140 Shares Multi-strand nylon silk copper litz wire
This Litz wire is made up from individual strands of 0.04mm solderable enamelled copper wire this bunch of strands is then wrapped in nylon,individual strands are enamel coated.
It has good direct soldering performance and the solder temperature is 390℃±5℃. Temperature resistance: 155℃. Maximum resistivity is 111.95Ω/KM
|
Item |
Standard |
Sample 1 |
Sample 2 |
|
single wire conductor diameter (mm) |
0.04±0.002 |
0.038 |
0.0.004 |
|
Outer diameter of single wire(mm) |
0.045-0.076 |
0.052 |
0.0554 |
|
Maximum overall dimension (mm) |
0.86 |
0.71 |
0.75 |
|
Pitch(mm) |
27±3 |
√ |
√ |
|
Max.Resistance((Ω/m at20℃) |
0.1119 |
0.1010 |
0.1006 |
|
Mini breakdown voltage (V) |
1300 |
3900 |
4100 |
|
Max pin holes faults/6m |
24 |
5 |
4 |
|
Solderablilty |
390±5℃, 6s
|
√ |
√ |
|
Surface |
Smooth |
√ |
√ |
