| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | USTC USDC 0.03 0.05 0.08 0.1mm 0.2mm Enameled Covered Copper Litz Wire For Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | USTC USDC 0.03 0.05 0.08 0.1mm 0.2mm Enameled Covered Copper Litz Wire For Transformer |
| No. Of Strands: | 31 | ||
| Highlight: | 0.03mm ustc litz wire,enameled covered copper ustc litz wire,0.05mm ustc wire |
||

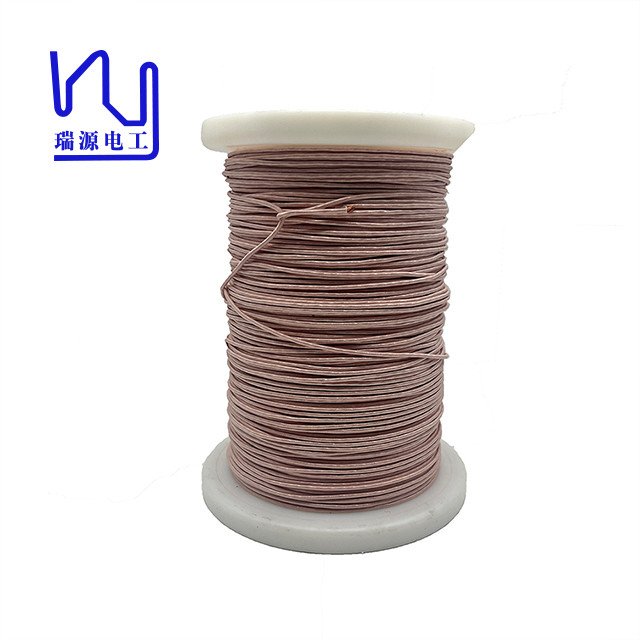

USTC USDC 0.03 0.05 0.08 0.1mm 0.2mm Enameled covered Copper Litz Wire For Transformer
The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.
1.Diameter of the single wire and overall diameter can be customized within standard.
2.Length of lay.The length of lay describes the distance which a single wire needs for one complete rotation around the litz wire circumference (360 degrees).That can be customized. The smaller of the length of lay, the harder of the wire will be.
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name :USTC USDC 0.03 0.05 0.08 0.1mm 0.2mm Enameled covered Copper Litz Wire For Transformer |
|
Key word:USTC USDC 0.03 0.05 0.08 0.1mm 0.2mm Enameled covered Copper Litz Wire For Transformer |
|
Insulation: nylon /dacron |
|
Thermal rating: 155/180 |
|
Diameter of the enameled copper wire |
|
Number of strands:31 |
|
Type |
