| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.03mm-0.5mm Copper Stranded Wire USTC155 Silk Covered Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.03mm-0.5mm Copper Stranded Wire USTC155 Silk Covered Litz Wire |
| No. Of Strands: | 31 | ||
| Highlight: | 0.03mm ustc litz wire,silk covered enamelled ustc litz wire,0.5mm ustc wire |
||

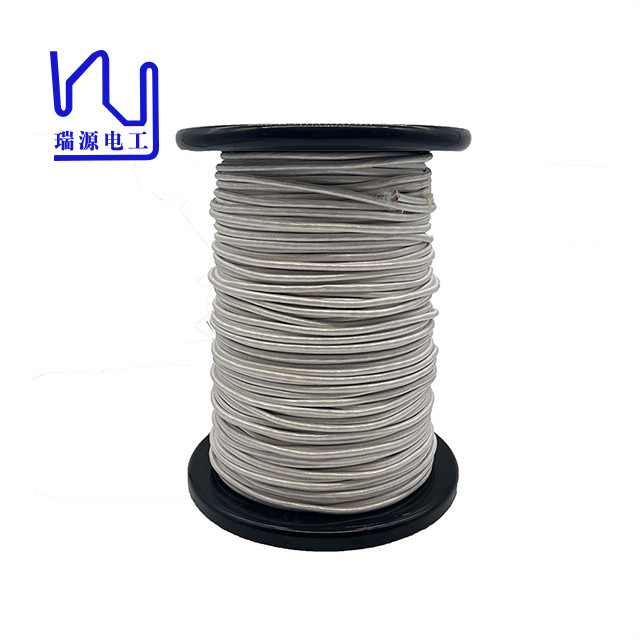

0.03mm-0.5mm Copper stranded wire USTC155 silk covered litz wire
What we have been doing in 21 years is pursuing our operation philosophy customer oriented, innovation brings more value's that is not slogan, but a part of our DNA.Not like ordinary magnet wire provider, only give specified size range. We are solustion provider that need us to be more professional on wires, insulation maerial and your applications.
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name :0.03mm-0.5mm Copper stranded wire USTC155 silk covered litz wire |
|
Key word:0.03mm-0.5mm Copper stranded wire USTC155 silk covered litz wire |
|
Insulation: nylon /dacron |
|
Thermal rating: 155/180 |
|
Diameter of the enameled copper wire |
|
Number of strands:31 |
|
Type |
