| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |

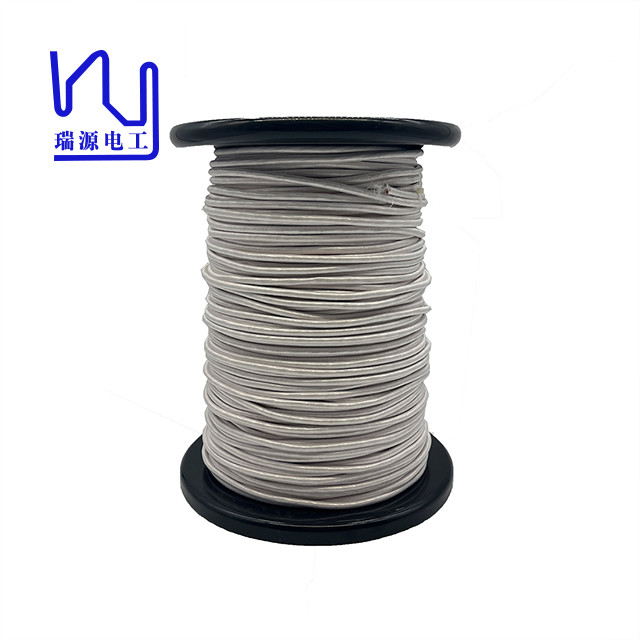

| Name: | 41/0.2mm 40/0.2mm High Frequency Enameled Silk Covered Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.2mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 41/0.2mm 40/0.2mm High Frequency Enameled Silk Covered Copper Litz Wire |
| No. Of Strands: | 40 | ||
| Highlight: | 0.2mm copper winding wire,hf litz type copper winding wire,0.2 mm ustc wire |
||
0.04mmx345 Ustc Litz Wire High Frequency copper stranded wire
Litz wire is a stranded wire with individually insulated conductors (forming bundles), used with polyester or nylon, and is characterized by improved mechanical properties and excellent dimensional stability. The working voltage of the product is up to 1000Vrms, and the working frequency is up to 500kHz. Color, material and size can be customized according to your needs.
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name :41/0.2mm 40/0.2mm high frequency Enameled silk covered copper litz wire |
|
Key word:41/0.2mm 40/0.2mm high frequency Enameled silk covered copper litz wire |
|
Insulation: nylon /dacron |
|
Thermal rating: 155/180 |
|
Diameter of the enameled copper wire |
|
Number of strands:40 |
|
Type |
