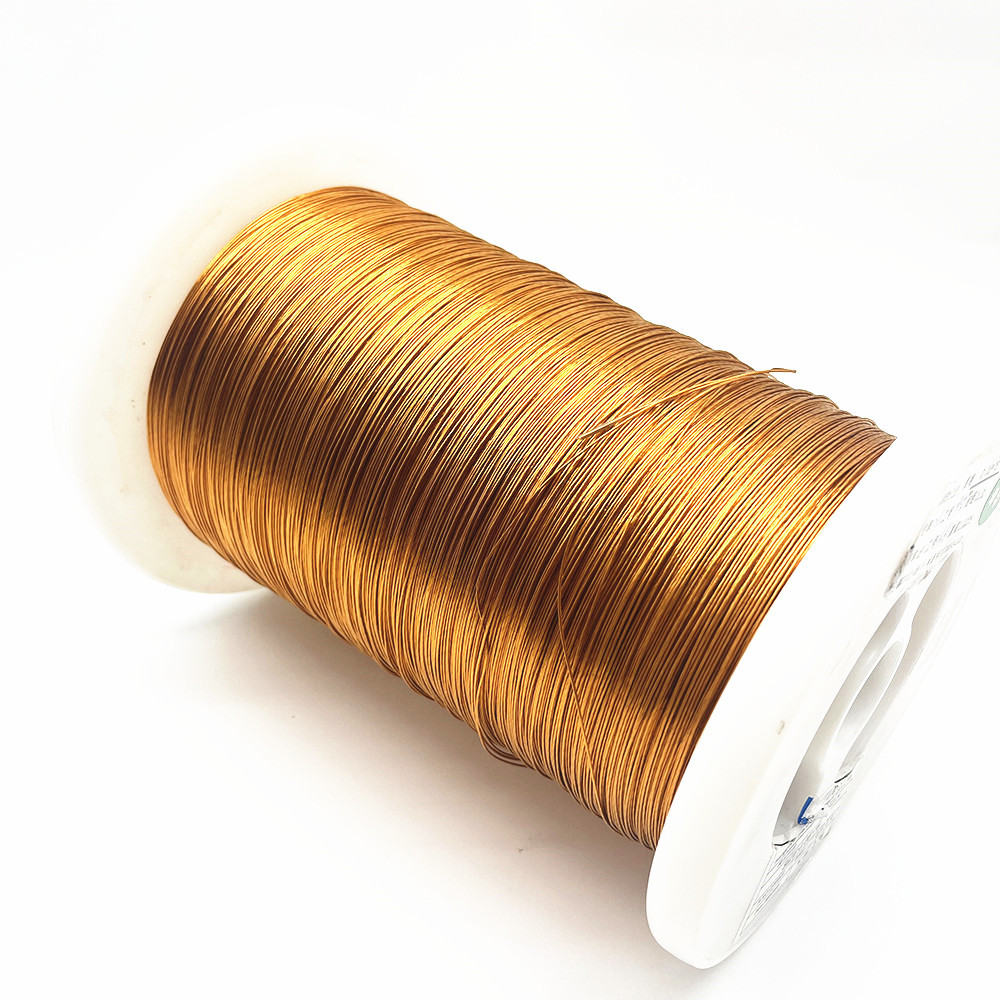

High Frequency Taped Litz Ultra High Temperature Magnet Wire 0.05mm *75

Film coated wire refers to the electromagnetic wire that is coated with synthetic film or other material film as the insulating layer on the surface of the conductor or enamelled twisted wire according to a certain overlap rate.

Product range:

◆ Overlap degree: The overlap degree of the front and rear wrapped films is determined by the inclination angle between the films and the wires during the winding process. The overlapping degree determines the number of overlapping layers of the wrapped film, thus determining the insulation strength of the wrapped wire. At present, there are 50% and 75% in general use.

◆ Number of shares: 1~5000 shares (different specifications, depending on the cross-sectional area)

◆ Completed outer diameter range: 0.25~7mm enamelled single wire (nominal conductor diameter): 0.030~1.8mm

characteristic:

◆ High frequency performance is good.

◆ High temperature and high pressure resistance

◆ Good flexibility and strong mechanical stress resistance

◆ Good waterproof and insulating oil resistance. Suitable for use in sealed environment.

Application:

Medical equipment, inverter, high-frequency inductor and transformer, wireless charger, etc.
