| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Enameled Twisted Multiple Strands Copper Enameled Wire Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom Enameled Twisted Multiple Strands Copper Enameled Wire Litz Wire |
| No. Of Strands: | 2-8000 | ||
| Highlight: | custom copper litz wire,multiple strands copper litz wire,litz bondable magnet wire |
||

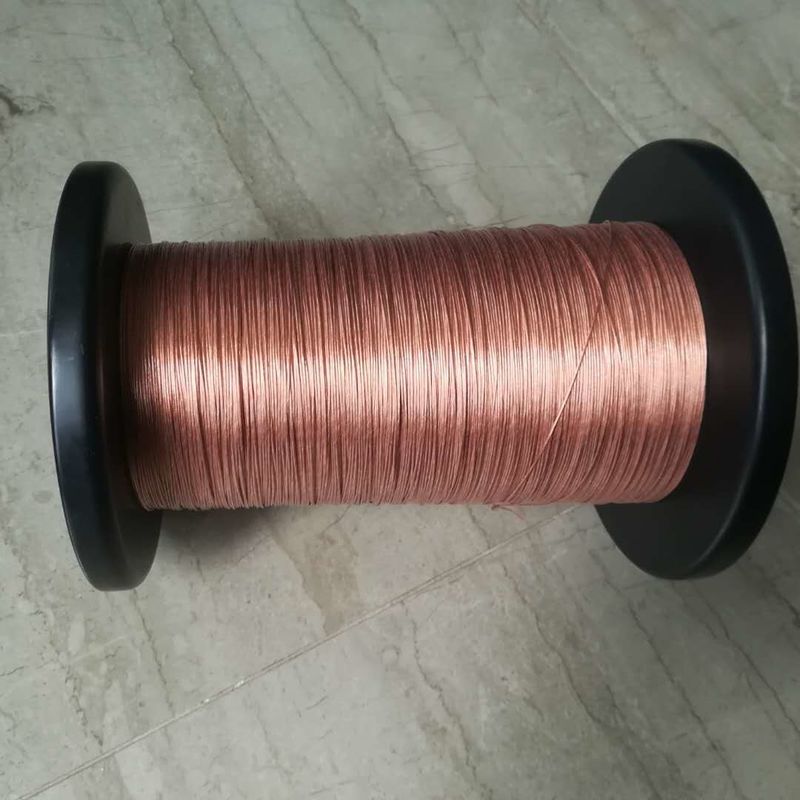

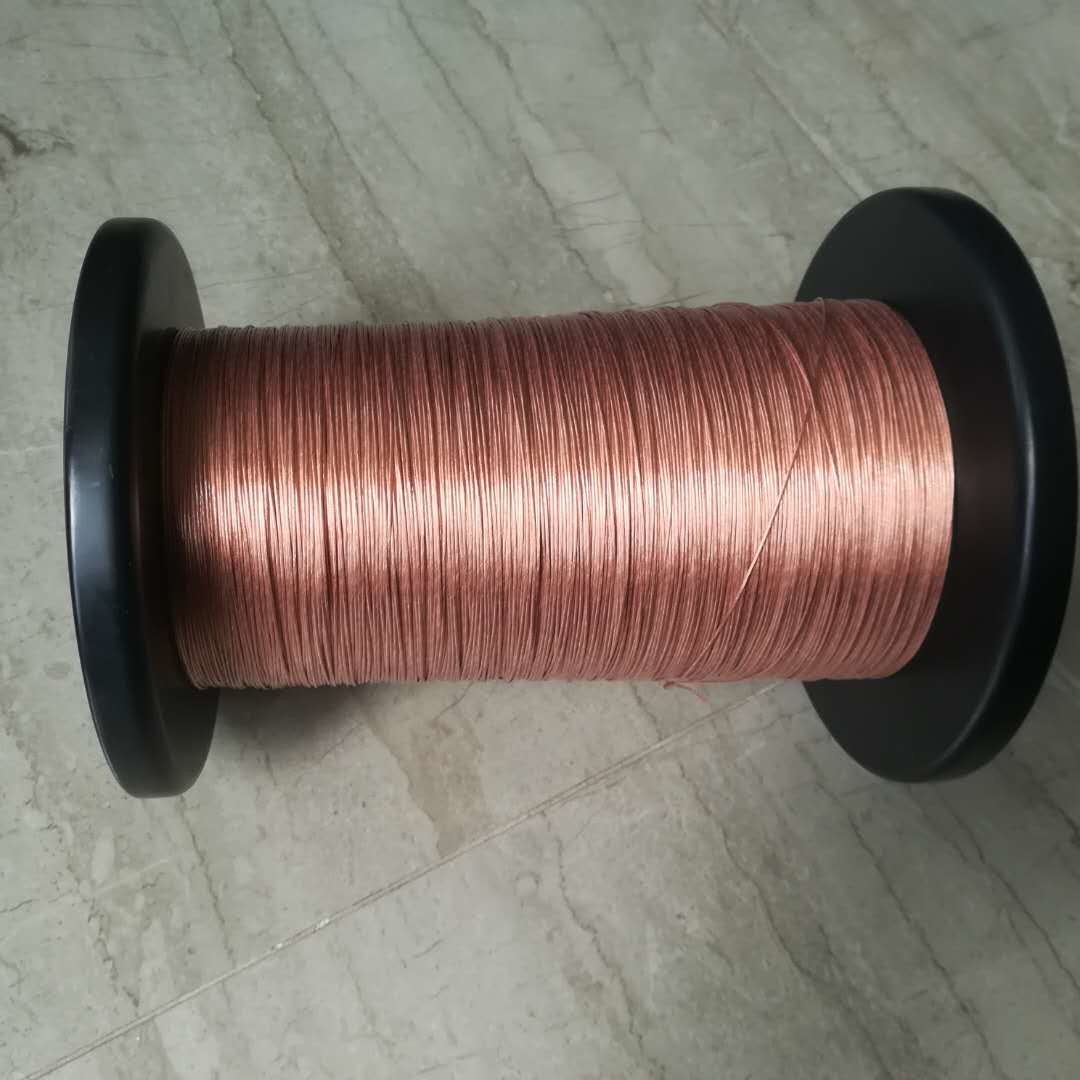

Custom Enameled Twisted Multiple Strands Copper Enameled Wire Litz Wire
Application of Enameled Stranded Wire
1,high frequency inductors, transformers, frequency converters,
2,fuel cells, motors,
3,communications and IT equipment,
4,ultrasonic equipment, sonar equipment,
5,televisions, radio equipment,
6,induction heating, etc.
We are committed to creating enameled stranded wires that meet both standard requirements and customer requirements.
|
Name |
Custom Enameled Twisted Multiple Strands Copper Enameled Wire Litz Wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
Custom Enameled Twisted Multiple Strands Copper Enameled Wire Litz Wire |
| single wire diameter (mm) | 0.03-1.00 |
| number of strands | 2-8000 |
| MaximumOutside Diameter(mm) | 12 |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Twisted | Single twist/multiple twist |
| Pressure resistance | ＞1200 |
| Stranding direction | Forward/ Reverse |
| lay length | 4-110mm |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
