| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.06mm 0.08mm 0.10mm Solderable Stranded Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 0.06mm 0.08mm 0.10mm Solderable Stranded Copper Litz Wire |
| No. Of Strands: | 2-8000 | ||
| Highlight: | 0.06mm enamel insulated wire,solderable enamel insulated wire,litz self bonding copper wire |
||

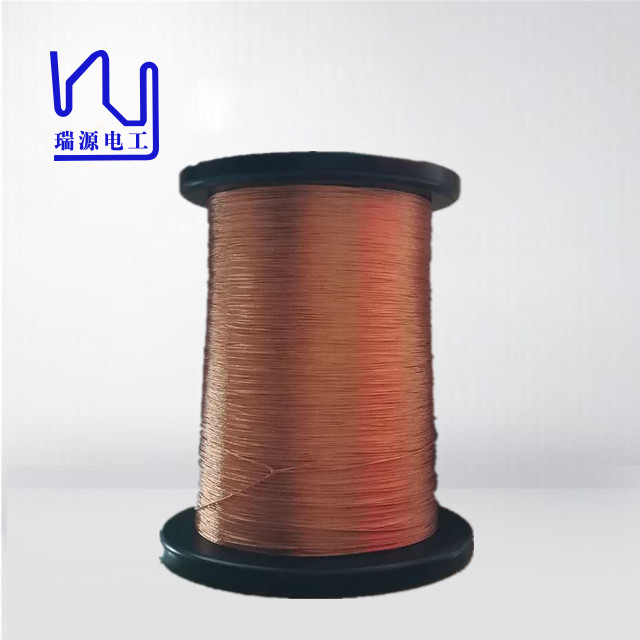

0.06mm 0.08mm 0.10mm Solderable stranded copper litz wire
Copper stranded wire not only has the strength and toughness of steel, but also has the good electrical conductivity and corrosion resistance of copper. Compared with copper single wire, it has the advantages of low density, high strength and low cost. It is a replacement product of traditional pure copper single wire.
|
Name |
0.06mm 0.08mm 0.10mm Solderable stranded copper litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
0.06mm 0.08mm 0.10mm Solderable stranded copper litz wire |
| single wire diameter (mm) | 0.03-1.00 |
| number of strands | 2-8000 |
| MaximumOutside Diameter(mm) | 12 |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Twisted | Single twist/multiple twist |
| Pressure resistance | ＞1200 |
| Stranding direction | Forward/ Reverse |
| lay length | 4-110mm |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
