| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom Class 155 0.1mm X 35mm High Frequency Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom Class 155 0.1mm X 35mm High Frequency Copper Litz Wire |
| No. Of Strands: | 2-8000 | ||
| Highlight: | 38 awg copper litz wire,copper litz wire winding,litz 38 awg magnet wire |
||

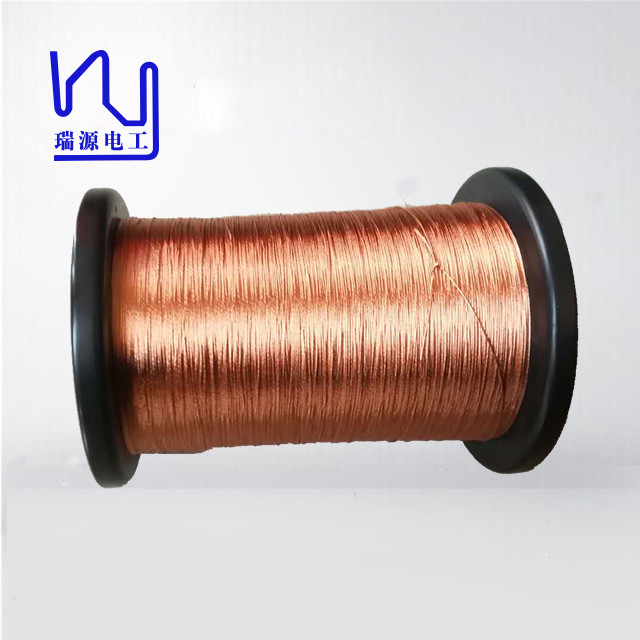

38 AWG 155/180 stranded copper winding wire litz wire
Features of Enameled Stranded Wire
Compared with single wire, Under the same conductor cross-sectional area, the stranded wire has a larger surface area. It can effectively inhibit the influence of the skin effect. Significantly improve the Q value of the coil.
|
Name |
38 AWG 155/180 stranded copper winding wire litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
38 AWG 155/180 stranded copper winding wire litz wire |
| single wire diameter (mm) | 0.03-1.00 |
| number of strands | 2-8000 |
| MaximumOutside Diameter(mm) | 12 |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Twisted | Single twist/multiple twist |
| Pressure resistance | ＞1200 |
| Stranding direction | Forward/ Reverse |
| lay length | 4-110mm |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
