| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Solderable 0.18mm 0.1mm 0.8mm High Frequecny Stranded Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.18mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Solderable 0.18mm 0.1mm 0.8mm High Frequecny Stranded Copper Litz Wire |
| No. Of Strands: | 4 | ||
| Highlight: | solderable enameled wire,0.18mm enameled wire,litz enameled wire |
||

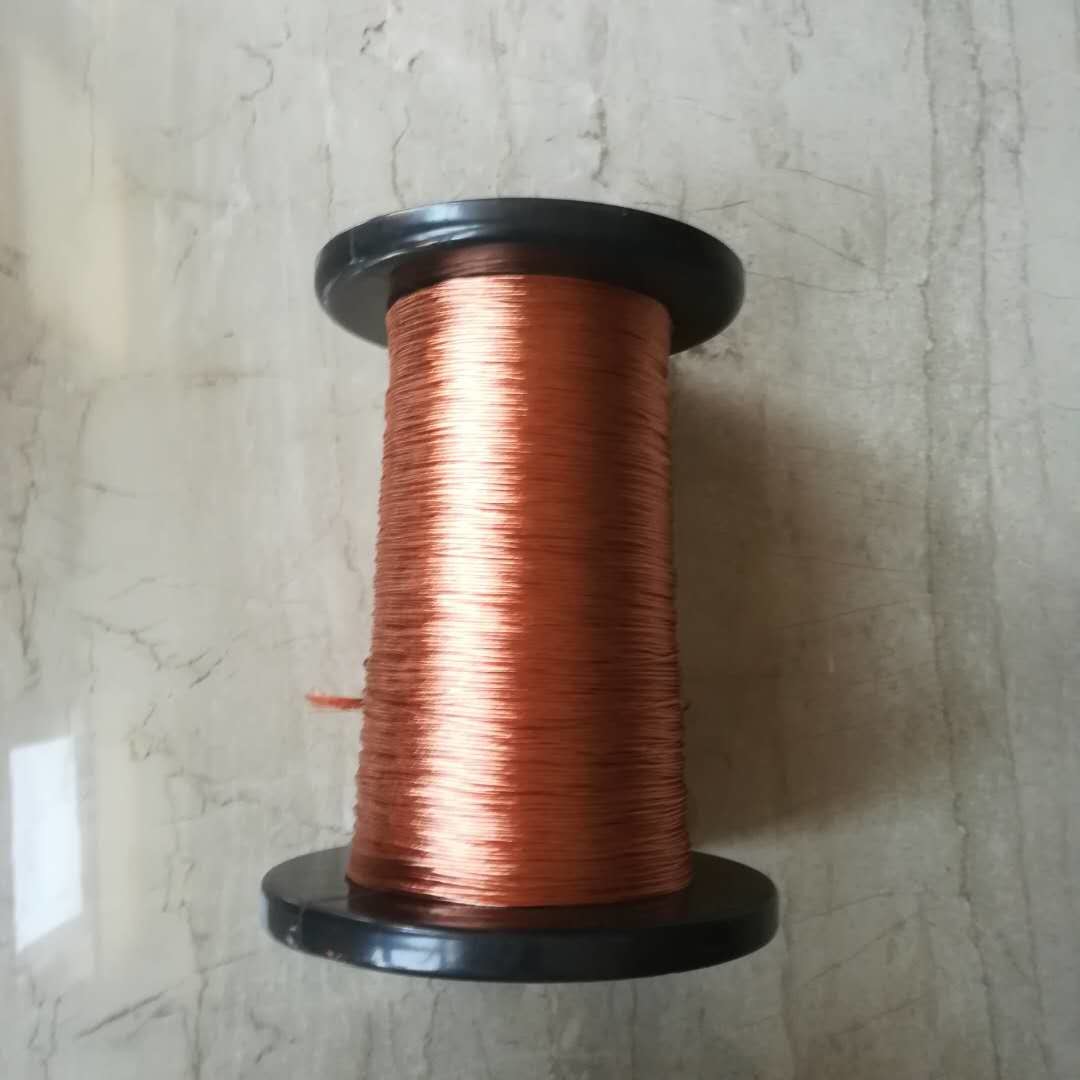

Solderable 0.18mm 0.1mm 0.8mm high frequecny stranded copper litz wire
The unique twisting of Litz wire places each twisted wire on the periphery of the conductor and equally sized on its center. This unique twisting method, combined with carefully selected wire diameters, enables Litz wire to minimize losses from two sources: skin effect and proximity effect.
|
Name |
Solderable 0.18mm 0.1mm 0.8mm high frequecny stranded copper litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
Solderable 0.18mm 0.1mm 0.8mm high frequecny stranded copper litz wire |
| single wire diameter (mm) | 0.18mm |
| number of strands | 4 |
| Maximum Outside Diameter(mm) | 0.49mm |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Pressure resistance | ＞1600V |
| Stranding direction | Forward/ Reverse |
| lay length | 14±2 |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
| Twisted | Single twist/multiple twist |
