| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEWF Solderable 0.18mm*4 Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.18mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UEWF Solderable 0.18mm*4 Copper Litz Wire |
| No. Of Strands: | 4 | ||
| Highlight: | 2uewf copper litz wire,self bonding copper litz wire,litz insulated magnet wire |
||

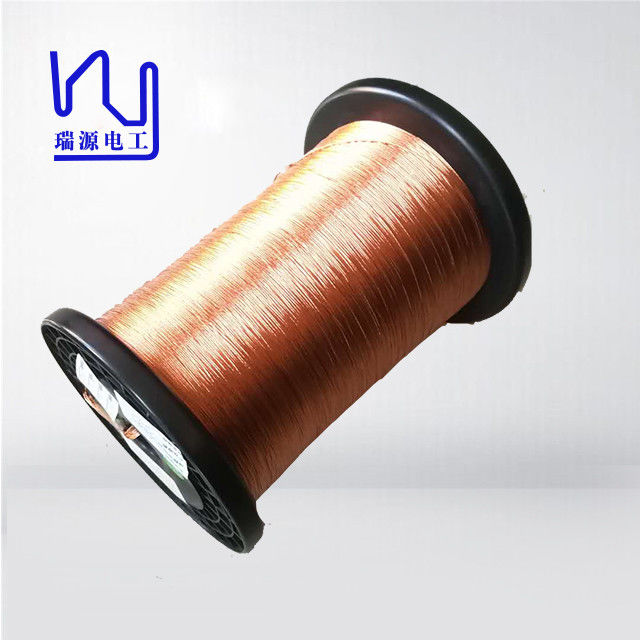

2UEWF Solderable 0.18mm*4 copper litz wire
The single wire takes the center line of the stranded wire as the axis, and is stranded around it in layers and in an orderly manner. The relative position of the single wire is fixed, and the adjacent layers are twisted in opposite directions. This is the twisting process of the twisted wire.
|
Name |
2UEWF Solderable 0.18mm*4 copper litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.18mm |
|
Number of strands |
4 |
|
Key word |
2UEWF Solderable 0.18mm*4 copper litz wire |
| single wire diameter (mm) | 0.18mm |
| number of strands | 4 |
| Maximum Outside Diameter(mm) | 0.49mm |
| Insulation class | class130/class155/class180 |
| Film type | Polyurethane/Polyurethane composite paint |
| Film thickness | 0UEW/1UEW/2UEW/3UEW |
| Pressure resistance | ＞1600V |
| Stranding direction | Forward/ Reverse |
| lay length | 14±2 |
| Color | copper/red |
| Reel Specifications | PT-4/PT-10/PT-15 |
| Twisted | Single twist/multiple twist |
