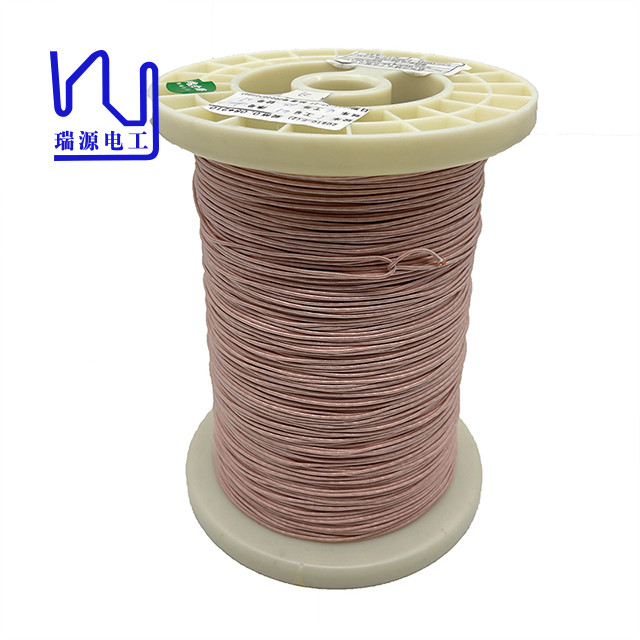

Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz Wire
No. Of Strands:	560
Highlight:	0.03mm copper stranded wire , silk covered copper stranded wire , 1.0 mm multi strand copper wire

Product Description

Custom 0.03mm -1.0 mm Copper stranded wire silk covered litz wire

Enameled stranded wire is also called Litz wire. It is a high-frequency electromagnetic wire that is twisted together by a number of enameled single wires, according to a certain structure and a specific laying distance.

We can customize the enameled stranded wire that is more suitable for you according to the specific parameters you provide. As long as you know the operating frequency and RMS current required for your application, we can customize a stranded wire for your product.

Serving Material	Nylon	Dacron	Natural Silk
Recommended Operation temperature	120℃	120℃	110℃
Elongation at Break	25-46%	25-46%	13-25%
Moisture absorption	2.5-4	0.8-1.5	9
Color	White/Red	White/Red	White
Self bonding layer Option	Yes	Yes	Yes

Name	Custom 0.03mm -1.0 mm Copper stranded wire silk covered litz wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	Custom 0.03mm -1.0 mm Copper stranded wire silk covered litz wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz 0

Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz 1

Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz 2

Custom 0.03mm -1.0 Mm Copper Stranded Wire Silk Covered Litz 3
