| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | Custom 0.06mm 0.08mm 1.0mm Copper Twist Wire Polyester Nylon Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Custom 0.06mm 0.08mm 1.0mm Copper Twist Wire Polyester Nylon Litz Wire |
| No. Of Strands: | 560 | ||
| Highlight: | 0.06mm ustc litz wire,ustc litz wire custom,0.08mm enamel copper wire |
||

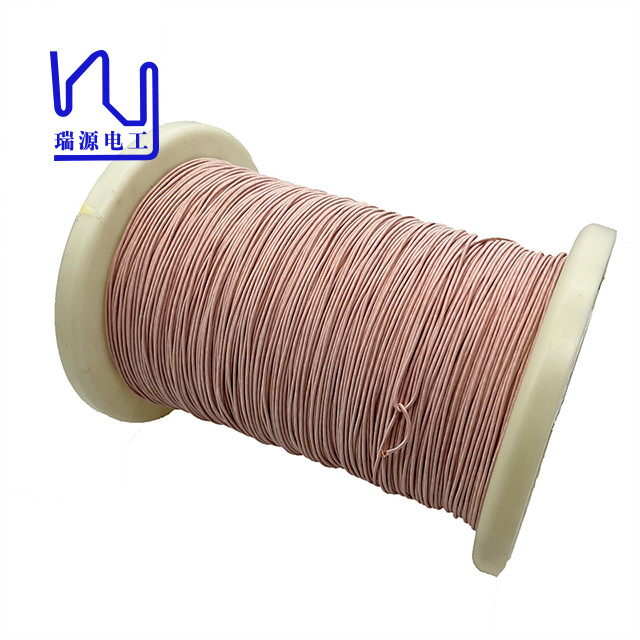

Custom 0.06mm 0.08mm 1.0mm Copper twist wire polyester nylon litz wire
Compared with single wire, Under the same conductor cross-sectional area, the stranded wire has a larger surface area. It can effectively inhibit the influence of the skin effect. Significantly improve the Q value of the coil.
Copper stranded wire not only has the strength and toughness of steel, but also has the good electrical conductivity and corrosion resistance of copper. Compared with copper single wire, it has the advantages of low density, high strength and low cost. It is a replacement product of traditional pure copper single wire
| Serving Material | Nylon | Dacron | Natural Silk |
| Recommended Operation temperature | 120℃ | 120℃ | 110℃ |
| Elongation at Break | 25-46% | 25-46% | 13-25% |
| Moisture absorption | 2.5-4 | 0.8-1.5 | 9 |
| Color | White/Red | White/Red | White |
| Self bonding layer Option | Yes | Yes | Yes |
|
Name |
Custom 0.06mm 0.08mm 1.0mm Copper twist wire polyester nylon litz wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.08mm |
|
Number of strands |
155 / 180 |
|
Type |
Custom 0.06mm 0.08mm 1.0mm Copper twist wire polyester nylon litz wire |
