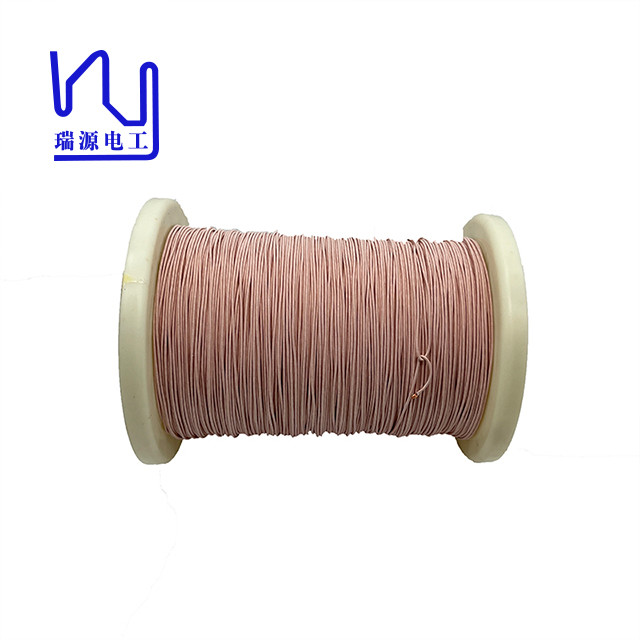

Magnet 40 Awg 155 Ustc Litz Wire Enameld Silk Covered

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	40 AWG USTC 155 Enameld Wire Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	40 AWG USTC 155 Enameld Wire Silk Covered Litz Wire
No. Of Strands:	560
Highlight:	enameld ustc litz wire , 155 ustc litz wire , ustc 40 awg magnet wire

Product Description

40 AWG USTC 155 Enameld Wire Silk Covered Litz Wire

Silk covered litz wire is used to make inductors and transformers, especially for high frequency applications where the skin effect is more pronounced and proximity effect can be an even more severe problem.

The features and benefits of silk severed litz wire:

Low MOQ: 20kg for each size
Fast delivery: 7-10days for sample and also bulk orders
Customized structures and strands combination. Here is the size range we can provide

Serving Material	Nylon	Dacron	Natural Silk
Recommended Operation temperature	120℃	120℃	110℃
Elongation at Break	25-46%	25-46%	13-25%
Moisture absorption	2.5-4	0.8-1.5	9
Color	White/Red	White/Red	White
Self bonding layer Option	Yes	Yes	Yes

Name	40 AWG USTC 155 Enameld Wire Silk Covered Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	40 AWG USTC 155 Enameld Wire Silk Covered Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Magnet 40 Awg 155 Ustc Litz Wire Enameld Silk Covered 0

Magnet 40 Awg 155 Ustc Litz Wire Enameld Silk Covered 1

Magnet 40 Awg 155 Ustc Litz Wire Enameld Silk Covered 2

Magnet 40 Awg 155 Ustc Litz Wire Enameld Silk Covered 3
