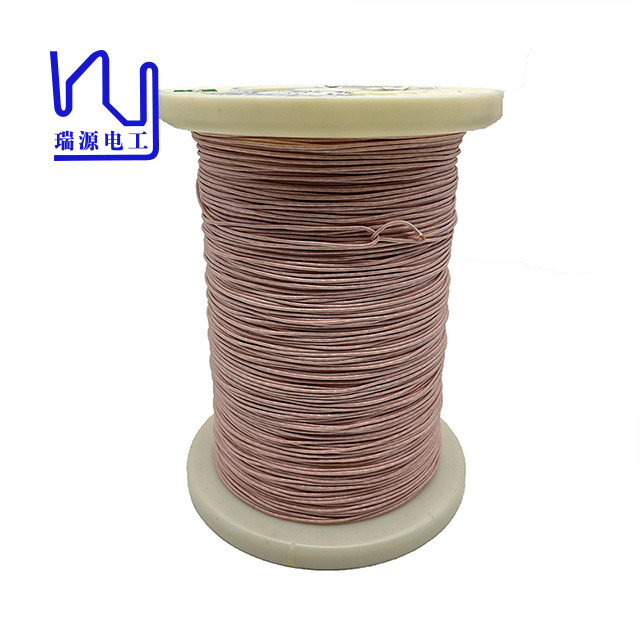

0.08mmx210 Ustc Litz Wire High Frequency Enameld Stranded Silk Covered

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.08mmx210 USTC High Frequency Enameld Stranded Wire Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.08mmx210 USTC High Frequency Enameld Stranded Wire Silk Covered Litz Wire
No. Of Strands:	560
Highlight:	0.08mm ustc litz wire , high frequency ustc litz wire , ustc coated magnet wire

Product Description

0.08mmx210 USTC High Frequency Enameld Stranded Wire Silk Covered Litz Wire

Silk covered litz wire or USTC,UDTC,has a nylon top coat over the regular litz wires to enhance the mechanical properties of insulation coat, like nominal litz wire designed to reduce the skin effect and proximity effect losses in conductors used at frequencies up to about 1 MHz.

Silk covered or silk severed litz wire, that is high frequency litz wire wrapped with Nylon, Dacron or Natural silk, which is characterized by increased dimensional stability and mechanical protection

Serving Material	Nylon	Dacron	Natural Silk
Recommended Operation temperature	120℃	120℃	110℃
Elongation at Break	25-46%	25-46%	13-25%
Moisture absorption	2.5-4	0.8-1.5	9
Color	White/Red	White/Red	White
Self bonding layer Option	Yes	Yes	Yes

Name	0.08mmx210 USTC High Frequency Enameld Stranded Wire Silk Covered Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	155 / 180
Type	0.08mmx210 USTC High Frequency Enameld Stranded Wire Silk Covered Litz Wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.08mmx210 Ustc Litz Wire High Frequency Enameld Stranded Silk Covered 0

0.08mmx210 Ustc Litz Wire High Frequency Enameld Stranded Silk Covered 1

0.08mmx210 Ustc Litz Wire High Frequency Enameld Stranded Silk Covered 2

0.08mmx210 Ustc Litz Wire High Frequency Enameld Stranded Silk Covered 3
