| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 2UEW 155 USTC High Frequency Copper Stranded Litz Wire For Winding | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.08mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | 2UEW 155 USTC High Frequency Copper Stranded Litz Wire For Winding |
| No. Of Strands: | 24 | ||
| Highlight: | 2uew ustc litz wire,high frequency ustc litz wire,winding ustc wire |
||

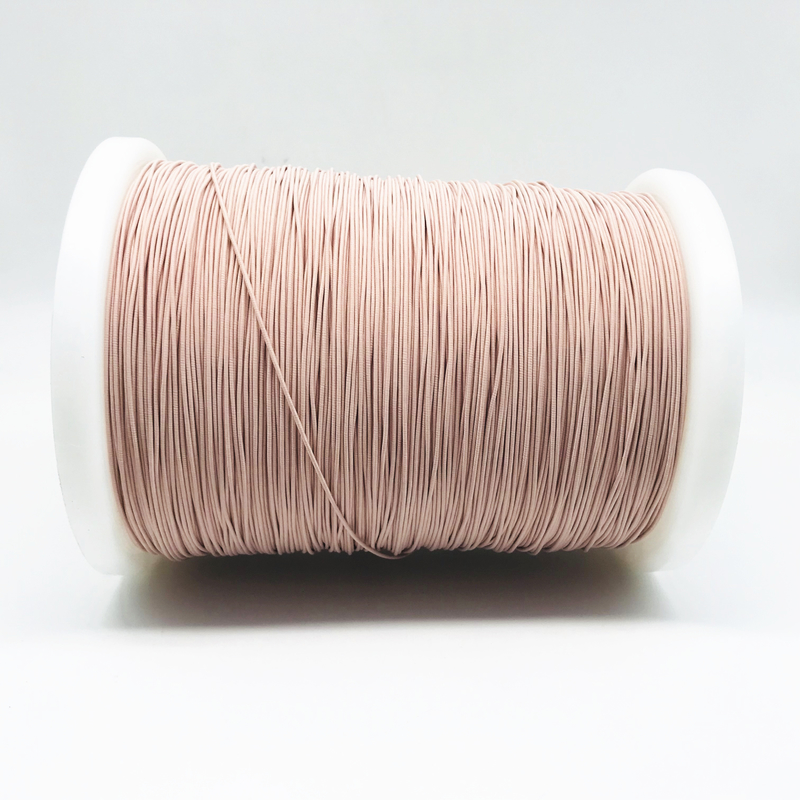

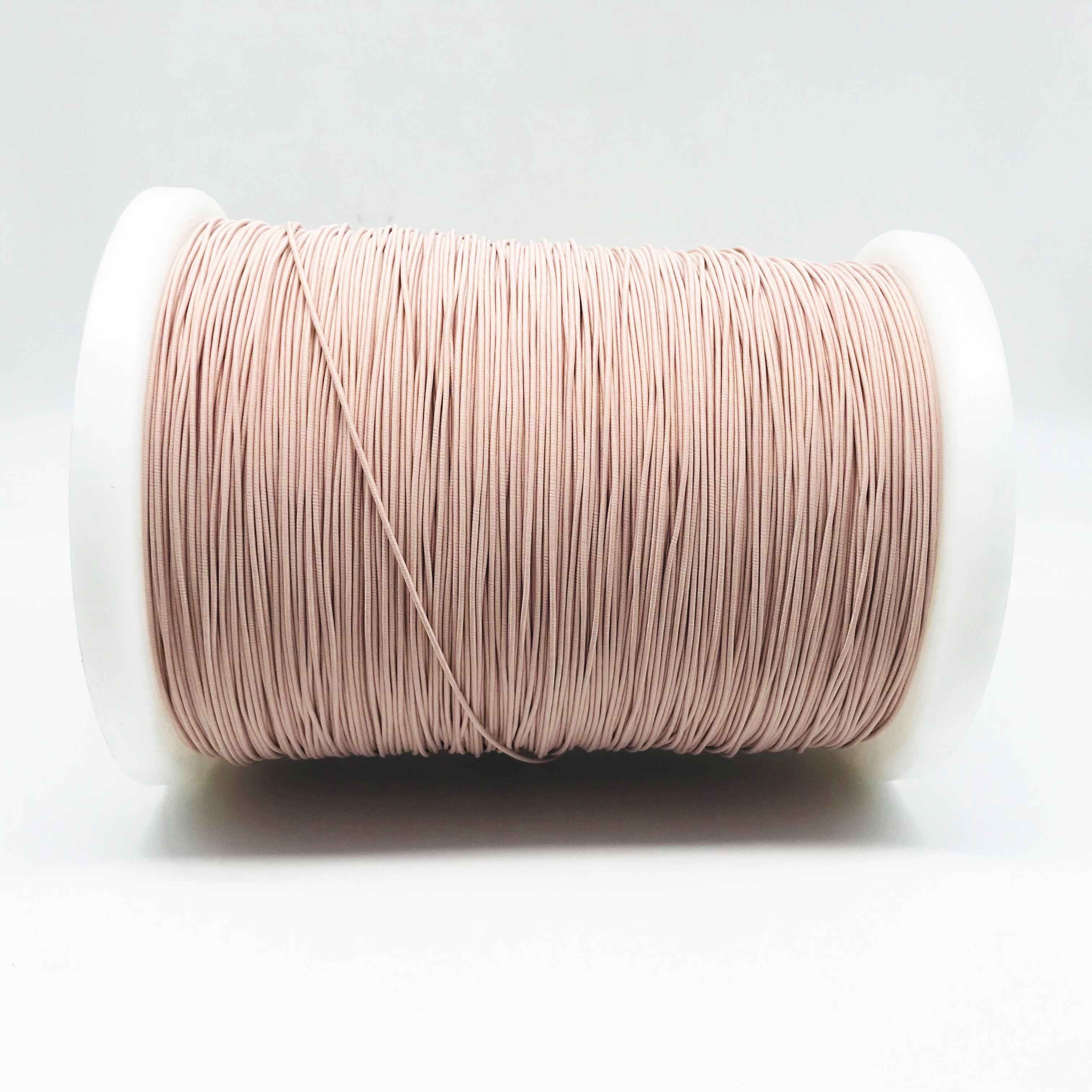

2UEW 155 USTC High frequency copper stranded litz wire for winding
- Good high frequency performance.
- Godd resistance to high temperature and high pressure.
- Good performance and strong mechanical resistance.
- Good waterproof and anti-insulation oil. Suitable for use in sealed environments.
|
Name |
2UEW 155 USTC High frequency copper stranded litz wire for winding |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.08mm |
|
Number of strands |
155 / 180 |
|
Type |
2UEW 155 USTC High frequency copper stranded litz wire for winding |
