Detail Information

Name:	0.03-0.8mm Silk Covered Double Layer High Frequency Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.2mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.03-0.8mm Silk Covered Double Layer High Frequency Litz Wire
No. Of Strands:	50
Highlight:	0.03mm litz copper wire , double layer litz copper wire , 0.8mm hf litz wire

Product Description

0.04-0.3mm Silk Covered Double Layer High Frequency Litz Wire

Ruiyuan offers an industry-leading range of high-quality, high temperature electronic wire. In addition to the wires you will find on our website, we manufacture custom insulated products to meet your requirements, always striving to exceed customer expectations. Use this product search and website to make your project a success, from research/development to production, with responsive service and excellent technical support. All of our products are subjected so 100% quality testing helping ensure you receive the highest quality insulated wire on the market.

Name	0.03-0.8mm Silk Covered Double Layer High Frequency Litz Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	155 / 180
Type	0.03-0.8mm Silk Covered Double Layer High Frequency Litz Wire

Characteristics	Technical requests	Test Results	Conclusion
Inner diameter	0.20±0.003 mm	0.198-0.20	OK
Thickness of coating	≥ 0.003mm	0.004	OK
Outer diameter	≤ 1.94mm	1.77-1.85	OK
Twist direction	S/Z	Z	OK
Strands	50	50	OK
Twist Pitch	32±3 mm	33	OK
Breakdown Voltage	1600V	3100V	OK
Conductor Resistance	≤ 0.01154Ω/m	0.01080	OK
Solder ability	YES	YES	OK
Pin Hole	≤35pcs/6m	7	OK
Remark: The product meet the requirement of RoHS		Conclusion: Approved

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

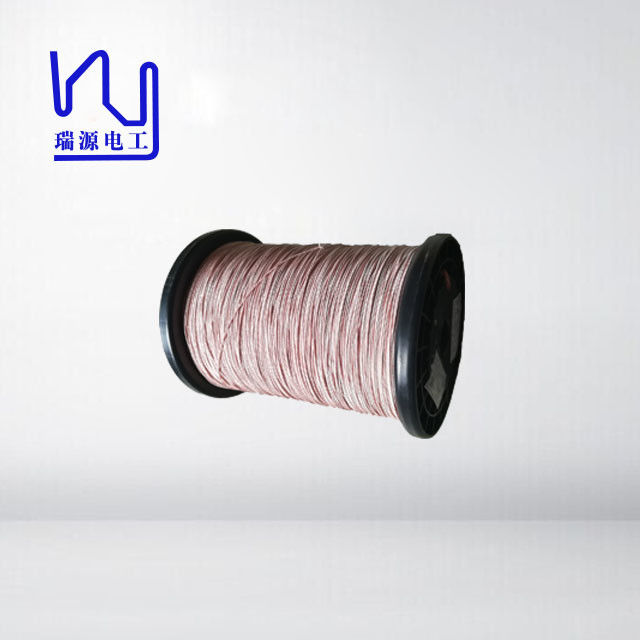

0.03-0.8mm Litz Copper Wire Silk Covered Double Layer High Frequency 0

0.03-0.8mm Litz Copper Wire Silk Covered Double Layer High Frequency 1

0.03-0.8mm Litz Copper Wire Silk Covered Double Layer High Frequency 2

0.03-0.8mm Litz Copper Wire Silk Covered Double Layer High Frequency 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

0.03-0.8mm Litz Copper Wire Silk Covered Double Layer High Frequency

0.03mm litz copper wire

double layer litz copper wire

0.8mm hf litz wire

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand
