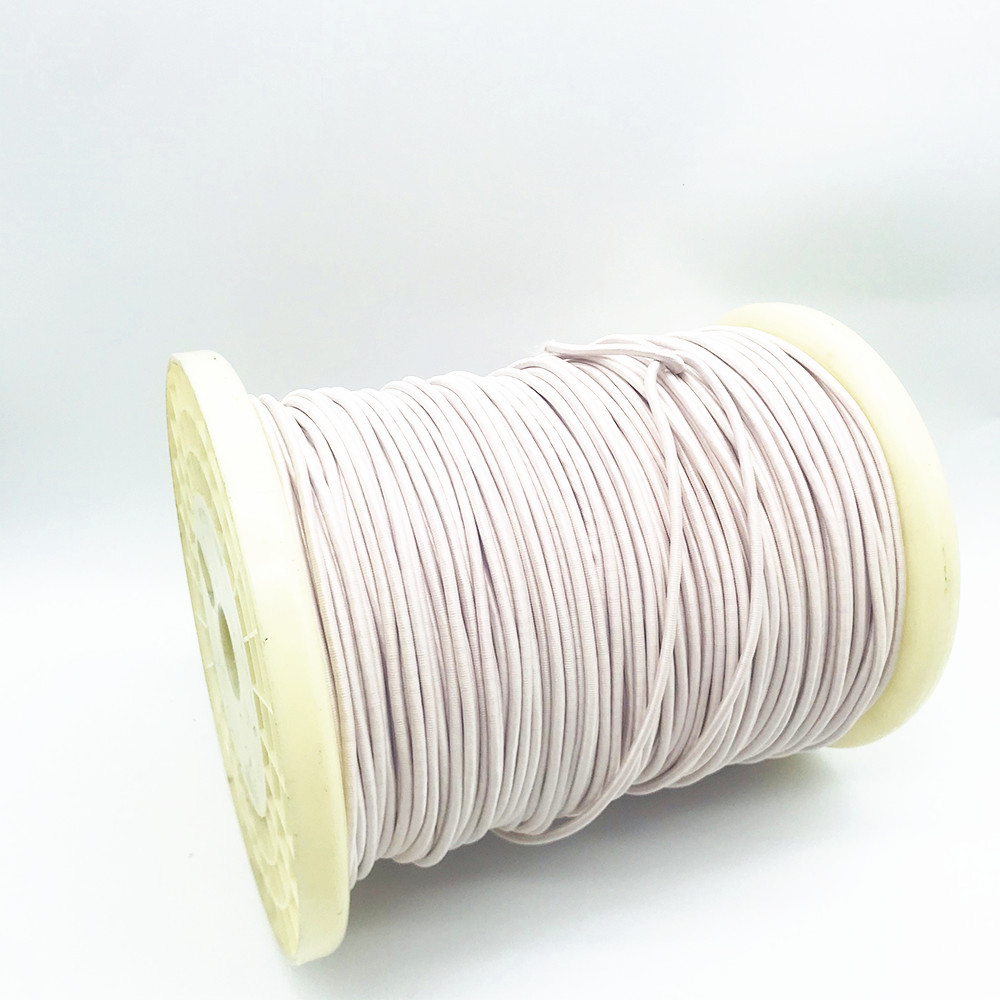

Silk Covered High Frequency Wire Litz 0.10 * 630mm Enamel Copper

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Silk Covered High Frequency Litz Wire 0.10 * 630mm Enamel Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Silk Covered High Frequency Litz Wire 0.10 * 630mm Enamel Copper Wire
No. Of Strands:	630
Highlight:	silk covered wire litz , high frequency wire litz , 0.10mm high frequency litz wire

Product Description

Silk Covered High Frequency Litz Wire 0.10 * 630mm Enamel Copper Wire

The implementation of self bonding silked coverd litz wire makes coil shape more beautiful.
Design:
New design or recommmendation according to customer requirements for size,turns,current,power and environmental parameters.

Name	Silk Covered High Frequency Litz Wire 0.10 * 630mm Enamel Copper Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	630
Type	Silk Covered High Frequency Litz Wire 0.10 * 630mm Enamel Copper Wire

Characteristics	Technical requests	Test Results	Conclusion
1	Inner diameter	0.10±0.003mm	0.098-0.10	OK
2	Thickness of coating	≥ 0.003mm	0.004	OK
3	Outer diameter	≤ 4.34mm	3.45-3.60	OK
4	Twist direction	S/Z	Z	OK
5	Strands	630	630	OK
6	Twist Pitch	65±3 mm	66	OK
7	Breakdown Voltage	1100V	2400V	OK
8	Conductor Resistance	≤ 0.003779Ω/m	0.00344	OK
9	Solder ability	YES	YES	OK
10	Pin Hole	≤100pcs/6m	35	OK
Remark: The product meet the requirement of RoHS			Conclusion: Approved

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Silk Covered High Frequency Wire Litz 0.10 * 630mm Enamel Copper 0

Silk Covered High Frequency Wire Litz 0.10 * 630mm Enamel Copper 1

Silk Covered High Frequency Wire Litz 0.10 * 630mm Enamel Copper 2

Silk Covered High Frequency Wire Litz 0.10 * 630mm Enamel Copper 3
