Detail Information

Name:	0.08mm 180 Degree USTC Litz Wire Coil / Silk Covered Enameled Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.08mm 180 Degree USTC Litz Wire Coil / Silk Covered Enameled Copper Wire
No. Of Strands:	270
Highlight:	0.08mm ustc litz wire , 180 degree ustc litz wire , ustc type litz wire

Product Description

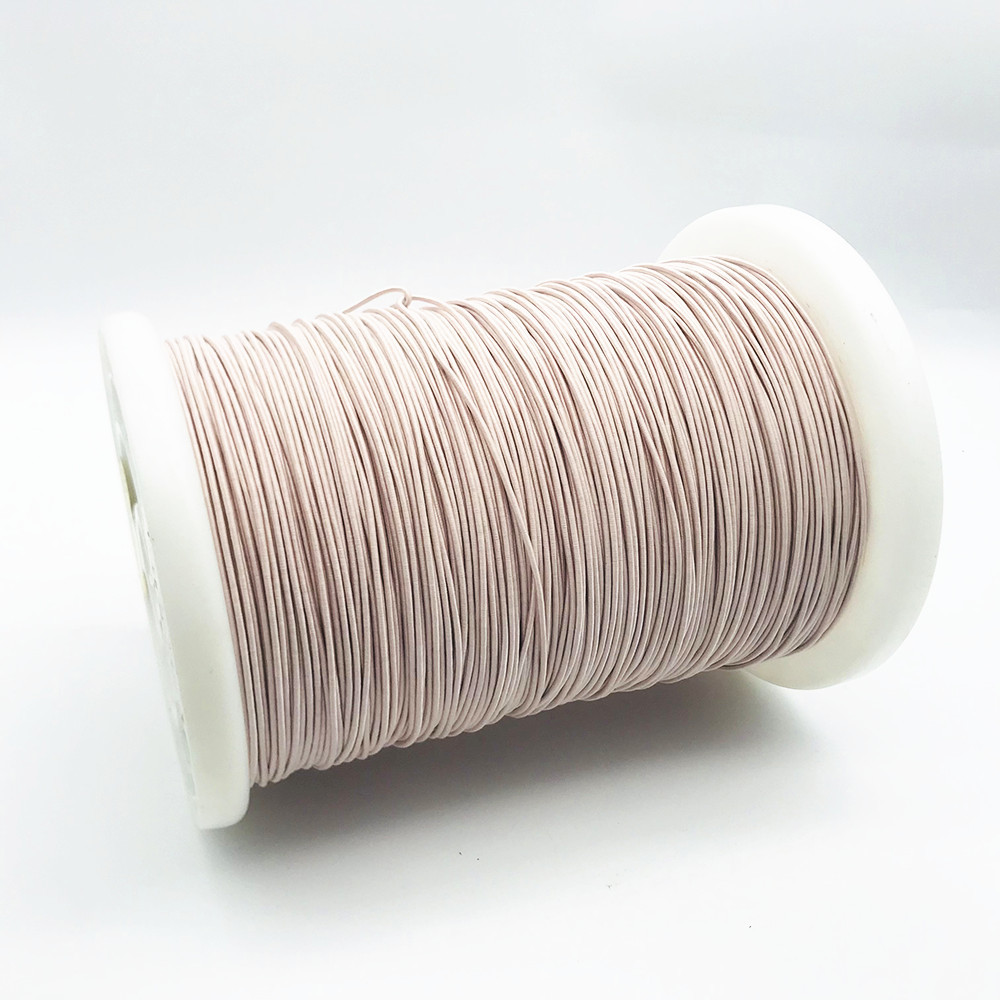

0.08mm 180 degree USTC Litz Wire Coil / Silk Covered Enameled Copper Wire

Polyester silk covered wire
The electromagnetic wire wrapping wire is made of polyester polyester as wrapping material. The biggest feature of polyester silk covered wire is its direct weldability. There is no need for sand head in use, and it can be directly welded, which avoids the virtual welding caused by uneven sand head and improves the welding quality. Its insulation performance, high frequency performance, heat resistance, etc. are higher than those of natural silk covered wire. The product has been tested many times, and its Q value and inductance value L are higher than or equal to the same type of imported polyester silk covered wire. Polyester silk is a chemical fiber product, it is rich in resources, and its price is 70% lower than that of natural silk. Polyester silk covered wire is a promising electromagnetic wire product.

Name	0.08mm 180 degree USTC Litz Wire Coil / Silk Covered Enameled Copper Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	270
Type	0.08mm 180 degree USTC Litz Wire Coil / Silk Covered Enameled Copper Wire

Characteristics	Technical requests	Test Results	Conclusion
Inner diameter	0.08±0.003 mm	0.08	OK
Thickness of coating	≥ 0.007mm	0.011	OK
Outer diameter	≤ 0.094mm	0.091	OK
Twist direction	S/Z	Z	OK
Strands	270	270	OK
Twist Pitch	28±4 mm	28	OK
Breakdown Voltage	850V	1830V	OK
Conductor Resistance	≤ 14.12Ω/km	12.54	OK
Solder ability	YES	YES	OK
Pin Hole	≤540PCS/5m	16	OK
Overlapping Rate	33%/50%/60%	50%	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

0.08mm 180 Degree Ustc Litz Wire Coil / Silk Covered 0

0.08mm 180 Degree Ustc Litz Wire Coil / Silk Covered 1

0.08mm 180 Degree Ustc Litz Wire Coil / Silk Covered 2

0.08mm 180 Degree Ustc Litz Wire Coil / Silk Covered 3

Tag:

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand
