0.08mm X 270 Hf Litz Wire Silk Covered Insulated Nylon Uew Magnet

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	0.08mm X 270 Silk Covered Insulated Nylon Uew Magnet USTC Litz Copper Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.08mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	0.08mm X 270 Silk Covered Insulated Nylon Uew Magnet USTC Litz Copper Wire
No. Of Strands:	270
Highlight:	0.08mm hf litz wire , uew hf litz wire , litz type copper magnet wire

Product Description

0.08mm X 270 Silk Covered Insulated Nylon Uew Magnet USTC Litz Copper Wire

USTC Litz Wire

The size range we can make is 0.03-0.8mm, and NO.of strands is 2-4000. Sometimes customer need twist the wire with multiple twisting, we can make according to you request.

Name	0.08mm X 270 Silk Covered Insulated Nylon Uew Magnet USTC Litz Copper Wire
Key word	Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Number of strands	270
Type	0.08mm X 270 Silk Covered Insulated Nylon Uew Magnet USTC Litz Copper Wire

Characteristics	Technical requests	Test Results	Conclusion
Inner diameter	0.08±0.003 mm	0.08	OK
Thickness of coating	≥ 0.007mm	0.011	OK
Outer diameter	≤ 0.094mm	0.091	OK
Twist direction	S/Z	Z	OK
Strands	270	270	OK
Twist Pitch	28±4 mm	28	OK
Breakdown Voltage	850V	1830V	OK
Conductor Resistance	≤ 14.12Ω/km	12.54	OK
Solder ability	YES	YES	OK
Pin Hole	≤540PCS/5m	16	OK
Overlapping Rate	33%/50%/60%	50%	OK

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

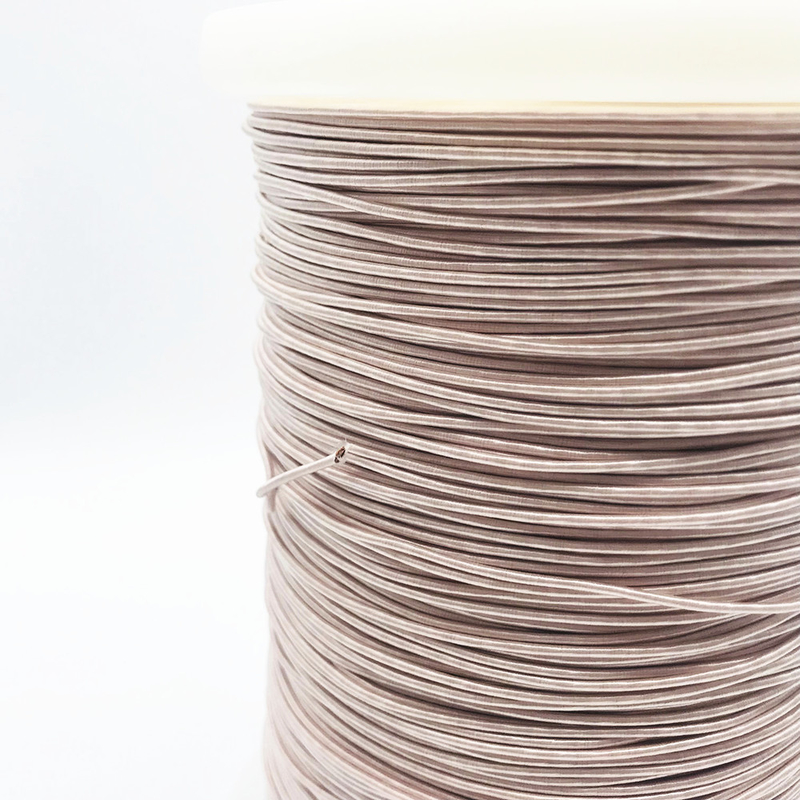

0.08mm X 270 Hf Litz Wire Silk Covered Insulated Nylon Uew Magnet 0

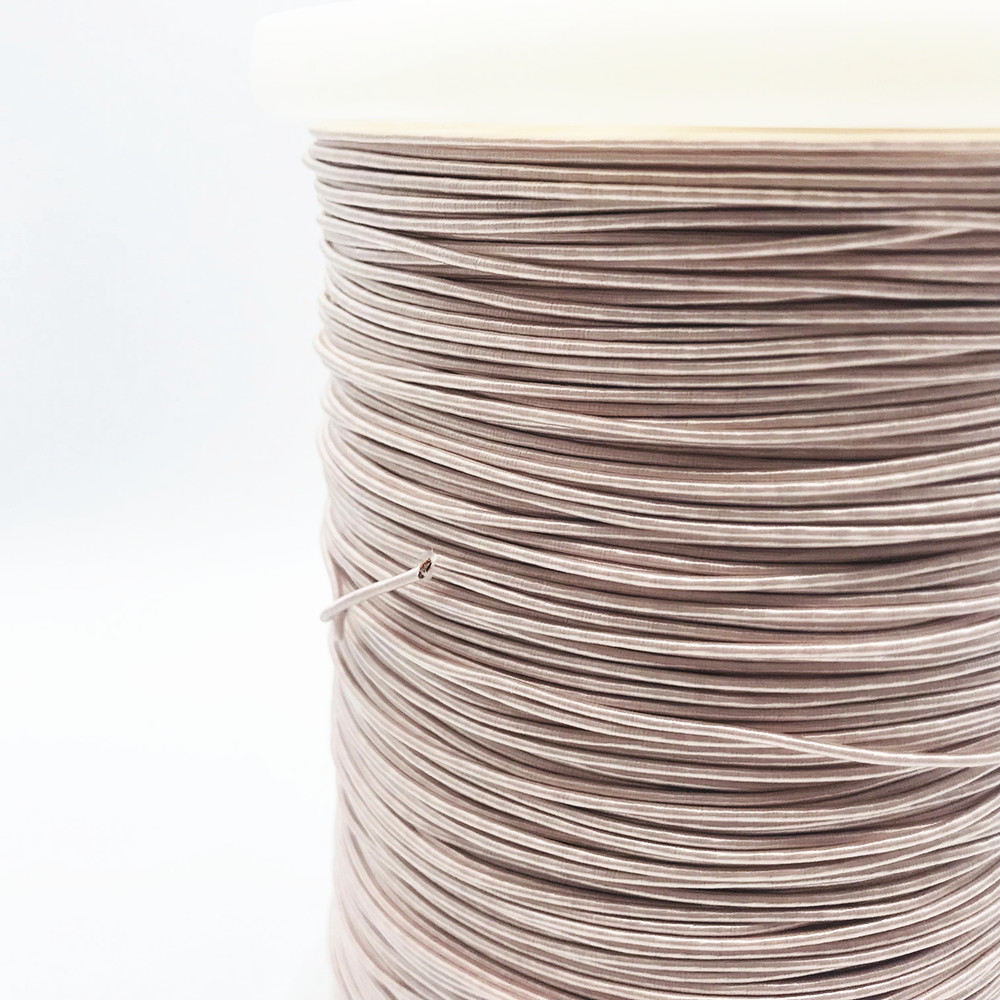

0.08mm X 270 Hf Litz Wire Silk Covered Insulated Nylon Uew Magnet 1

0.08mm X 270 Hf Litz Wire Silk Covered Insulated Nylon Uew Magnet 2

0.08mm X 270 Hf Litz Wire Silk Covered Insulated Nylon Uew Magnet 3
