| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | High Temperature High Frequency Enameled Stranded Wire Copper Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.1mm | Key Word: | Copper Litz Wire |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | No. Of Strands: | 2 |
| Highlight: | copper litz wire 0.1 mm,2 strands copper litz wire,high temperature hf litz wire |
||

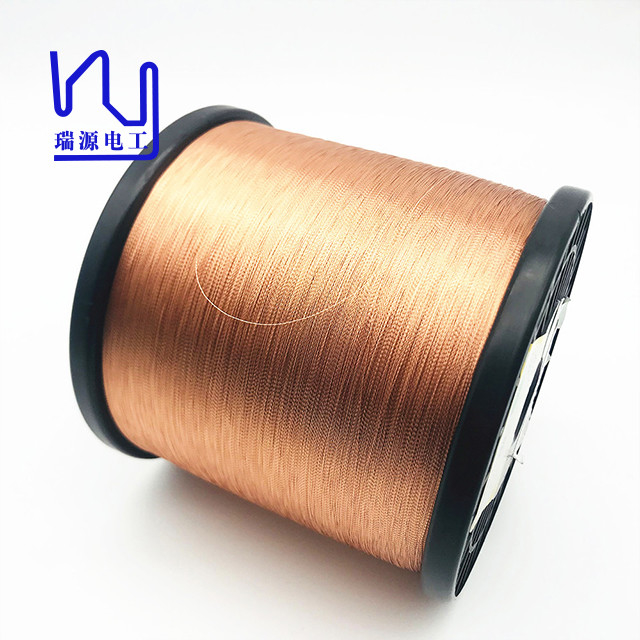

High Temperature High Frequency Enameled Stranded Wire Copper Litz Wire
Typically, the engineer requiring the use of litz wire know as the operating frequency and RMS current required for the application. Since the primary benefit of a litz conductor is the reduction of A.C. losses, the first consideration in any litz design is the operating frequency. The operating frequency not only influences the actual litz construction, but is alos used to determine the individual wire gauge.
|
Name |
Class 180 High Frequency Enameled Copper Litz Wire For Winding |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.1mm |
|
Number of strands2 |
2 |
|
Type |
litz wire |
