| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.18mm Enameled Copper Taped Mylar Litz Wire For RF Transformer | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.18mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Copper Litz Wire |
| No. Of Strands: | 1386 | ||
| Highlight: | 0.18mm enameled magnet wire,rf transformer enameled magnet wire,0.18mm winding magnet wire |
||

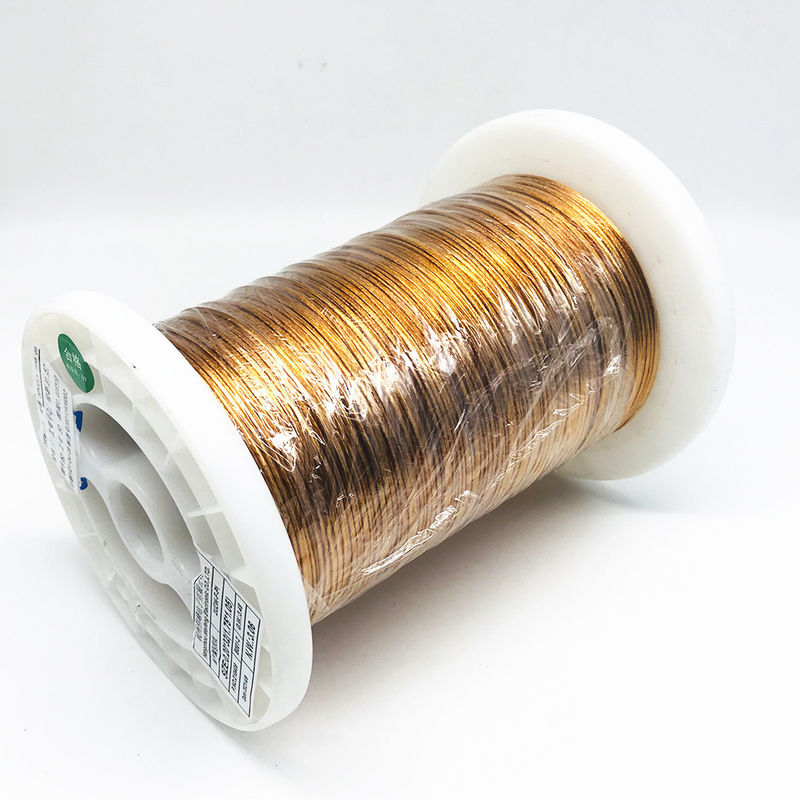

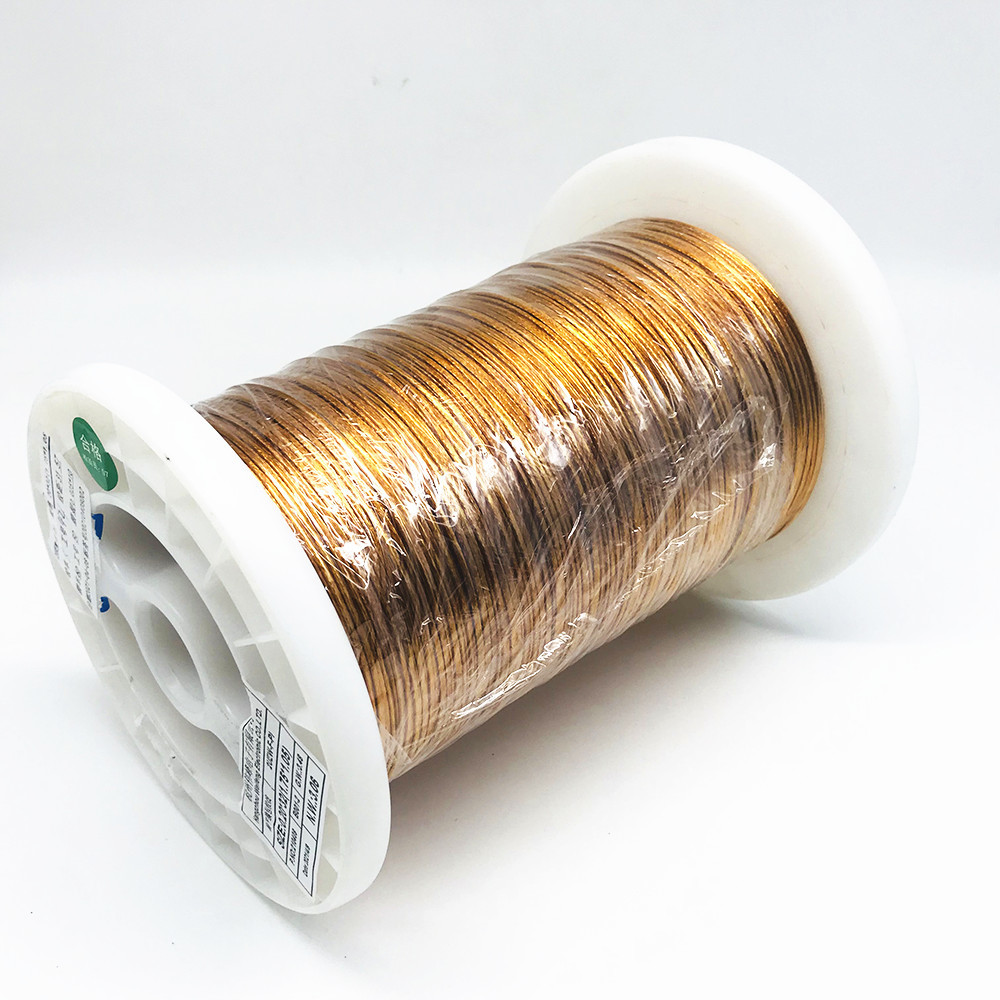

0.18mm Enameled Copper Taped Mylar Litz Wire for RF Transformer
The result of these winding patterns is to equalize the proportion of the overall length over which each strand is at the outside of the conductor. This has the effect of distributing the current equally among the wire strands, reducing the resistance. Litz wire is used in high Q inductors for radio transmitters and receivers operating at low frequencies, induction heating equipment and switching power supplies.
|
Name |
High voltage taped litz wire with size 0.18mm x 1386 |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.1mm |
|
Number of strands |
95 |
|
Type |
Silk covered litz wire |
