| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.4mm X24 Strands PET Taped High Frequency Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.4mm | Cover Material: | PET |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Copper Litz Wire |
| No. Of Strands: | 24 | ||
| Highlight: | 24 strands high frequency litz wire,pet taped high frequency litz wire,0.4mm hf litz wire |
||

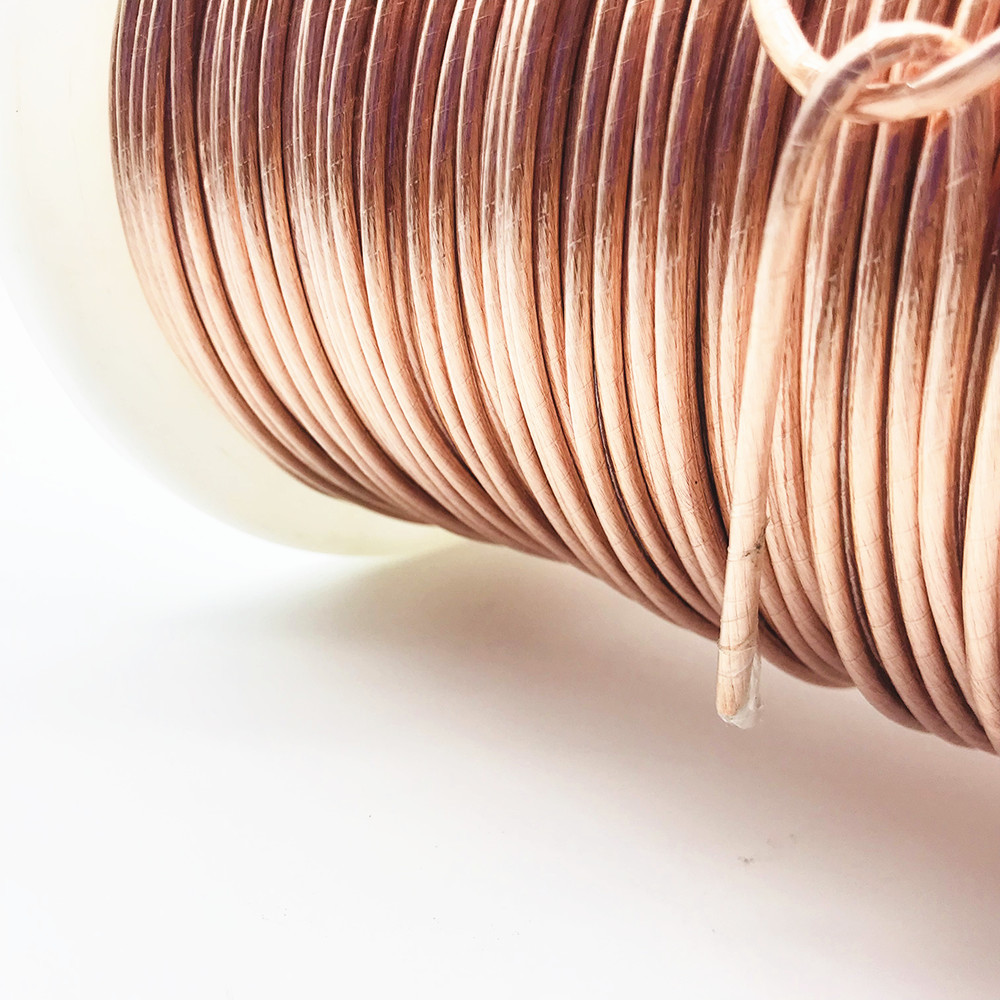

0.4mm x24 Strands PET Taped High Frequency Litz Wire
Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Some tapes can be thermally sealed, when used in conjunction with certain wire enamel types
|
Name |
0.4mm x24 Strands PET Taped High Frequency Litz Wire |
|
Key word |
Mylar litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.4mm |
|
Number of strands |
24 |
|
Type |
Silk covered litz wire |
