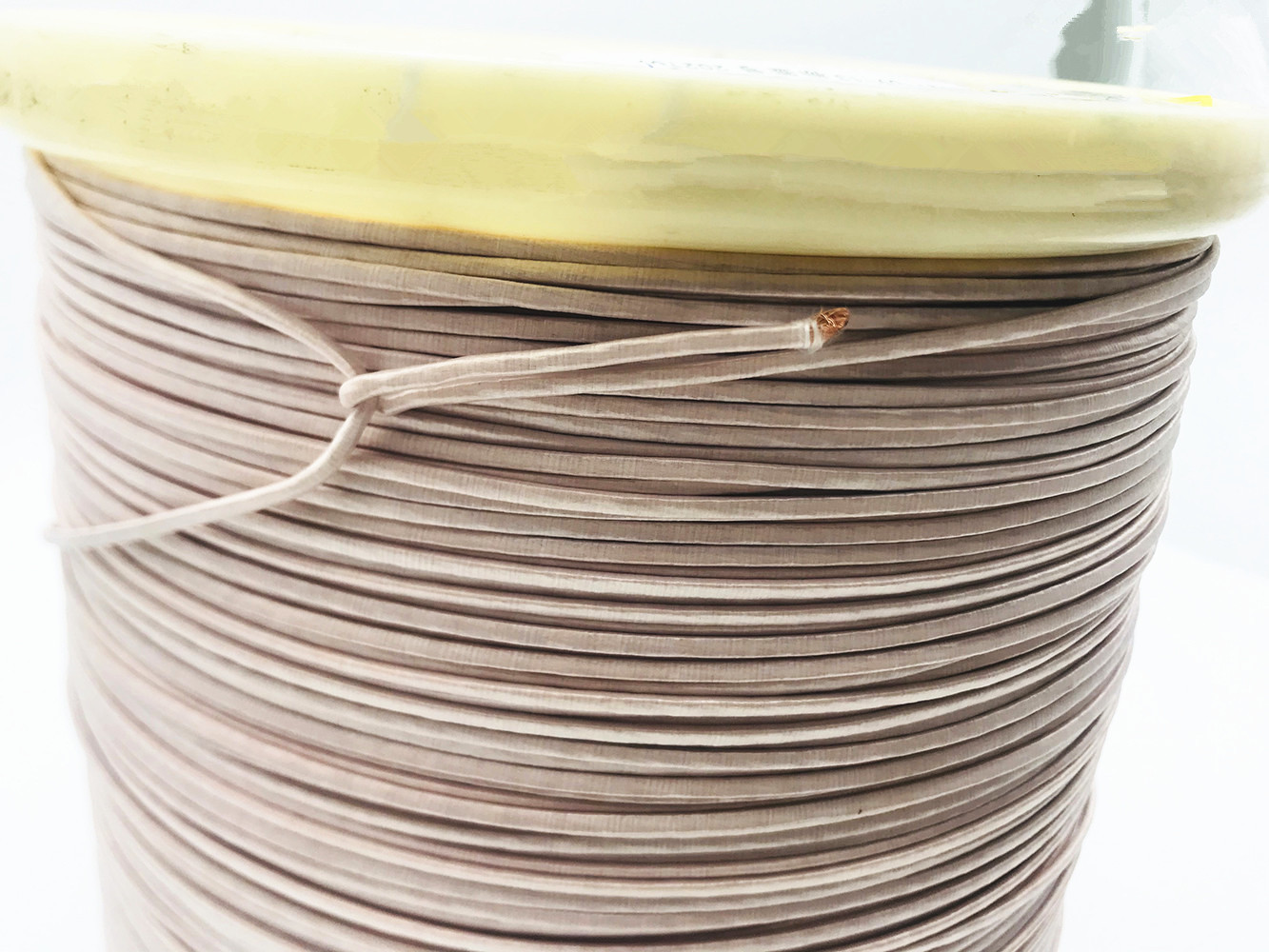

Customised Ustc Litz Wire High Frequency 0.10mm * 75 Silk Covered

Basic Information

Place of Origin:	China
Brand Name:	Rvyuan
Certification:	IEC/NEMA/JIS/RoHS/ISO
Model Number:	Copper litz wire

Minimum Order Quantity:	20kg
Price:	Negotiation
Packaging Details:	Spool with carton
Delivery Time:	2-15 workding days
Payment Terms:	Negotiation
Supply Ability:	Satisfy your demand

Get Best Price Contact Now

Detail Information

Name:	Customized High Frequency 0.10mm * 75 USTC Silk Covered Litz Wire	Certification:	ISO9001/ISO14001/UL/SGS
Diameter:	0.1mm	Standard:	GB/T5013.3/IEC60245-3:1994
Conductor:	Copper	Insulation:	Enamel
Rated Temperature:	155/180	Key Word:	Copper Litz Wire
No. Of Strands:	75
Highlight:	high frequency ustc litz wire , 0.10 mm ustc litz wire , ustc wire 0.10 mm

Product Description

Custom Factory Price Silk covered Copper Wire Litz Wire For Motors & Electrical Appliances

High frequency litz wire served with natural silk, polyester or nylon is characterized by an increase in mechanical performance and excellent dimensional stability. The precise serving quality guarantees a high degree of flexibility and prevents splicing during the process of cutting the litz wire and therefore allows for optimal contacting.

UDTC is a double layer silk covered litz wire that bring you better winding experience

Name	Customized High Frequency 0.10mm * 75 USTC Silk covered Litz Wire
Key word	USTC Copper litz wire
Insulationh	Enamel, polyster cover
Thermal rating	155degree
Diameter of the enameled copper wire	0.1mm
Number of strands	75
Type	Silk covered litz wire

NO.	Characteristics	Technical requests	Test Results	Conclusion
1	Single wire Inner diameter	0.10±0.003	0.098-0.10	OK
2	Single wire outer diameter	MAX 1.29	1.10-1.14	OK
3	Structure(Number/ Single wire inner diameter )	0.10/75	0.10/75	OK
4	direction	right	right	OK
5	Strands	75	75	OK
6	Twist Pitch	27±3mm	27±3mm	OK
7	Breakdown Voltage	min 1100V	3100V	OK
8	Immersion tin test	390±5℃ 7S	OK	OK
9	Pin Hole	≤40/6m	7	OK
10	Package	According to requirement	OK	OK
Remark: The product meet the requirement of RoHS			Conclusion: Approved

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

Customised Ustc Litz Wire High Frequency 0.10mm * 75 Silk Covered 0

Customised Ustc Litz Wire High Frequency 0.10mm * 75 Silk Covered 1

Customised Ustc Litz Wire High Frequency 0.10mm * 75 Silk Covered 2

Customised Ustc Litz Wire High Frequency 0.10mm * 75 Silk Covered 3
