| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | Copper litz wire |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Name: | 0.04mm - 0.3mm Silk Covered Double Layer High Frequency Litz Wire | Certification: | ISO9001/ISO14001/UL/SGS |
|---|---|---|---|
| Diameter: | 0.05mm | Standard: | GB/T5013.3/IEC60245-3:1994 |
| Conductor: | Copper | Insulation: | Enamel |
| Rated Temperature: | 155/180 | Key Word: | Copper Litz Wire |
| No. Of Strands: | 130 | ||
| Highlight: | 0.3mm ustc litz wire,double layer ustc litz wire,0.04mm ustc wire |
||

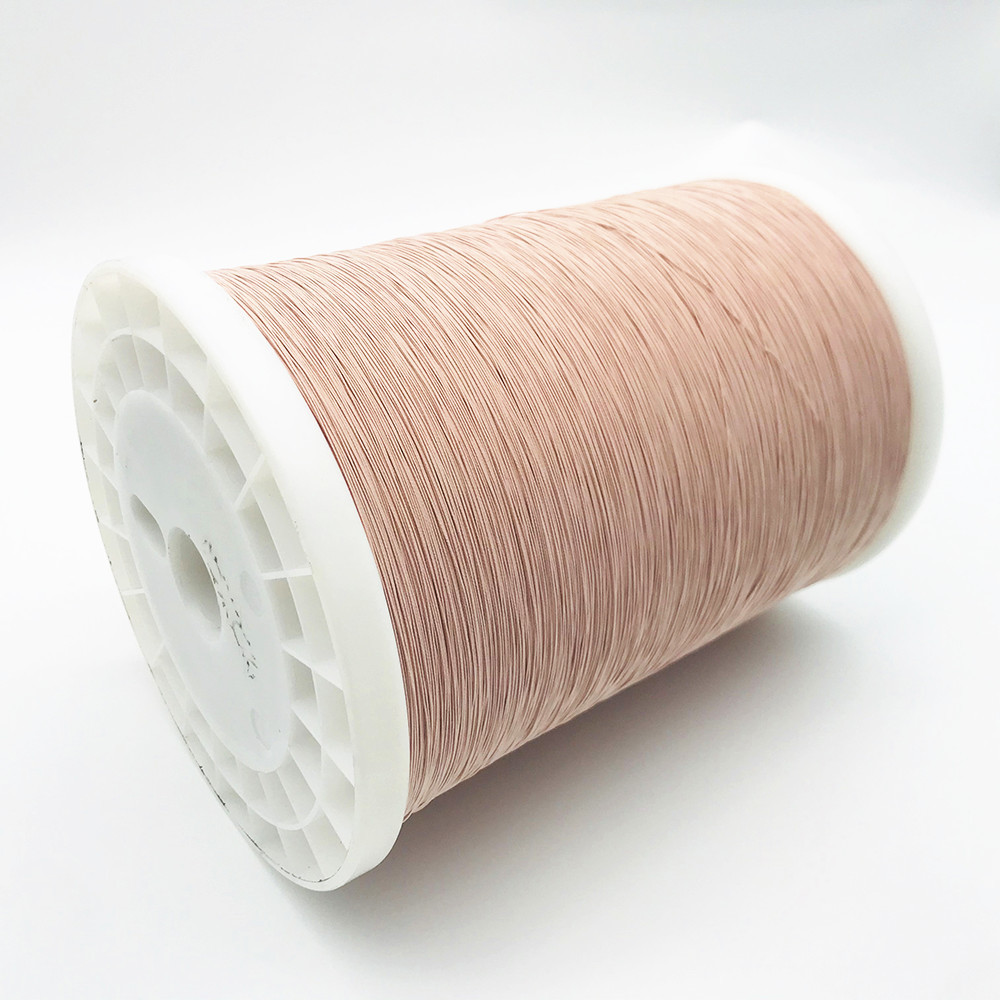

0.04mm - 0.3mm Silk Covered Double Layer High Frequency Litz Wire
High frequency litz wire is used in transformers and chokes to reduce the power losses that occur due to the eddy current and reduce the skin effect. Operating frequency determines the litz wire parameters and defines the diameter of a single wire. The higher operating frequency of inductive components, the smaller diameter of a single wire.
|
Name |
0.04mm - 0.3mm Silk Covered Double Layer High Frequency Litz Wire |
|
Key word |
Copper litz wire |
|
Insulationh |
Enamel, polyster cover |
|
Thermal rating |
155degree |
|
Diameter of the enameled copper wire |
0.05mm |
|
Number of strands |
130 |
|
Type |
Silk covered litz wire |
