| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.08mm * 42 |
| Minimum Order Quantity: | 20Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | Negotiation |
| Product: | Silk Covered Litz Wire | Feature: | Self Bonding Silk Covered Litz Wire |
|---|---|---|---|
| Individual Wire Diameter: | 0.08mm | No. Of Strands: | 42 |
| Thermal Grade: | 155 | Jacket: | Dacron/Nylon |
| Highlight: | stranded copper litz wire,0.08mm copper litz wire,nylon covered stranded copper wire |
||

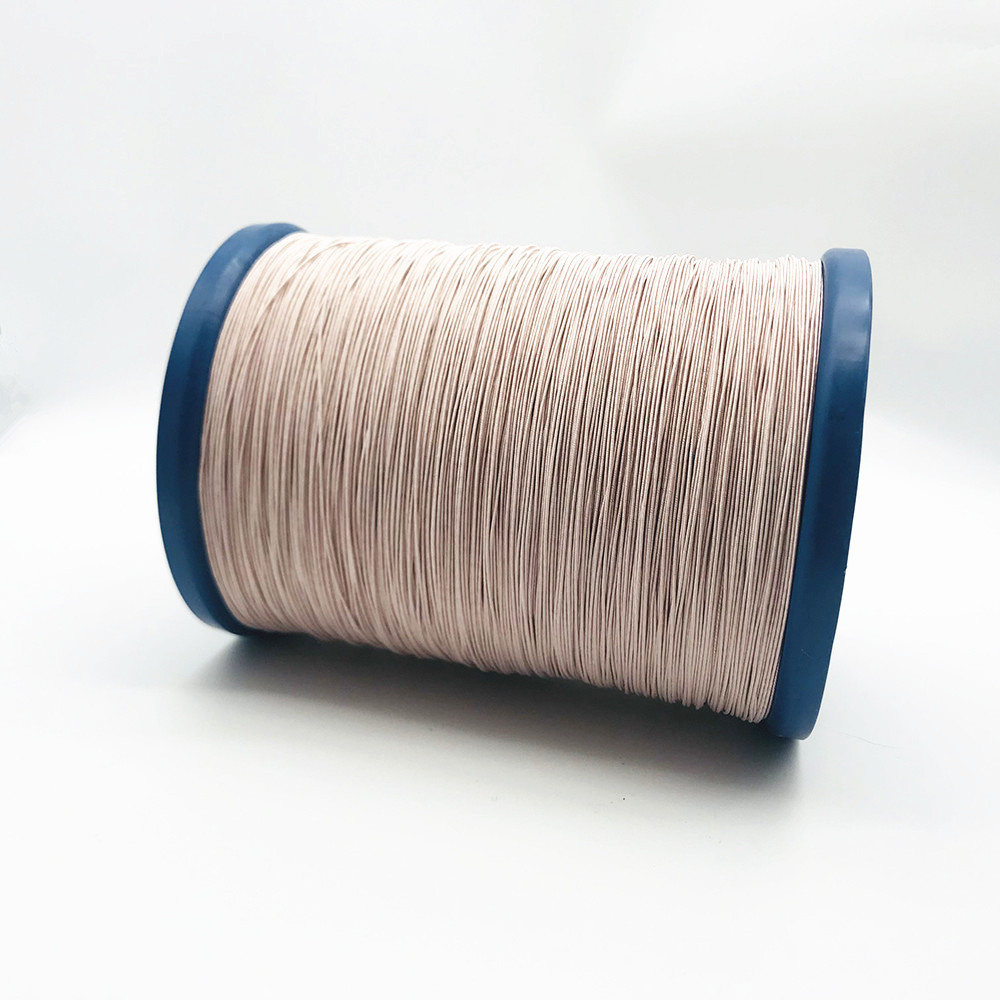

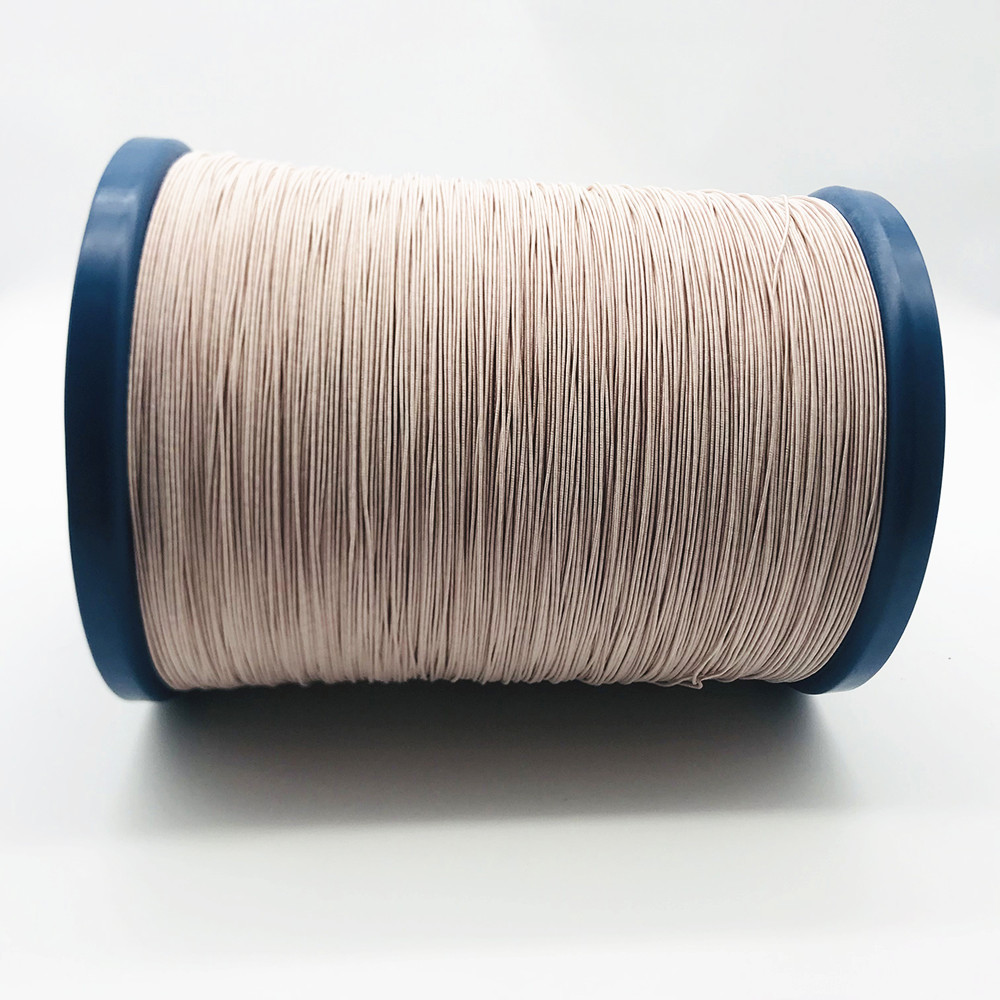

USTC155 0.08mm * 42 Stranded Copper Wire Dacron / Nylon Covered Litz Wire
Litz wire employs a stranded wire with individually insulated conductors (forming abundle). Our factory can customize various types of Litz wire, which is one of our company's main products and best-selling products,including silk covered wire, Mylar wire, etc.
|
Item |
Technical requriement |
Test result |
|
|
Conductor overall diameter(mm) |
0.087-0.103 |
0.090 |
0.093 |
|
Conductor diamter (mm) |
0.08±0.003 |
0.078 |
0.080 |
|
Overall diamter(mm) |
Max. 0.83 |
0.67 |
0.71 |
|
Pitch (mm) |
27±3 |
√ |
√ |
|
Resistance (Ω/m at20℃) |
Max.0.08988 |
0.0820 |
0.0817 |
|
Breakdown voltage |
Min.1100 |
2800 |
3100 |
|
Max pin holes faults/6m |
Max.35 |
7 |
4 |
