| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.07mm * 50 |
| Minimum Order Quantity: | 20kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Product Name: | Silk Covered Litz Wire | No. Of Strands: | 50 |
|---|---|---|---|
| Single Wire Diameter: | 0.07mm | Voltage: | 1500V Min. |
| Thermal Grade: | 155 | Port: | Tianjin |
| Highlight: | USTC Stranded Fine Copper Wire,Silk Covered Fine Copper Wire,0.07mmx50 Fine Copper Wire |
||

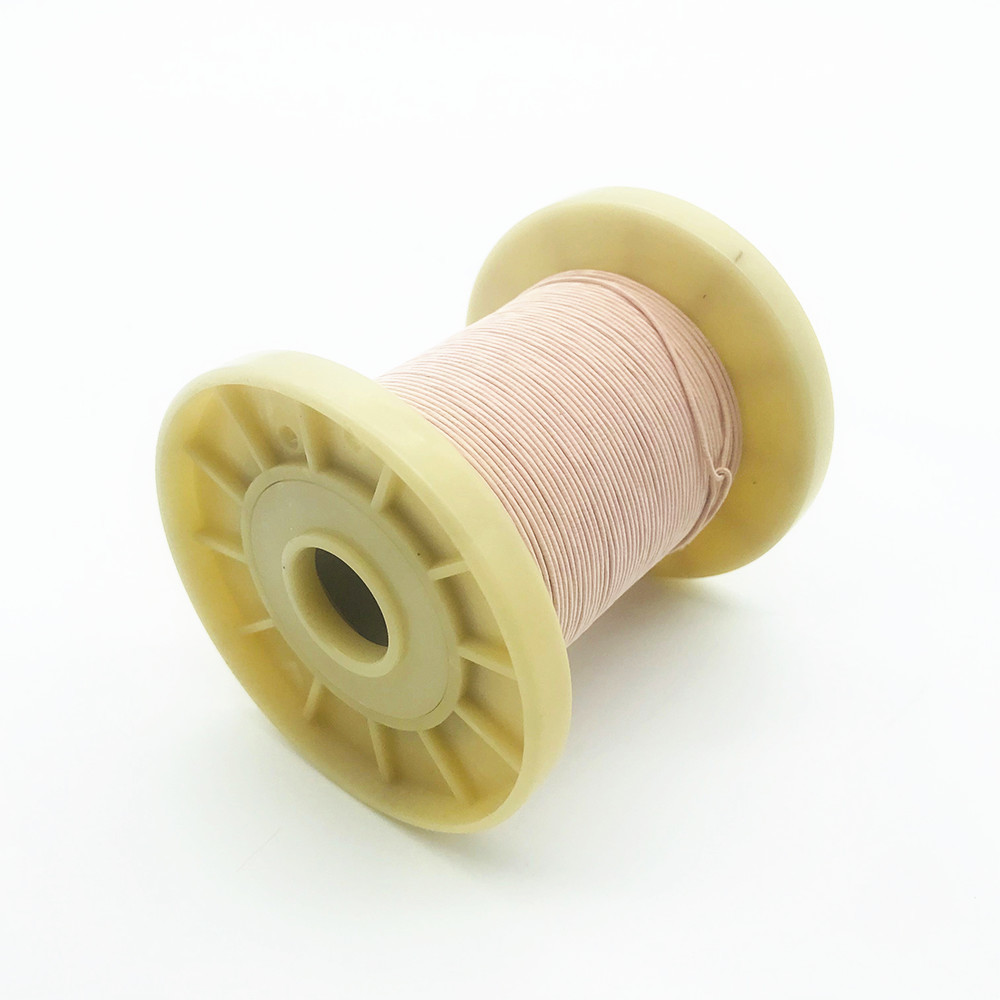

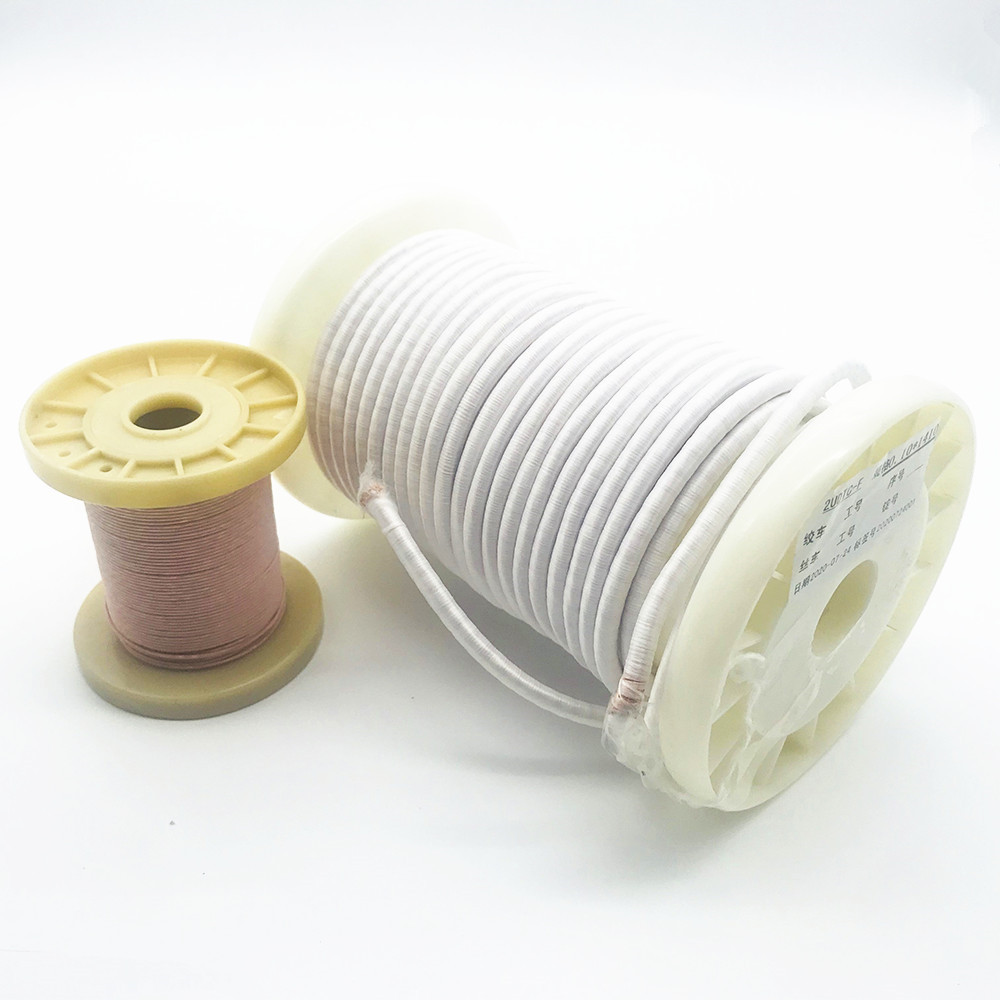

0.07mm * 50 Strands Silk Covered Litz Wire USTC Stranded Copper Litz Wire
Litz wire employs a stranded wire with individually insulated conductors (forming a bundle). The covering with silk can improve the winding efficiency, especially at high speed.
| Test report: 0.05mm x 660 strands | Standard | Sample |
| Overall diameter of single wire | 0.082-0.093mm | 0.084-0.089mm |
| Overall diameter | Max. 0.88mm | 0.68mm |
| Pitch | 14±2 | √ |
| Max resistance(Ω/Km at 20℃) | Max. 0.0998 | 0.0883 |
| Mini breakdown voltage | Min.950 | 2200 |
| Max pin holes fault/6m | Max.35 | 6 |
