| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | UL/ROHS/ICE/ISO9001/ISO14001 |
| Model Number: | 0.15mm x 640 |
| Minimum Order Quantity: | 10 Kilogram/Kilograms |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 10-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | 200 Ton/Tons per Month |
| Type: | Insulated | Insulation Material: | UEW/Ployester |
|---|---|---|---|
| Breakdown Voltage: | 2700V | Strands: | 640 |
| Twist Pictch: | 3-70 | Thermal Class: | 155 |
| Highlight: | winding copper litz wire,enamelled copper litz wire,litz enamel coated copper wire |
||

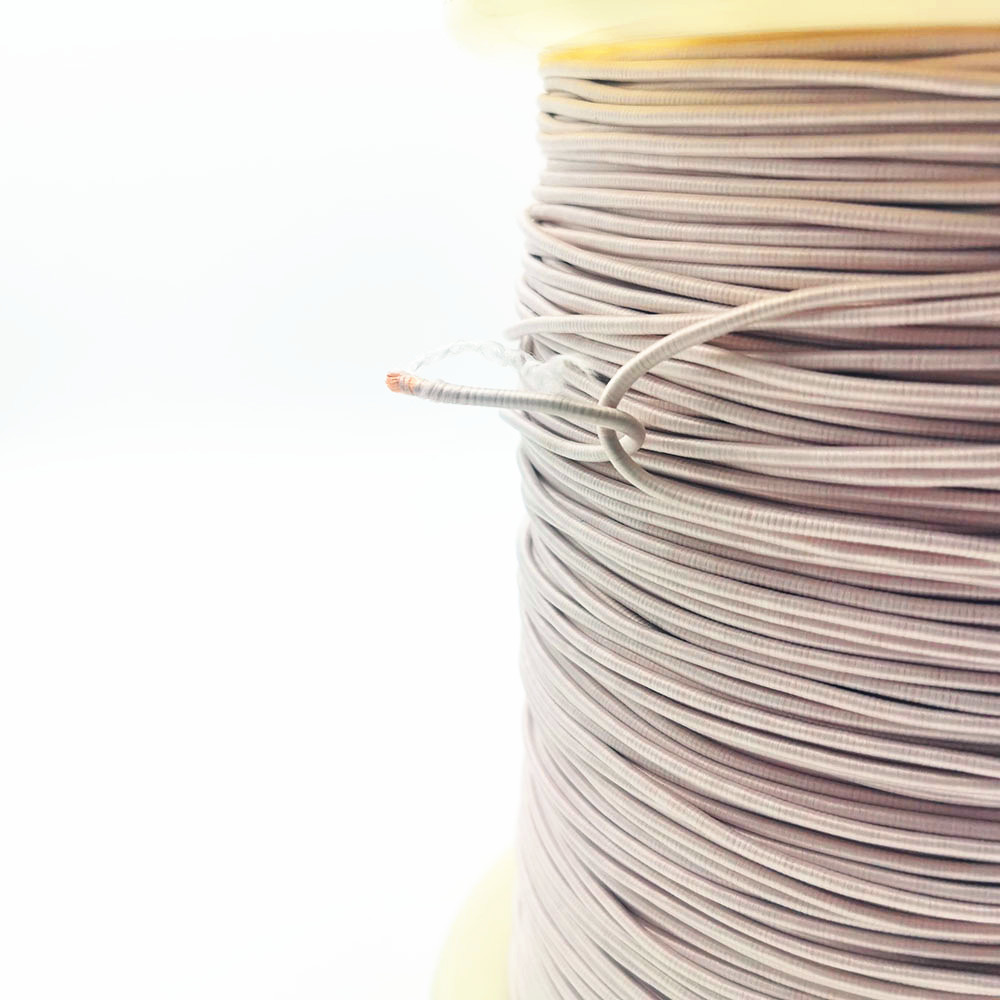

0.15MM X 640 STRANDS USTC LITZ WIRE ENAMELED COPPER MAGNET LITZ WIRE FOR WINDING
What is USTC wire? It is insulation wire covered with one layer or multi layer insulating fiber (nylon, polyester fiber, natural silk and adhesive silk) on the surface of single enameled wire or stranded wire.USTC wire is a special type of wire used in electronics. The wire is designed to reduce the skin effect and proximity effect losses in conductors. It consists of many thin wires, individually coated with an insulating film and twisted or woven together, following a carefully prescribed pattern often involving several levels (groups of twisted wires are twisted together, etc.).The size range we can make is 0.03-0.8mm, and strands number is 2-4000.
| Characteristics | Technical requests | Test Results | Conclusion | |||
| 1 | Inner diameter | 0.15±0.003 mm | 0.15mm | OK | ||
| 2 | Thickness of coating | ≥ 0.012mm | 0.065 | OK | ||
| 3 | Outer diameter | ≤ 0.177mm | 0.163 | OK | ||
| 4 | Twist direction | S/Z | S | OK | ||
| 5 | Strands | 640 | 640 | OK | ||
| 6 | Twist Pitch | 20.5±3 mm | 20.6 | OK | ||
| 7 | Breakdown Voltage | 1300V | 2700V | OK | ||
| 8 | Conductor Resistance | ≤ 1.66Ω/km | 1.34 | OK | ||
| 9 | Solderability | YES | YES | OK | ||
| 10 | Pinhole | ≤640PCS/5m | 17pcs | OK | ||
|
Remark:
The product meet the requirement of RoHS |
Conclusion: Approved |
|||||
