| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Product Name: | Litz Wire For Wireless Charger | Insulation: | UEW With Silk |
|---|---|---|---|
| Size: | 0.04-0.5mm | Color: | White |
| Material: | Copper | Thermal Class: | 130-180 |
| Certificates: | ROHS/UL/SGS/ISO9001:2008 | Breakdown Voltage: | 3KV |
| Highlight: | served litz wire,soldering litz wire |
||

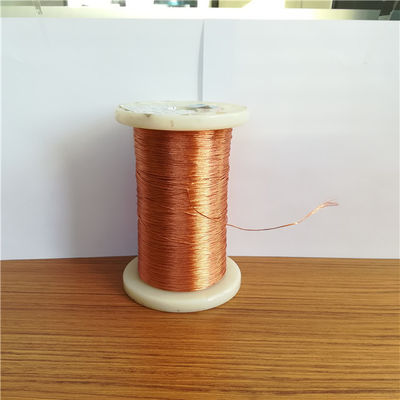

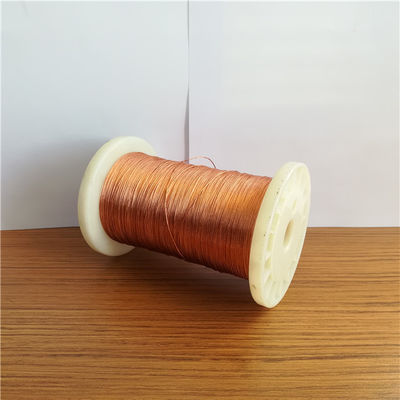

UL certificated 0.1mm self bonding high frequency litz wire for wireless charger
Self bonding litz wire for multimedia applications are increasingly equipped with wireless charging devices. our wire has been developed to meet the needs of these specific charging systems. This self-bonding litz wire combines excellent bond strength with good windability, fast soldering and very good hot air bonding characteristics.
Features and benefits:
1.Excellent bond strengths achieved by hot air bondind
2.High winding speed
3.Solderable without pre-stripping insulation
4.Environment-friendly process automation due to elimination of solvents
5.Thin-walled overcoat possible for small coils
| Characteristics | Technical requests | Test Results | Conclusion | ||||
| Sample 1 | Sample 2 | Sample 3 | |||||
| 1 | Surface | Good | OK | OK | OK | OK | |
| 2 | Breakdown Voltage | ≥ 1.1 KV | 1.5 | 1.6 | 1.7 | ||
| 3 | Enamel Continuity | ≤ 45 hole/5m | 12 | 9 | 6 | ||
| 4 | Outer diameter | ≤ 0.116 mm | 0.111 | 0.113 | 0.115 | ||
| 5 | Inner diameter | 0.10±0.003 mm | 0.097 | 0.097 | 0.098 | ||
| 6 |
Conductor Resistance (20℃ Ω/Km) |
———— | |||||
| 7 | Pitch | 22 mm | OK | OK | OK | ||
| 8 | Direction | Right | OK | OK | OK | ||
| 9 | Solderability | ———— | OK | OK | OK | ||
| Remark: |
Conclusion: Approved |
||||||
| Audit by | Tested by | ||||||
| Pan Lihong | |||||||
Application:
Coil winding of large oil-immersed power transformer and reactor, large capacity dry type transformers.
Certificates:
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
