| Product Name: | Taped High Frequency Litz Wire | Breakdown Voltage: | 5KV |
|---|---|---|---|
| Size: | 0.1*60 | Strands: | 10-3000 |
| Certificate: | UL/SGS | Conductor: | Copper |
| Highlight: | served litz wire,soldering litz wire |
||

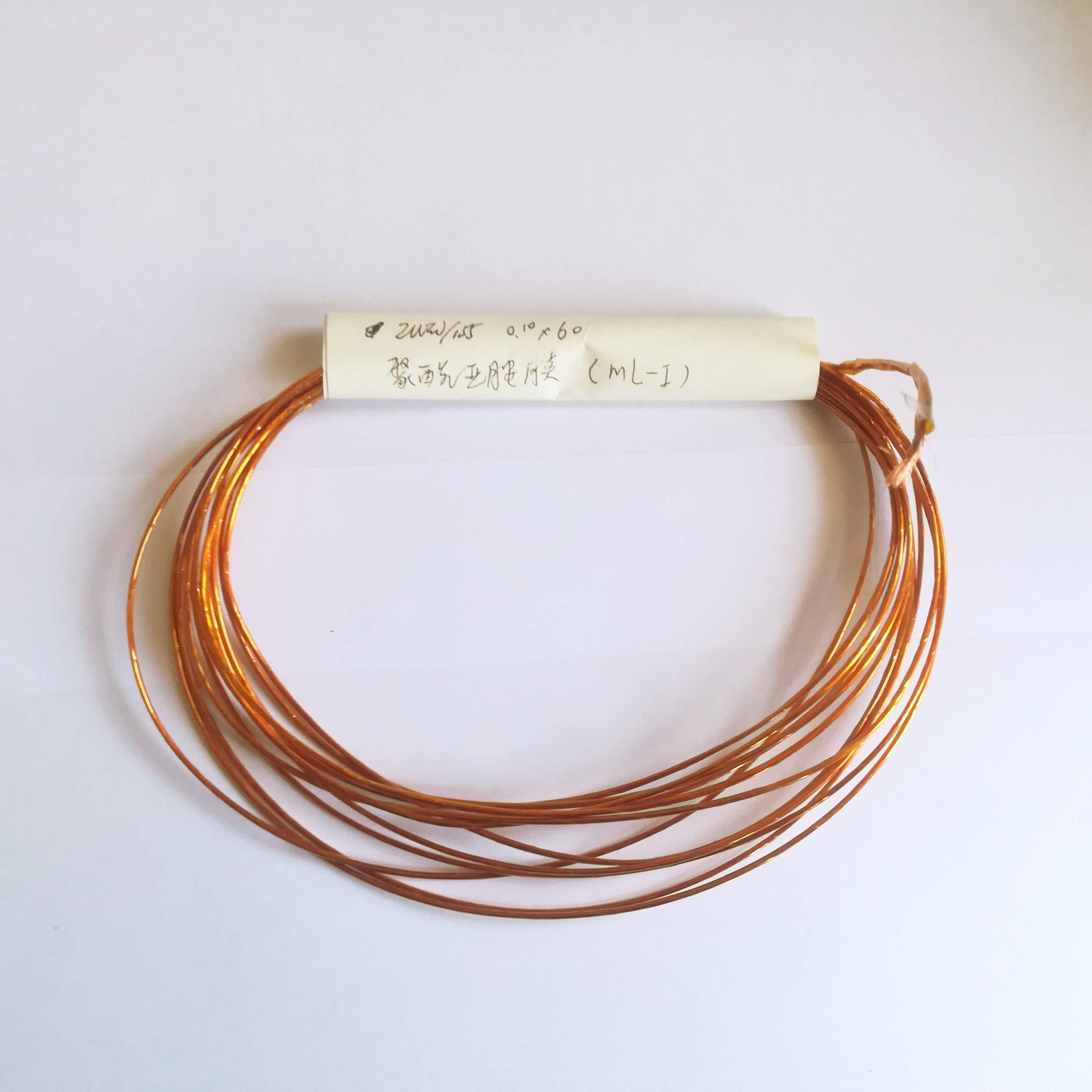

0.1*60 class 180 taped Polyimide film covered high frequency litz copper wire
Taped high frequency litz wire constructions are mainly suitable for applications requiring a high break down voltage. Taping gives litz wire improved capability to withstand flexing and mechanical stress. Self-adhesive tape material increases protection against re-opening during and after manufacturing processes and thus secures the compliance with defined creepage distance.
Features and benefits
| Variants | Dielectric strength | Flexibility | Splicing | Contacting |
| Standard | high | very good | good | very good |
| Thermally Sealed | elevated | medium | very good | very good |
| Self-Adhesive | very high | good | very good | good |
Specification:
| Characteristics | Technical requests | Test Results | Conclusion | |||||
| Sample 1 | Sample 2 | Sample 3 | ||||||
| 1 | Surface | Good | OK | OK | OK | OK | ||
| 2 | Breakdown Voltage | ≥ 3.0 KV | 5 | 5.3 | 6.2 | OK | ||
| 3 | Pinhole Test | ≤ 20 hole/6m | 3 | 2 | 2 | OK | ||
| 4 | Outer diameter | ≤ 0.116 mm | 0.111 | 0.112 | 0.113 | OK | ||
| 5 | Inner diameter | 0.10±0.003 mm | 0.097 | 0.098 | 0.098 | OK | ||
| 6 | Thickness of film(+0.002mm) | 0.025 mm | 0.025 | 0.025 | 0.025 | OK | ||
| 7 | Width of film(,,) | 8-15 mm | 10 | 10 | 10 | OK | ||
| 8 | Direction | Bunch | Left | OK | OK | OK | OK | |
| Film cover | Left | OK | OK | OK | OK | |||
| 9 | Conductor Resistance | ≤ 40.87 Ω/km | 31.69 | 32.01 | 32.08 | OK | ||
| 10 | Overall Diameter | ≤ 1.25 mm | 0.874 | 0.896 | 0.902 | OK | ||
| Remark: | Conclusion: | |||||||
| Approved | ||||||||
| Audit by | Tested by | |||||||
| Pan Lihong | ||||||||
Certificates:
ISO 9001-2000, ISO TS 16949, ISO 14001-2004,
UL Approved, RoHS Directive Met
1. Transformer Insulation Wire of Power Supplier & AC/DC Adapters,
2. Mobile Phone Battery Chargers and Ring Coil & Choke & PC Computer,
3. Netebook Computer,
4. Digital Camera Insulation wire.
