| Place of Origin: | China |
|---|---|
| Brand Name: | Rvyuan |
| Certification: | IEC/NEMA/JIS/RoHS/ISO |
| Model Number: | 180 Degree |
| Minimum Order Quantity: | Different types with differet MOQ |
| Price: | Negotiation |
| Packaging Details: | Spool with carton |
| Delivery Time: | 2-15 workding days |
| Payment Terms: | Negotiation |
| Supply Ability: | Satisfy your demand |
| Thermal Rating: | 155/180/220 | Stock: | Available |
|---|---|---|---|
| Insulation: | UEW | Color: | Nature Or Customer Demand |
| Size: | 0.012-4.5mm | Conductor: | Copper |
| Highlight: | electric motor copper wire,electric motor winding wire |
||

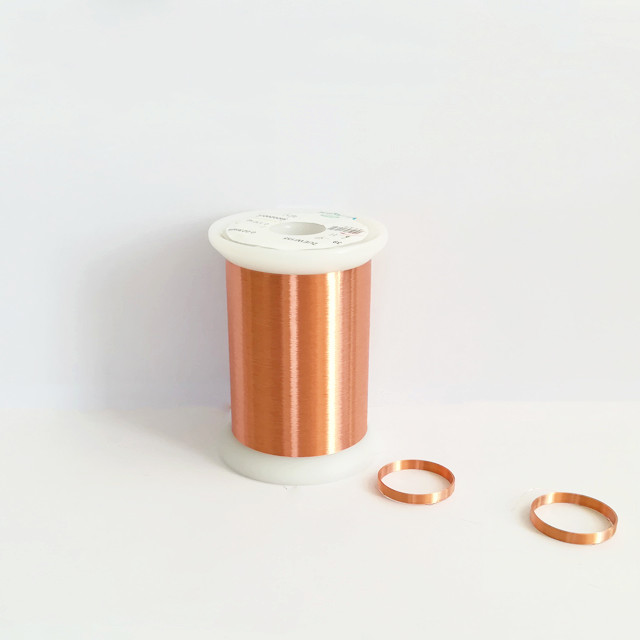

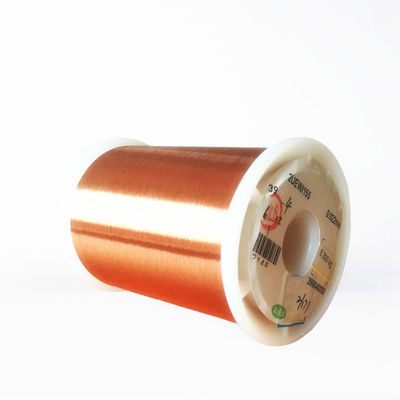

180 DEGRESS MULTIPLE SIZE VOICE COIL WIRE ENAMELED MAGNET WIRE FOR WINDING
Enamelled Copper Magnet wire are used as the wire in electromagnets that use electricity to generate a magnetic field. Enameled Rectangular or Flat Aluminium Wire and Enameled Rectangular or Flat Copper Wire /Strip is wrapped in a tight coil. When an electric charge is applied, the wires generate the magnetic field. Flat Enamelled Aluminium Wire and Flat Enamelled copper wire have a wide variety of applications, including use in automobiles, motors, transformers and industrial machineries. Round Enameled Aluminium Wire and Round Enameled copper wire are also found in smaller devices and home appliances, such as computers, televisions etc.
FEATURES
High resistance to heat shock
High temperature
Good performace at softening breakdown
Suitable for high-speed automated routing
Able to be direct weld, with no pinhole
Resistive to high frequency, wearing, refrigerants and electronics corona
High breakdown voltage, small dielectric loss angle
| Nominal Diameter mm | Tolerance | Min. Increase of Diameter | Max. Overall Diameter | Breakdown Voltage | Elongation | Pin Hole | Electrical Resistance | ||
| mm | ≥ V | ≥% | ≤Default/5m | Ω/km (20℃) | |||||
| Mandrel Method | Twisted Method | Min. | Max. | ||||||
| 0.05 | ±0.002 | 0.011 | 0.067 | 800 | ---- | 12 | 3 | 7981 | 9528 |
| 0.055 | ±0.002 | 0.011 | 0.073 | 800 | ---- | 12 | 3 | 6642 | 7815 |
| 0.06 | ±0.002 | 0.013 | 0.08 | 1000 | ---- | 14 | 3 | 5614 | 6526 |
| 0.065 | ±0.002 | 0.014 | 0.086 | 1000 | ---- | 14 | 3 | 4807 | 5531 |
| 0.07 | ±0.002 | 0.015 | 0.091 | 1000 | ---- | 15 | 3 | 4163 | 4747 |
| 0.075 | ±0.002 | 0.015 | 0.096 | 1100 | ---- | 15 | 3 | 3640 | 4119 |
| 0.08 | ±0.002 | 0.015 | 0.103 | 1100 | ---- | 16 | 3 | 3209 | 3608 |
| 0.085 | ±0.002 | 0.017 | 0.11 | 1200 | ---- | 16 | 3 | 2851 | 3187 |
| 0.09 | ±0.002 | 0.017 | 0.114 | 1200 | ---- | 16 | 3 | 2550 | 2835 |
| 0.095 | ±0.002 | 0.017 | 0.12 | 1200 | ---- | 17 | 3 | 2294 | 2538 |
| 0.1 | ±0.002 | 0.017 | 0.127 | 1200 | ---- | 17 | 3 | 2074 | 2286 |
| 0.11 | ±0.002 | 0.017 | 0.139 | ---- | 2800 | 17 | 3 | 1720 | 1882 |
| 0.12 | ±0.002 | 0.017 | 0.149 | ---- | 2800 | 17 | 3 | 1450 | 1577 |
| 0.13 | ±0.002 | 0.019 | 0.159 | ---- | 2800 | 18 | 3 | 1239 | 1340 |
| 0.14 | ±0.002 | 0.019 | 0.171 | ---- | 3000 | 19 | 3 | 1070 | 1153 |
| 0.15 | ±0.002 | 0.019 | 0.181 | ---- | 3000 | 20 | 3 | 934.1 | 1002 |
| 0.16 | ±0.002 | 0.021 | 0.191 | ---- | 3000 | 21 | 3 | 822.3 | 879.4 |
