| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Custom CCA Wire 0.11mm Self Adhesive Copper Clad Aluminum Wire For AudioHigh End CCA Wire 0.11mm Copper Clad Aluminum Wire For Audio | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.1mm |
| Conductor Material: | CCA | Key Word: | High End CCA Wire 0.11mm Copper Clad Aluminum Wire For Audio |
| Highlight: | Audio CCA Wire,High End CCA Wire,0.11mm CCA Wire |
||

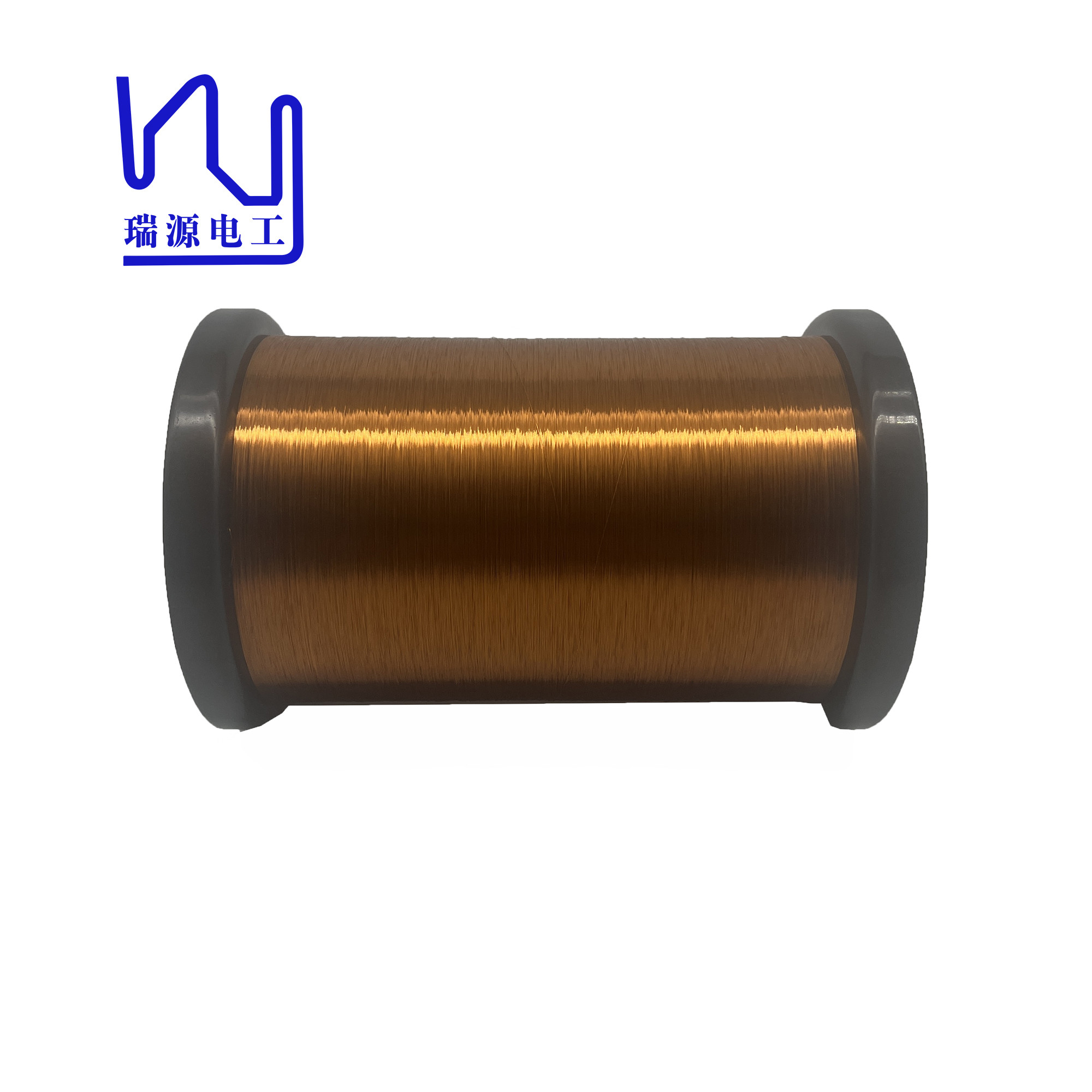

High End CCA Wire 0.11mm Copper Clad Aluminum Wire For Audio
This high-quality wire has a diameter of 0.11 mm and is designed to provide excellent performance in a variety of applications. Whether you are an audio industry professional or an enthusiast looking for a top-notch wiring solution, our CCA wire are the perfect choice.
| Test item |
Unit |
Standard value |
Test Result | ||
| Min. | Ave | Max | |||
| Appearance | mm | Smooth,coloury | Good | ||
| Conductor Diameter | mm | 0.110±0.002 | 0.110 | 0.110 | 0.110 |
| Insulation film thickness | mm | Max.0.137 | 0.1340 | 0.1345 | 0.1350 |
| Bonding film thickness | mm | Min.0.005 | 0.0100 | 0.0105 | 0.0110 |
| Continuity of covering | pcs | Max.60 | 0 | ||
| Elongation | % | Min 8 | 11 | 12 | 12 |
| Conductor Resistance 20℃ | Ω/km | Max.2820 | 2767 | 2768 | 2769 |
| Breakdown Voltage | V | Min. 2000 | 3968 | ||
|
Product |
High End CCA Wire 0.11mm Copper Clad Aluminum Wire For Audio |
|
Key word |
High End CCA Wire 0.11mm Copper Clad Aluminum Wire For Audio |
