| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 0.1mm |
| Minimum Order Quantity: | 10kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10Ton/week |
| Product Name: | Ultra Fine Self Bonding CCA Aluminum And Copper Round Copper Insulated Voice Coil | Thermal Rating: | 180 |
|---|---|---|---|
| Insulation Material: | Polyurethane | Diameter: | 0.1mm |
| Conductor Material: | CCA | Key Word: | Ultra Fine Self Bonding CCA Aluminum And Copper Round Copper Insulated Voice Coil |
| Highlight: | CCA Aluminum Voice Coil,Ultra Fine Voice Coil,Self Bonding Voice Coil |
||

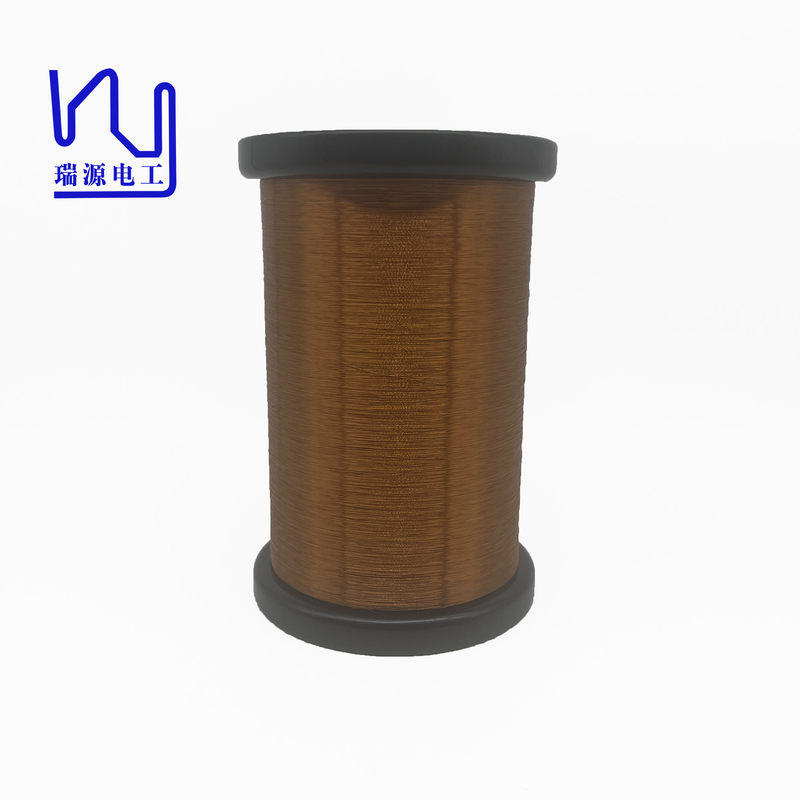

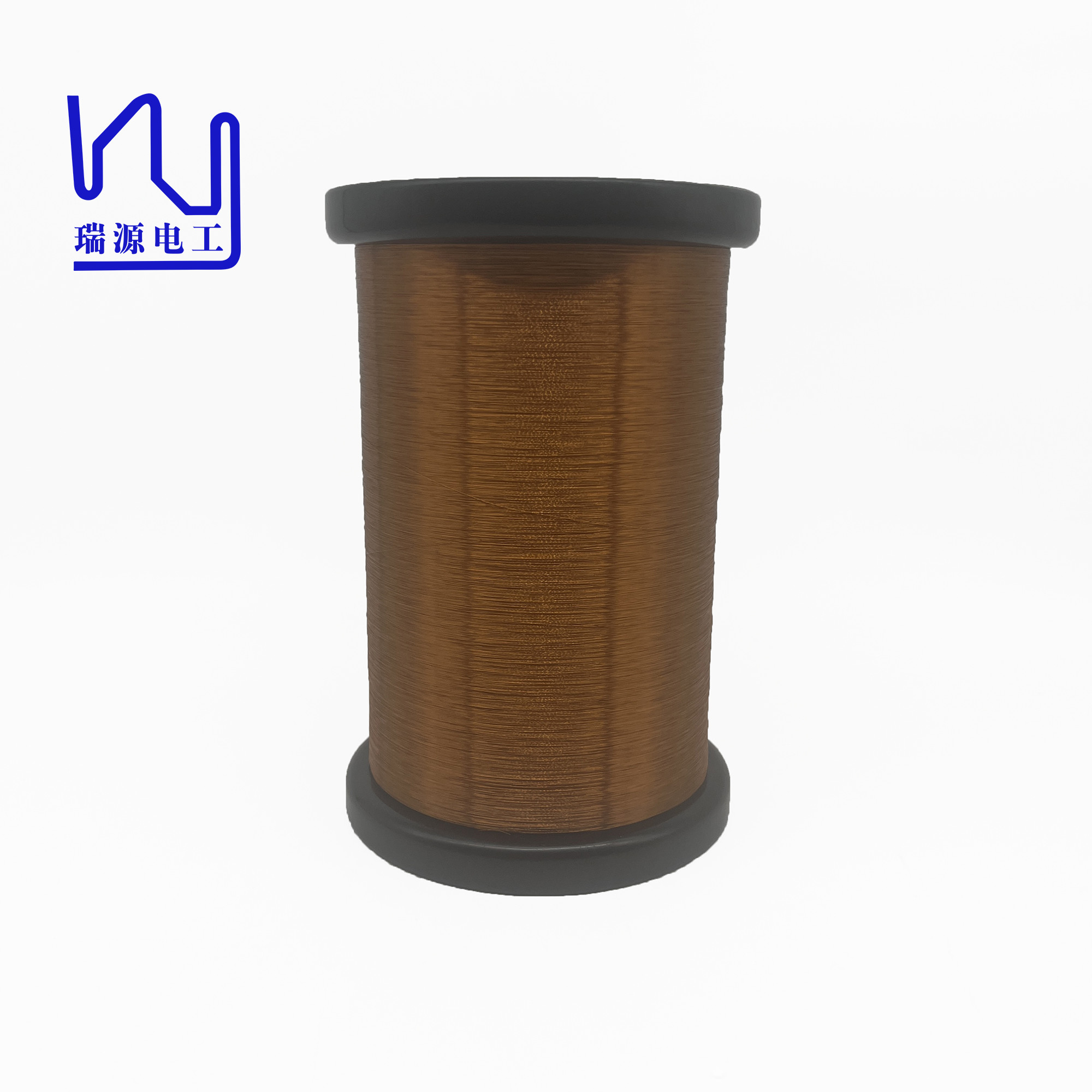

Ultra Fine Self Bonding CCA Aluminum and Copper Round Copper Insulated Voice Coil
Features:
1.Light weight. Only 50% of copper at the same length
2.Solderability
3.Good ductility and bending strength
4.High fidelity sound quality
Application:
1. Micro voice coil speakers
2. Microphones,
3. buzzer
4.HIFI stereos
|
Test item |
Unit |
Standard value |
Test Result |
||
|
Min. |
Ave |
Max |
|||
|
Appearance |
mm |
Smooth,coloury |
Good |
||
|
Conductor Diameter |
mm |
0.110±0.002 |
0.110 |
0.110 |
0.110 |
|
Insulation film thickness |
mm |
Max.0.137 |
0.1340 |
0.1345 |
0.1350 |
|
Bonding film thickness |
mm |
Min.0.005 |
0.0100 |
0.0105 |
0.0110 |
|
Continuity of covering |
pcs |
Max.60 |
0 |
||
|
Elongation |
% |
Min 8 |
11 |
12 |
12 |
|
Conductor Resistance 20℃ |
Ω/km |
Max.2820 |
2767 |
2768 |
2769 |
|
Breakdown Voltage |
V |
Min. 2000 |
3968 |
||
|
Product |
Top China ManufacturerSelf Bonding Copper Clad Aluminum CCA Wire for Speakers |
|
Key word |
Top China ManufacturerSelf Bonding Copper Clad Aluminum CCA Wire for Speakers |
