| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 42AWG |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | Custom 42 AWG Blue Color Poly Magnet Wire For Instrument Pickup | Insulation: | Poly Coated |
|---|---|---|---|
| Size: | 42AWG | Application: | Pickups |
| Quantity: | 2kg/roll | Key Word: | Custom 42 AWG Blue Color Poly Magnet Wire For Instrument Pickup |
| Highlight: | 42 AWG Poly Magnet Wire,blue Color Poly Magnet Wire,Instrument pickup Poly Magnet Wire |
||

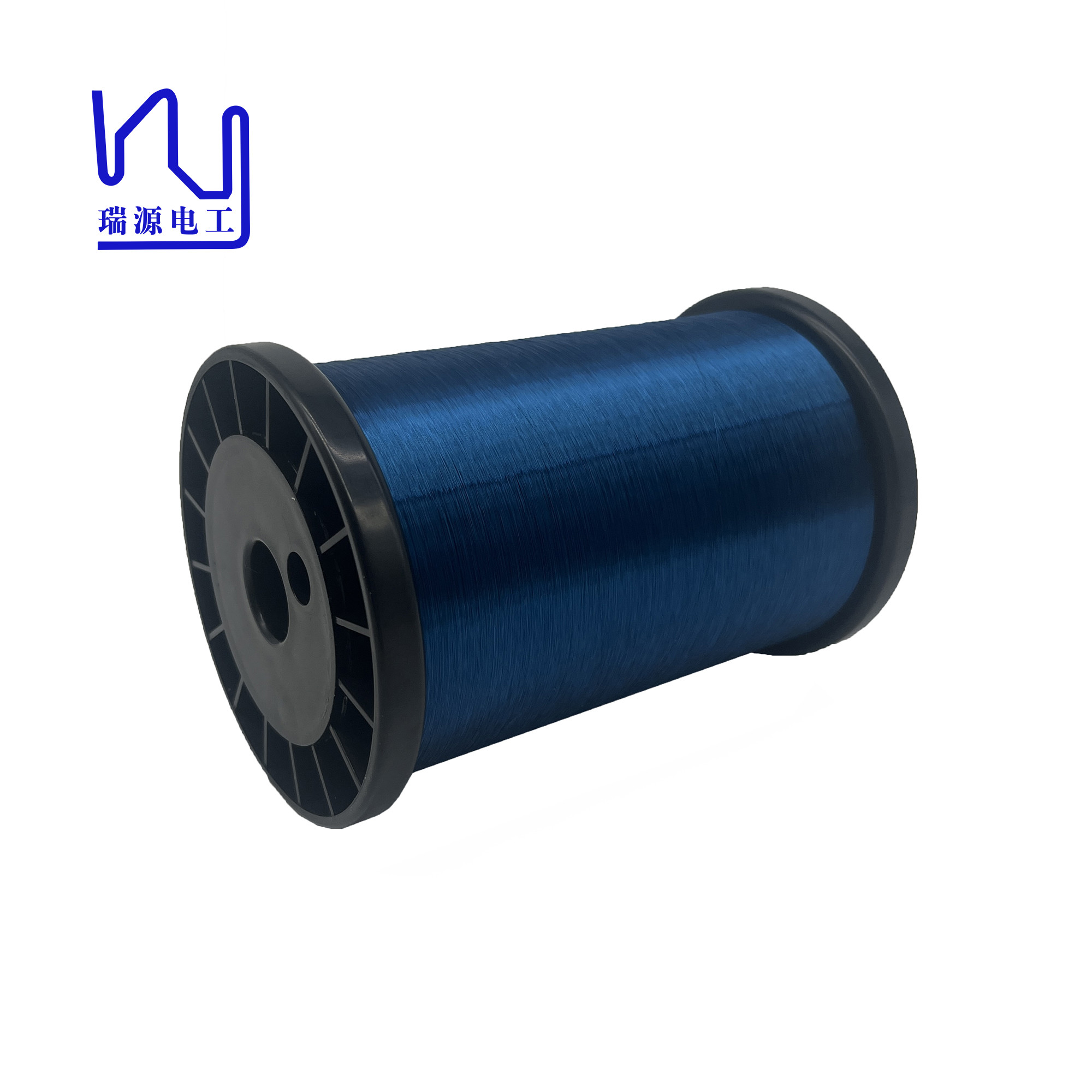

Custom 42 AWG blue Color Poly Magnet Wire For Instrument pickup
we mainly manufacture Plain Enamel, Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.
The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one
that’s most commonly used. But wire-types measuring from 41 to 44 AWG are all being used in the construction of guitar pickups.
|
Characteristics
|
Technical requests
|
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
