0.056mm Green Poly Coated Enameled Copper Wire Magnet Wire

Basic Information
Place of Origin: China
Brand Name: Ruiyuan
Certification: UL/ISO9001/ISO14001/RoHS/Reach
Model Number: 43AWG
Minimum Order Quantity: 2kg
Price: Negotiation
Packaging Details: Carton
Delivery Time: 2-15 days
Payment Terms: Negotiation
Supply Ability: 100Ton/week
Detail Information
Product Name: 0.056mm Green Poly Coated Enameled Copper Wire Magnet Wire Insulation: Poly Coated
Size: 43AWG Application: Guitar Pickups Coils
Quantity: 2kg/roll Key Word: 0.056mm Green Poly Coated Enameled Copper Wire Magnet Wire
Highlight:

Magnet Wire Enameled Copper Wire

,

0.056mm Enameled Copper Wire

,

Green Enameled Copper Wire


Product Description

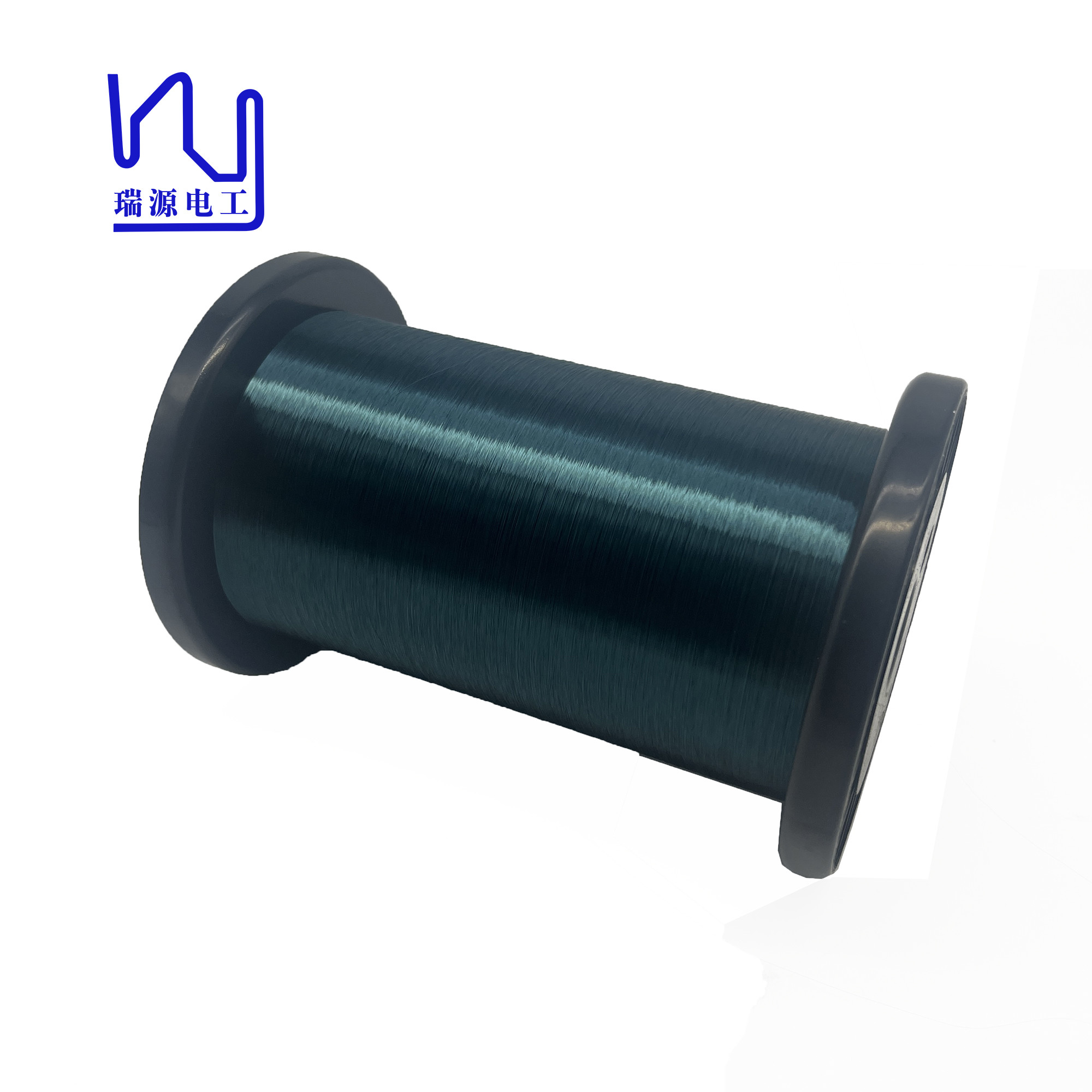

0.056mm Green Poly Coated Enameled Copper Wire Magnet Wire



In addition to great performance and customization options, our guitar pickup wire are also incredibly easy to use. The polye coating ensures the wire is flexible yet strong, making it easier to wrap and less likely to break. This is especially important when it comes to guitar pickup winding, where precision and consistency are key. Our wire has excellent tensile strength and elongation properties, which means you can achieve tight, even coils without the risk of the wire breaking or deforming.



43 AWG Poly-coated enameled copper wire

Item
Requirement
Test Data
Result
Apperance
Smooth and Clean
ok
OK
Conductor Diameter
0.056±0.002mm
0.056
OK
Thickness of Insualtion
≥0.011mm
0.015
OK
Overall Diameter
≤0.074mm
0.071
OK
DC Resistance
≤7.528Ω/m
6.947
OK
Elongation
≥12%
25.7
OK
