| Place of Origin: | China |
|---|---|
| Brand Name: | Ruiyuan |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Model Number: | 42AWG |
| Minimum Order Quantity: | 2kg |
| Price: | Negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 2-15 days |
| Payment Terms: | Negotiation |
| Supply Ability: | 100Ton/week |
| Product Name: | 0.063mm Poly Enameled Copper Wire Magnet Wire For Guitar Pickup | Insulation: | Poly Coated |
|---|---|---|---|
| Size: | 42AWG | Application: | Pickups |
| Quantity: | 1kg-2kg/roll | Key Word: | 0.063mm Poly Enameled Copper Wire Magnet Wire For Guitar Pickup |
| Color: | Green | ||
| Highlight: | Guitar Pickup Enameled Copper Wire,Magnet Wire For Guitar Pickup,0.063mm Enameled Copper Wire |
||

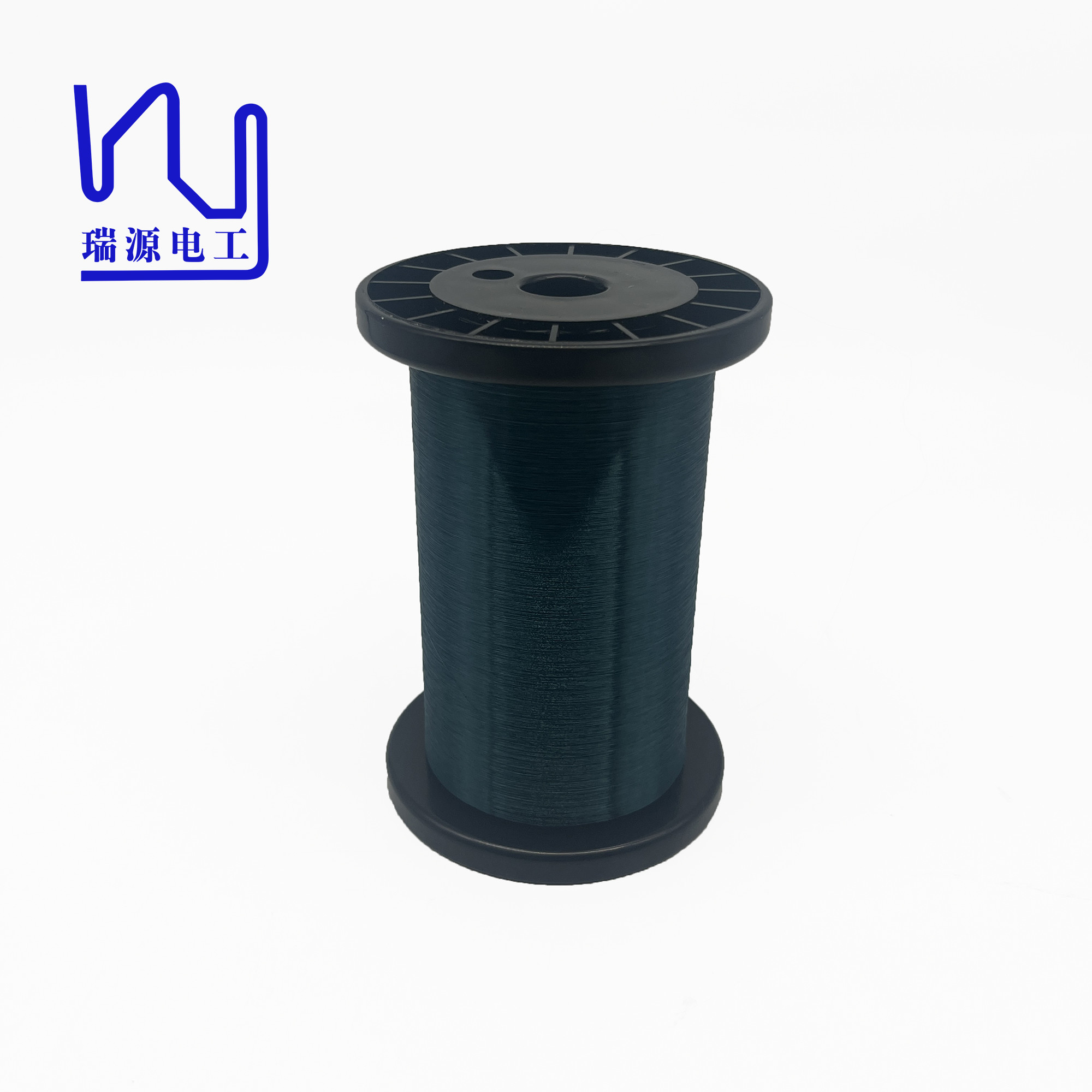

0.063mm Poly Enameled Copper Wire Magnet Wire For Guitar Pickup
Our poly coated wire is crafted to provide superior durability and conductivity, it come in convenient small spools ranging from 1kg to 2kg, making them easy to handle and ideal for both small and large projects.
|
Characteristics
|
Technical requests
|
Test Results |
|||
|
Sample 1 |
Sample 2 |
Sample 3 |
|||
|
Bare Wire Diameter |
0.063± |
0.001 |
0.063 |
0.063 |
0.063 |
|
Coating Thickness |
≥ 0.008mm |
0.0095 |
0.0096 |
0.0096 |
|
|
Overall Diameter |
≤ 0.074mm |
0.0725 |
0.0726 |
0.0727 |
|
|
Conductor Resistance |
5.4-5.65 |
5.51 |
5.52 |
5.53 |
|
|
Elongation |
≥ 15% |
23 |
24 |
24 |
|
